Except INTEGRA GS-R

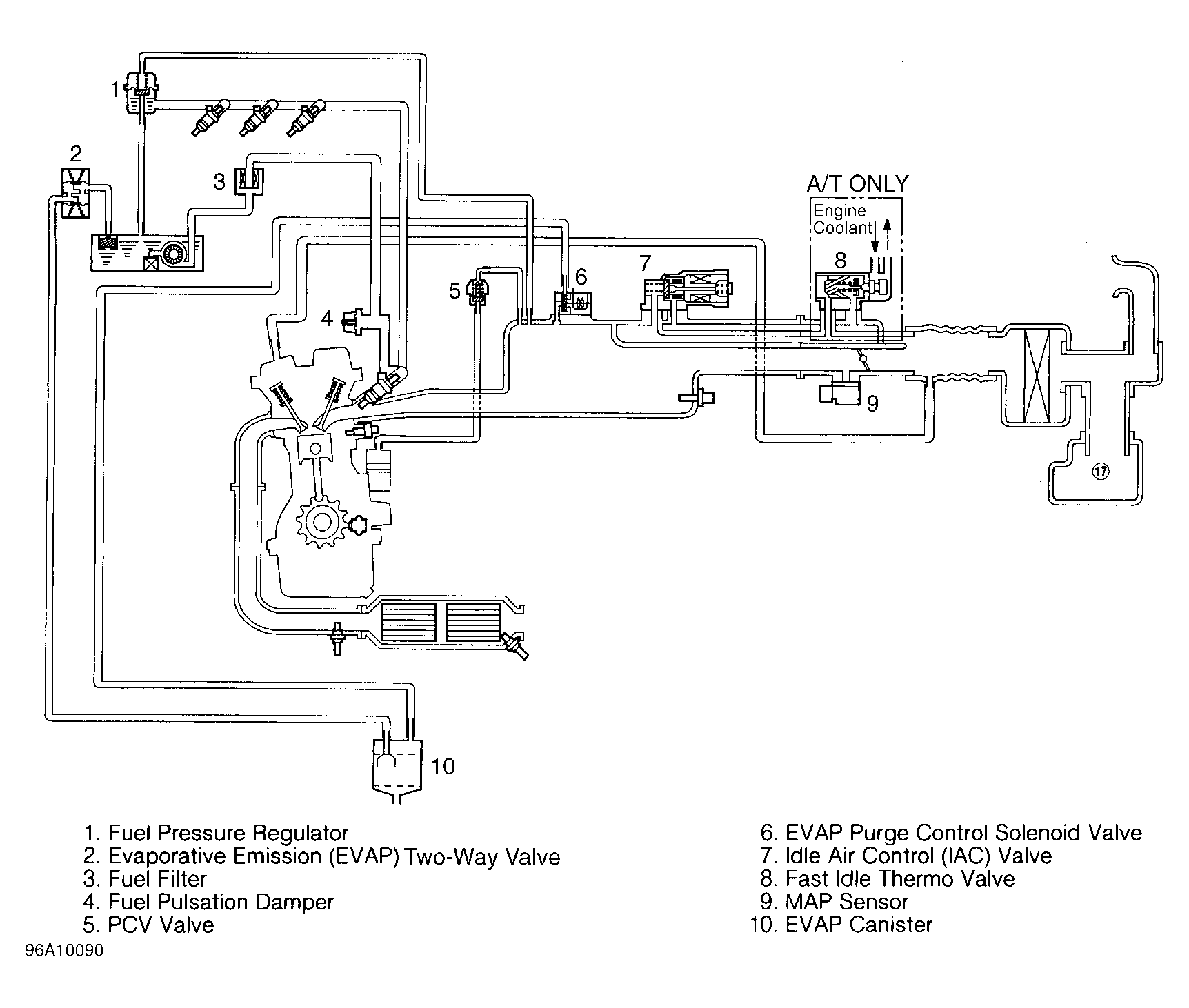

Fig 1: Vacuum Schematic

G96A10090

Courtesy of AMERICAN HONDA MOTOR CO., INC.

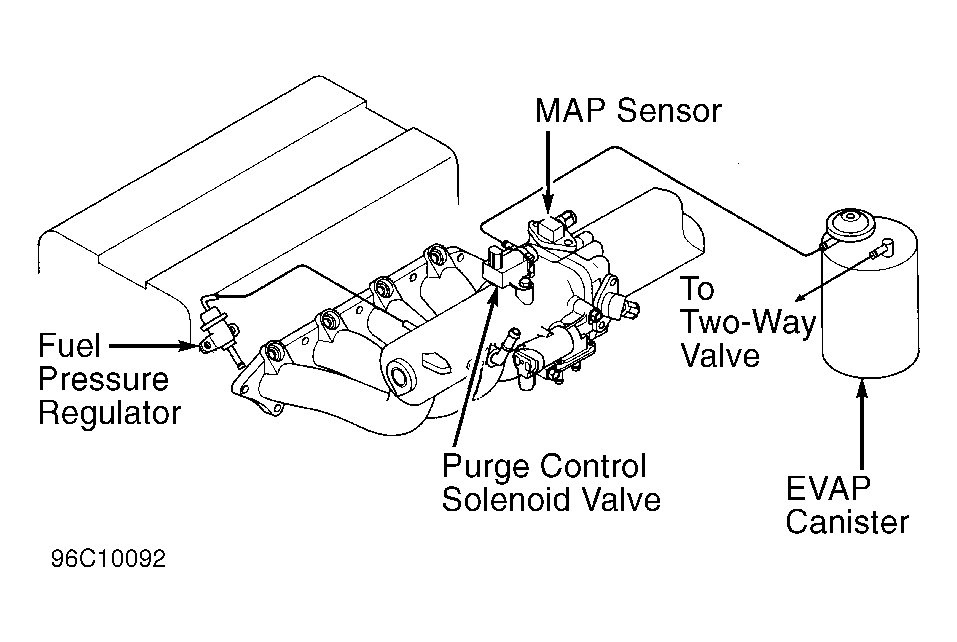

Fig 2: Vacuum Diagram

G96C10092

Courtesy of AMERICAN HONDA MOTOR CO., INC.
