Timing Belt: Removal

  1. Raise and support vehicle. Remove left front wheel and wheelwell splash shield. Remove power steering pump belt, A/C compressor belt and generator belt. Remove cruise control actuator. Remove right engine mount.

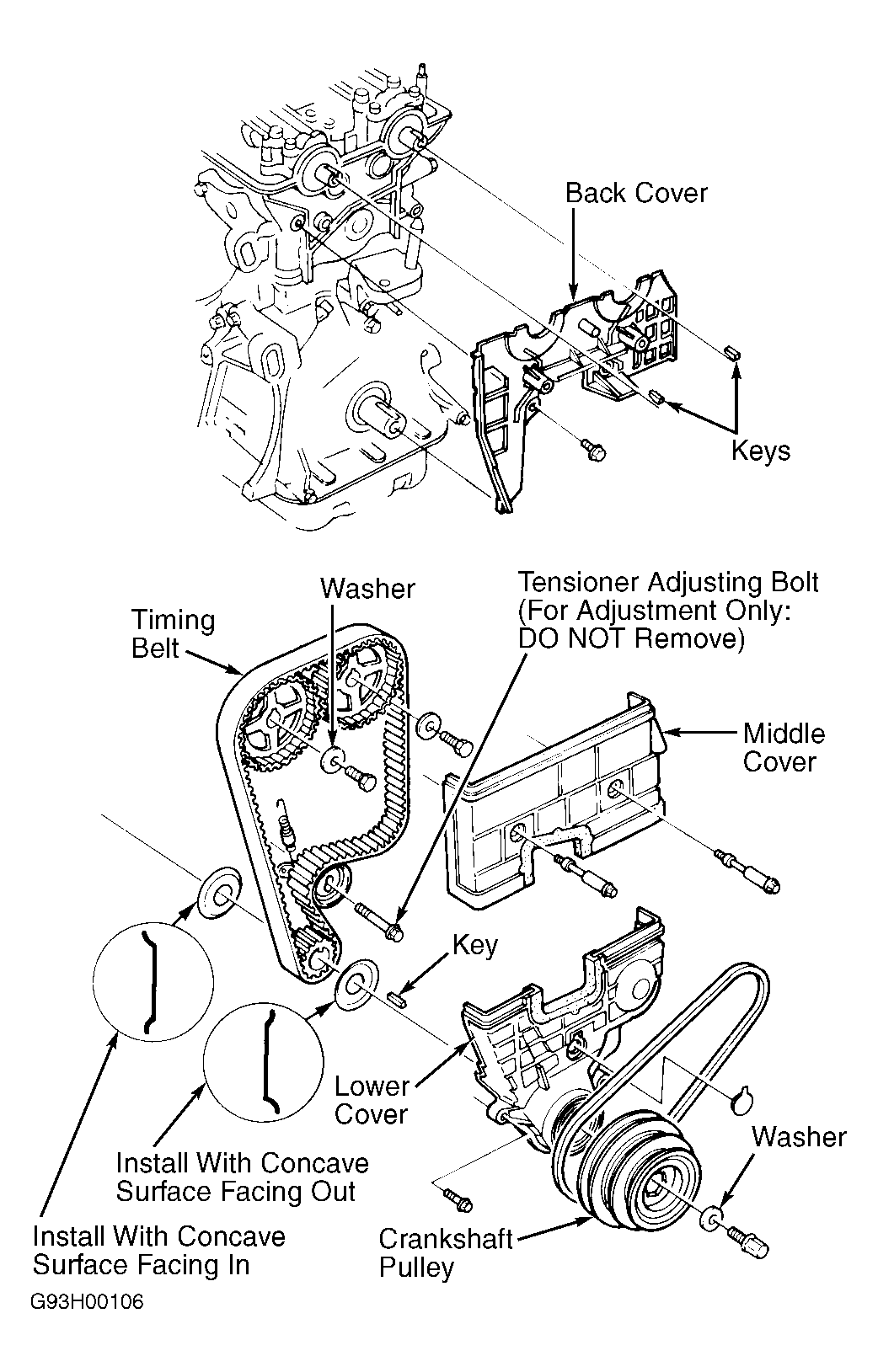

  2. Remove valve cover. Remove crankshaft pulley bolt and pulley. Remove middle and lower timing belt cover. See Figure. Loosen timing adjuster bolt 180 degrees. Push on timing belt tensioner to release tension from belt, then retighten adjuster bolt. Disengage timing belt from camshaft pulleys. See Figure.
