Power Mirror

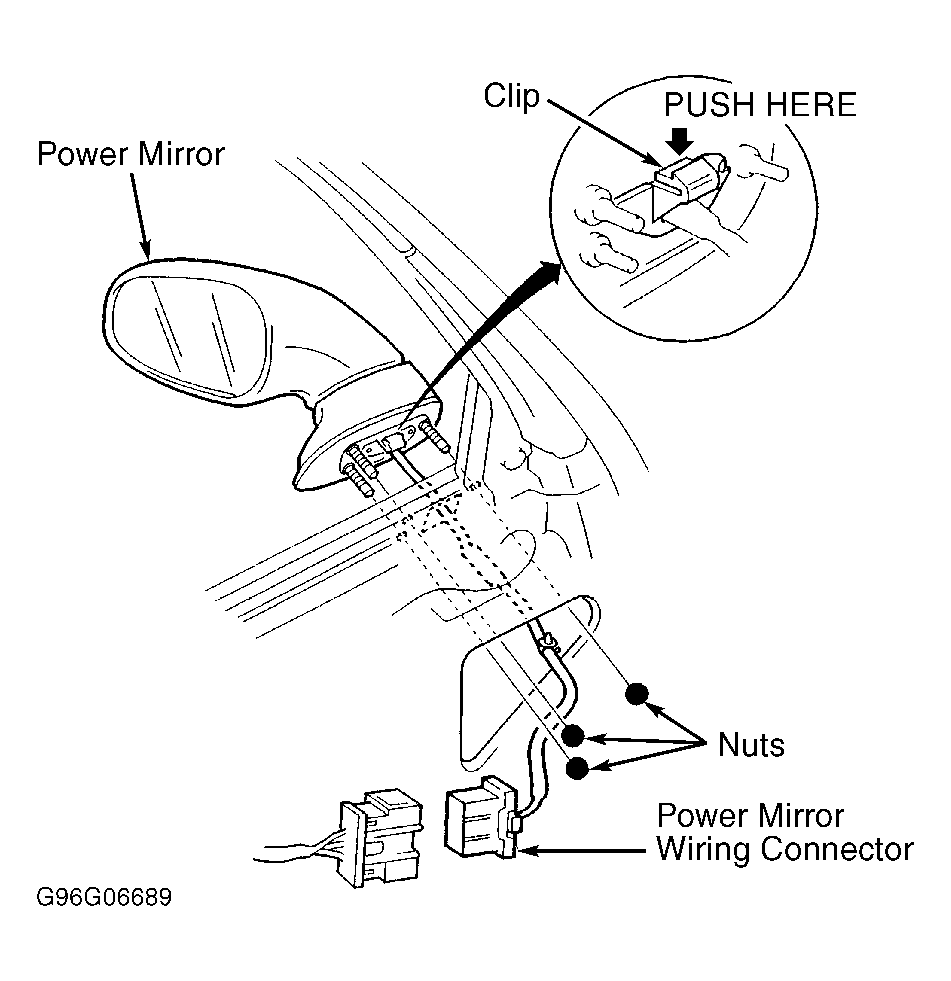

Raise door glass fully. Remove door panel and plastic cover as required. See DOOR PANEL . Disconnect power mirror wiring connector. Remove nuts holding mirror in place and remove mirror. See Fig 1 . To install, reverse removal procedure. Tighten power mirror nuts to 7.2 ft. lbs (9.8 N.m).
