DTC 3-7: TCS Control Valve Sensor Signal - TCV

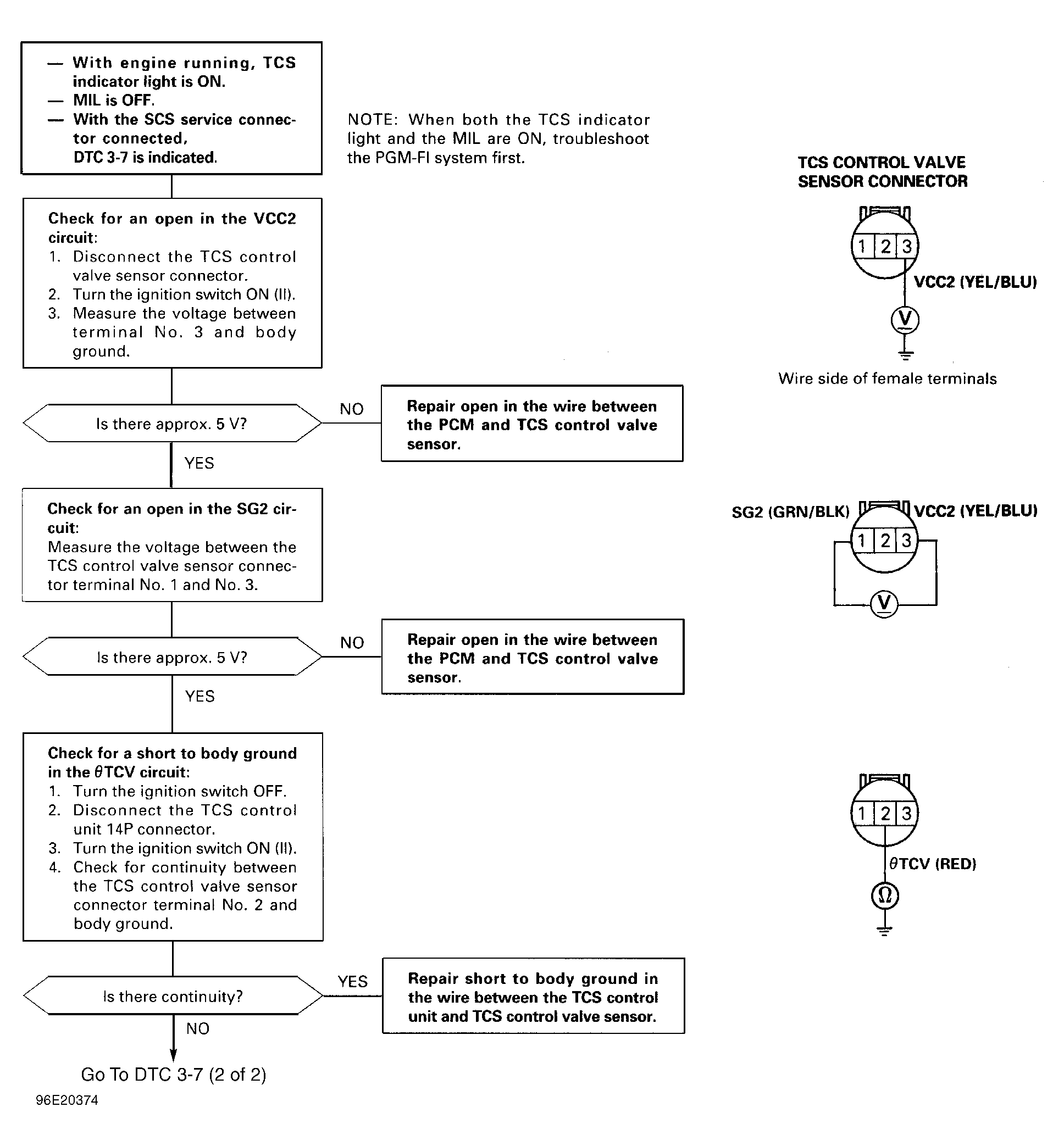

Fig 1: DTC 3-7: TCS Control Valve Sensor Signal (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

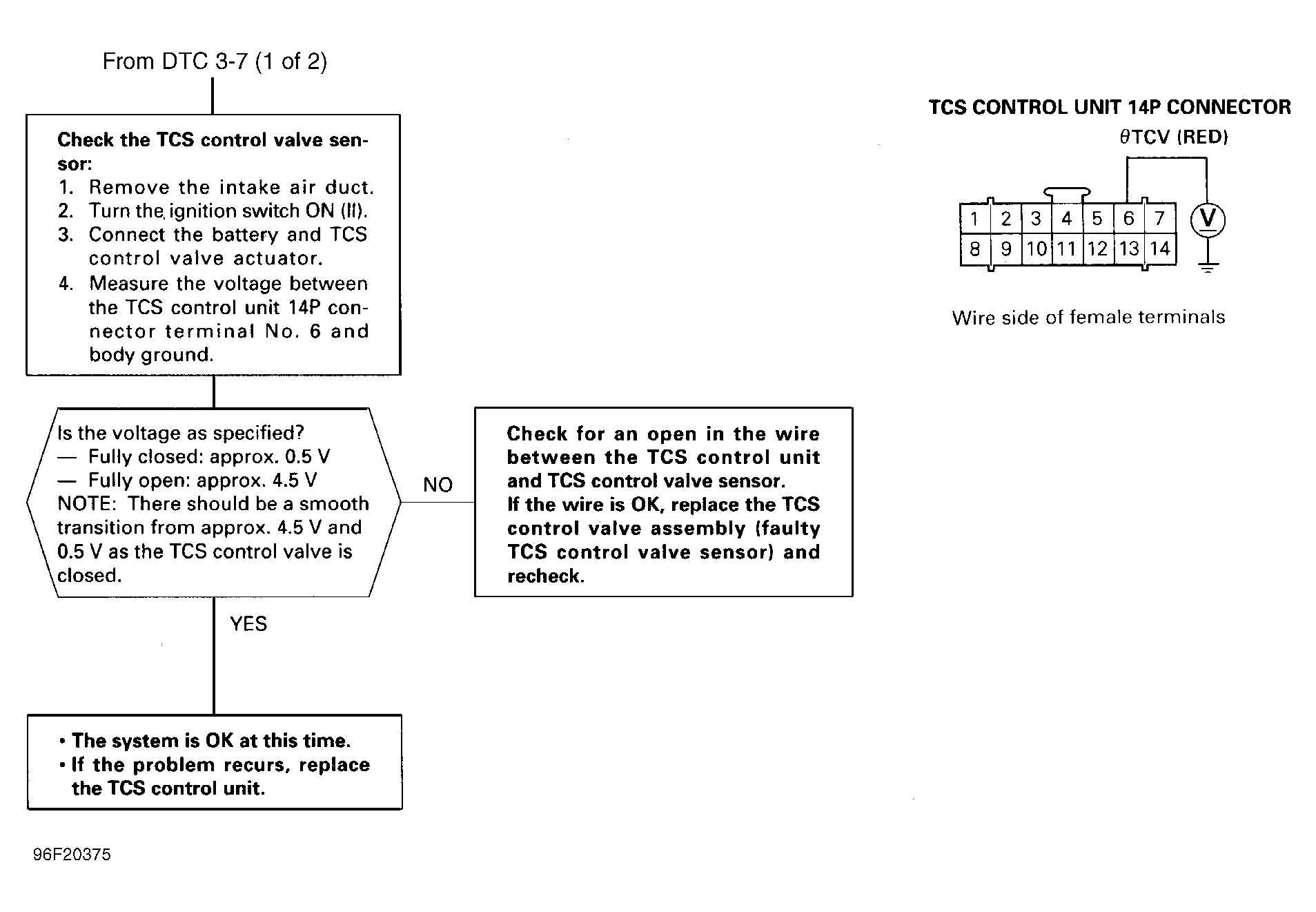

Fig 2: DTC 3-7: TCS Control Valve Sensor Signal (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
