DTC 8-2 - CPU Comparison
DTC 8-2 - CPU Comparison

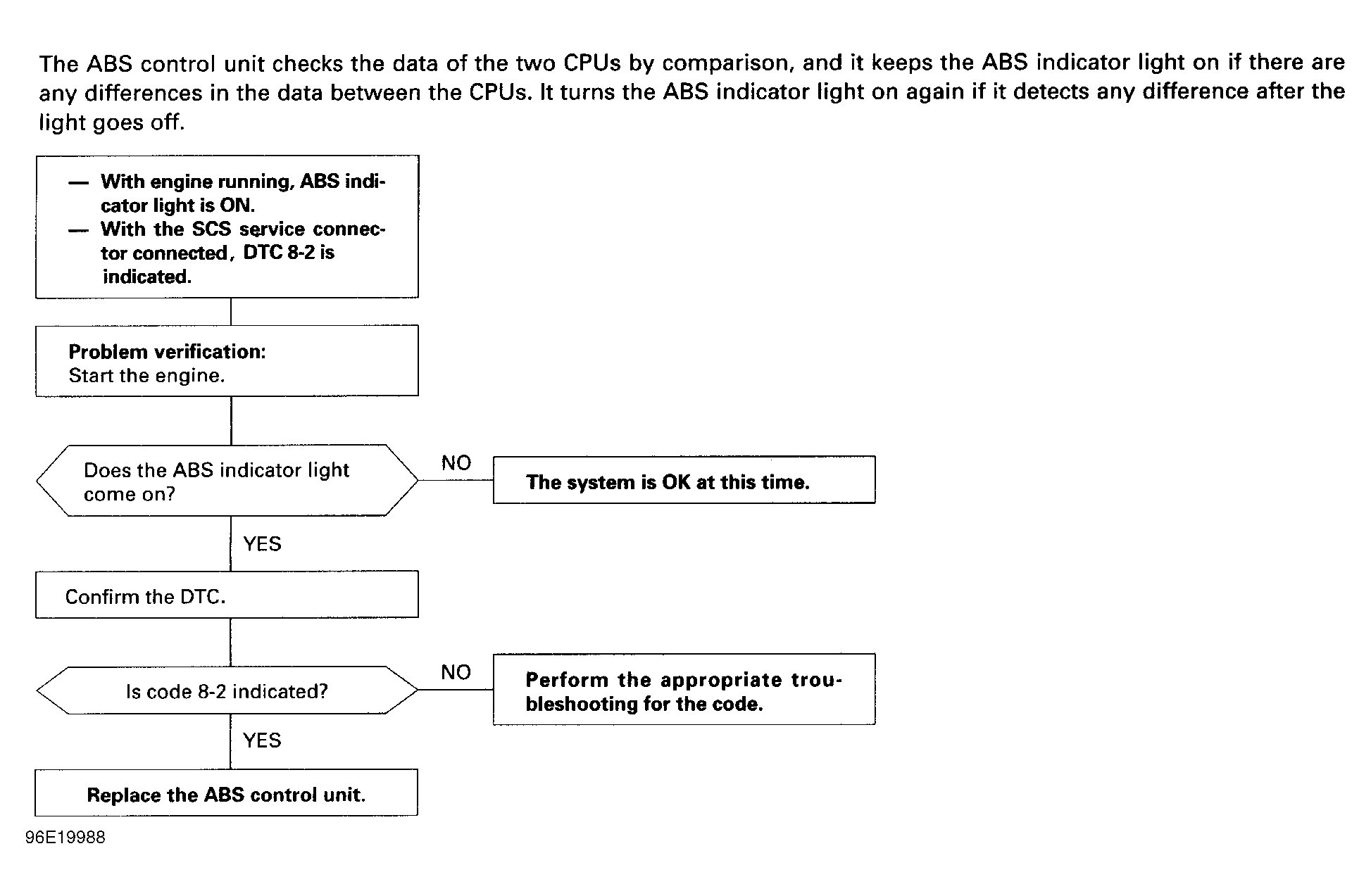

Fig 1: DTC 8-2 - CPU Comparison
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
