DTC 6-1 - Front Fail-Safe Relay

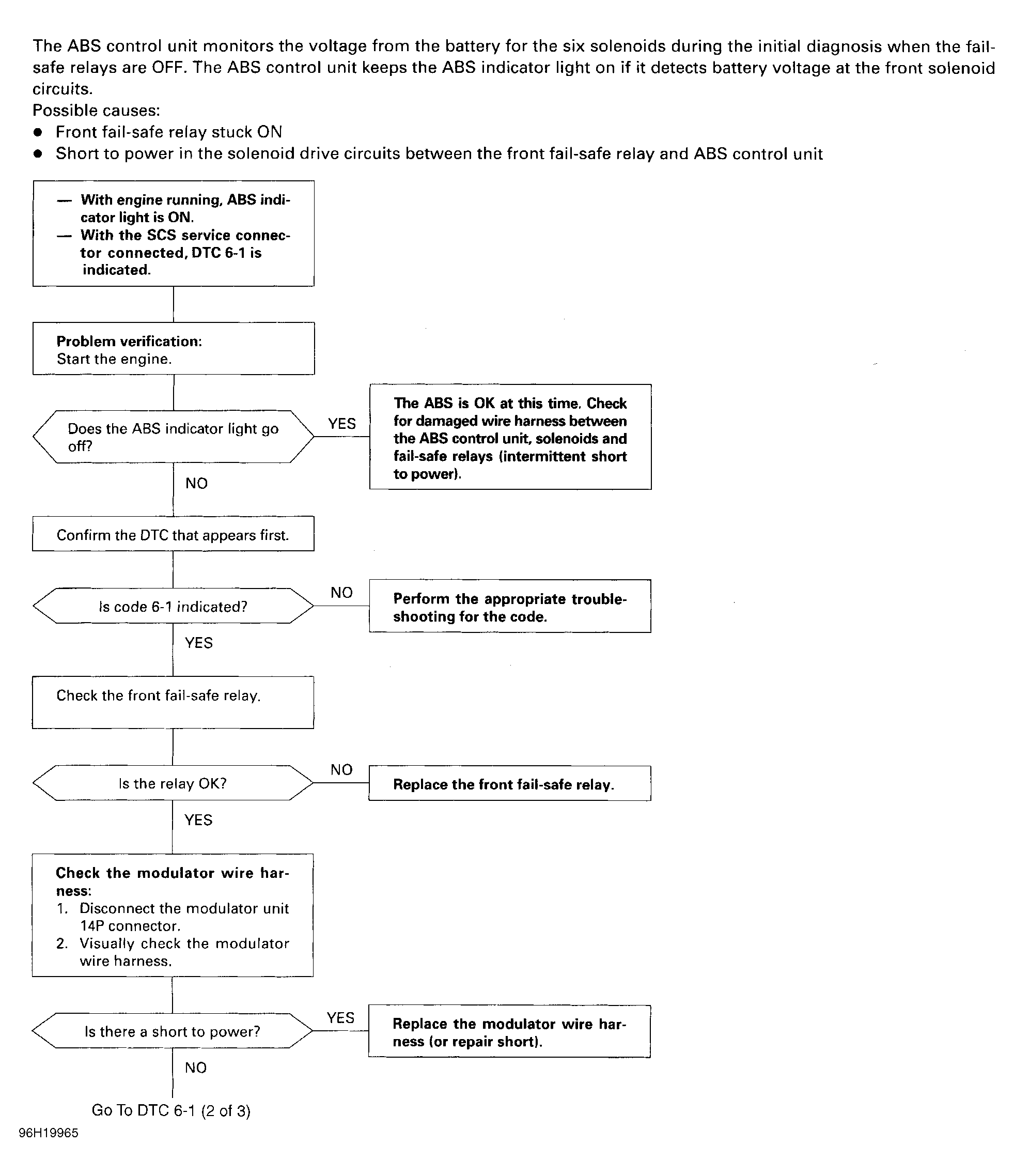

Fig 1: DTC 6-1 - Front Fail-Safe Relay (1 Of 3)
G96H19965Courtesy of AMERICAN HONDA MOTOR CO., INC.

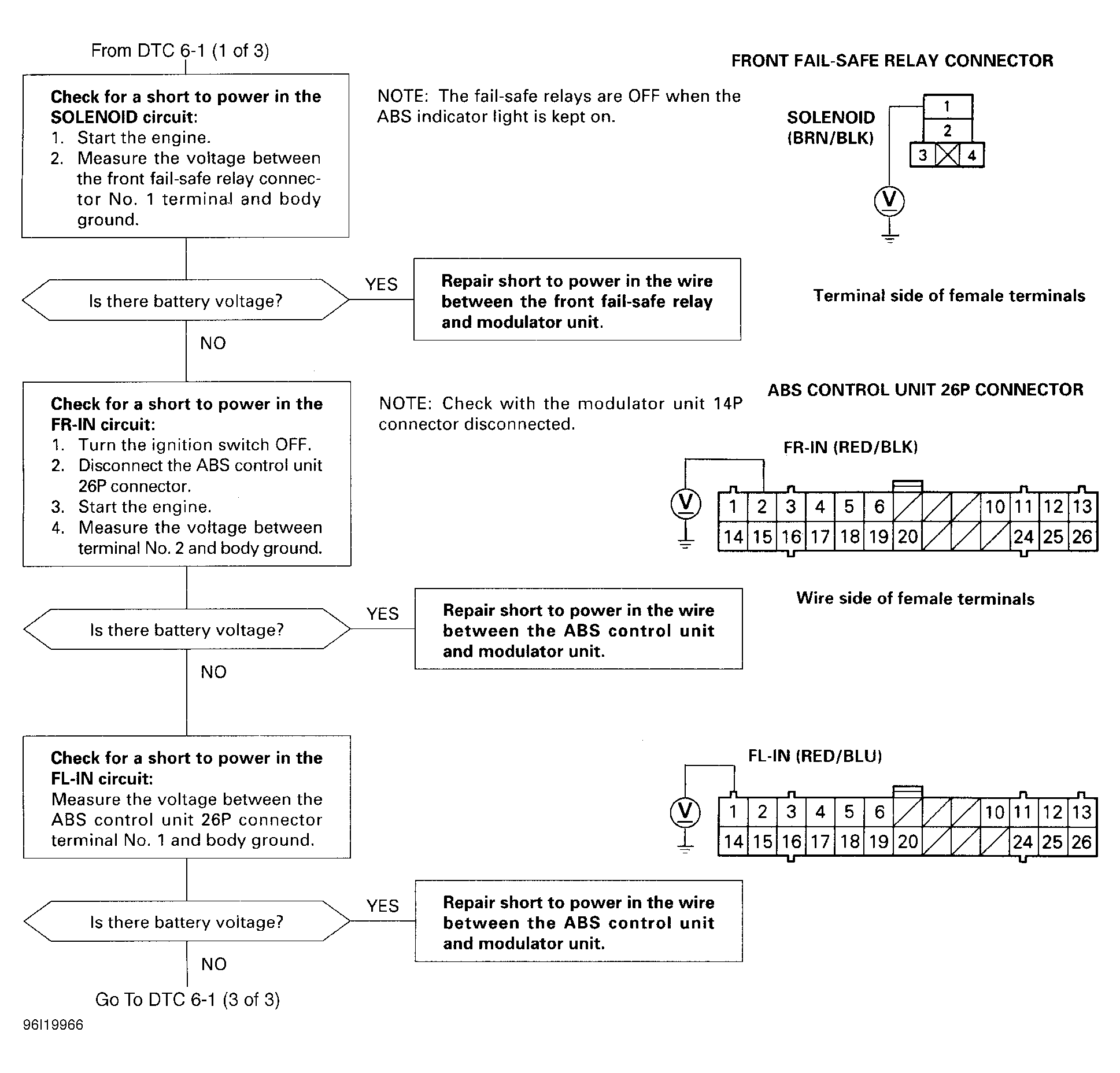

Fig 2: DTC 6-1 - Front Fail-Safe Relay (2 Of 3)
G96I19966Courtesy of AMERICAN HONDA MOTOR CO., INC.

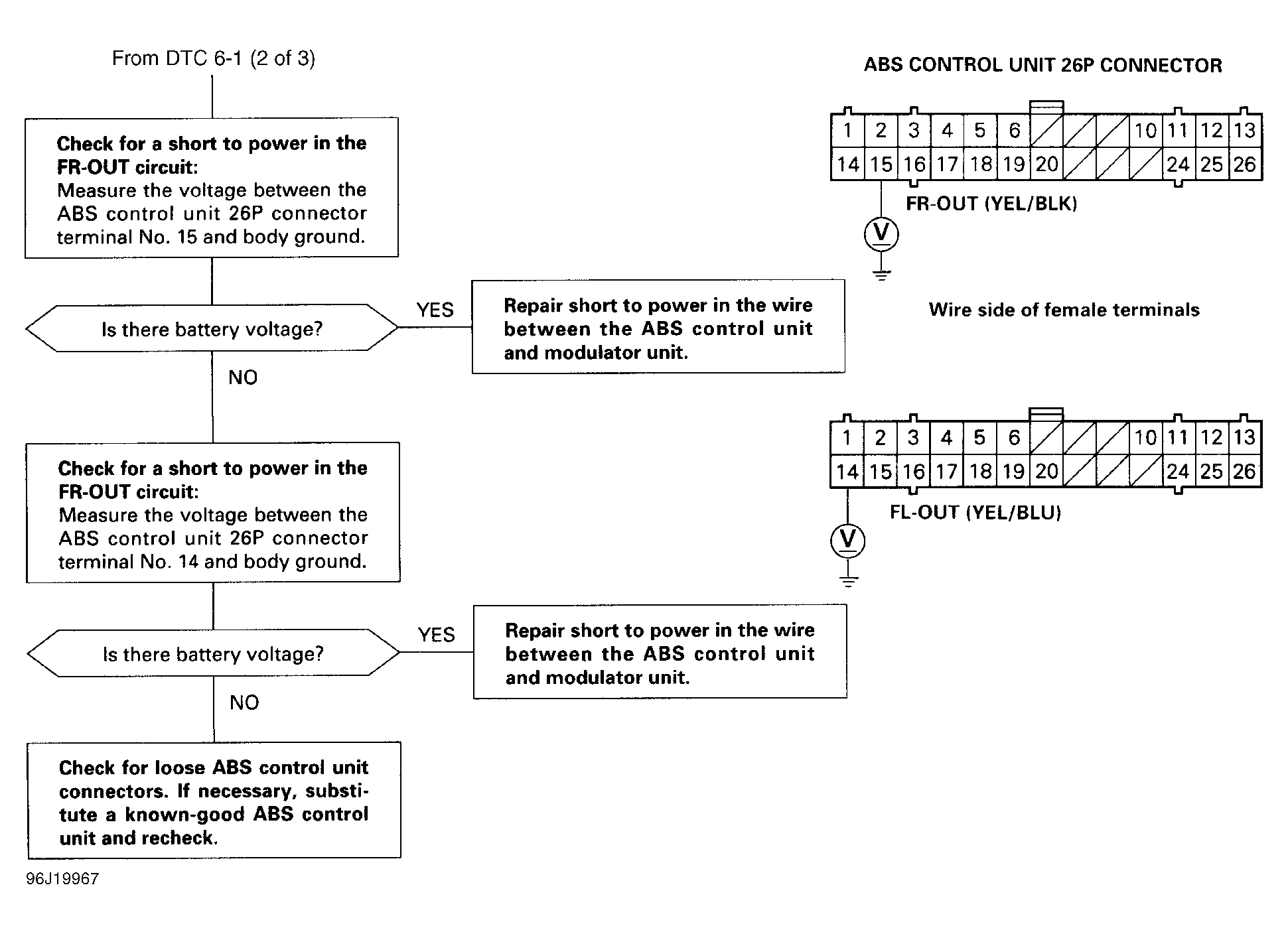

Fig 3: DTC 6-1 - Front Fail-Safe Relay (3 Of 3)
G96J19967Courtesy of AMERICAN HONDA MOTOR CO., INC.
