Diagnostic Circuit Check - Interlock System - Key Interlock System

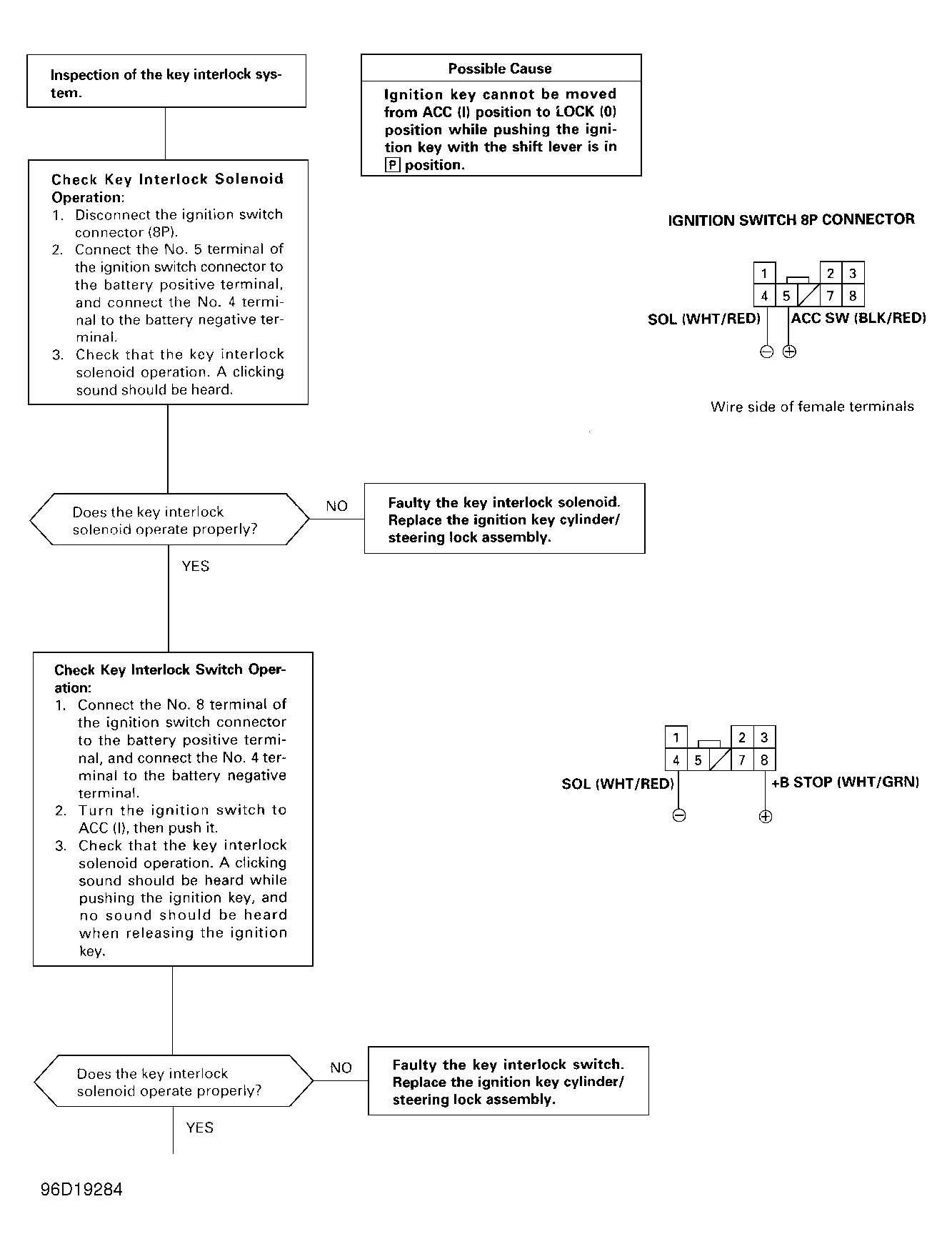

Fig 1: Diagnostic Circuit Check - Interlock System - Key Interlock System - Flow Chart - 1 Of 2
G96D19284

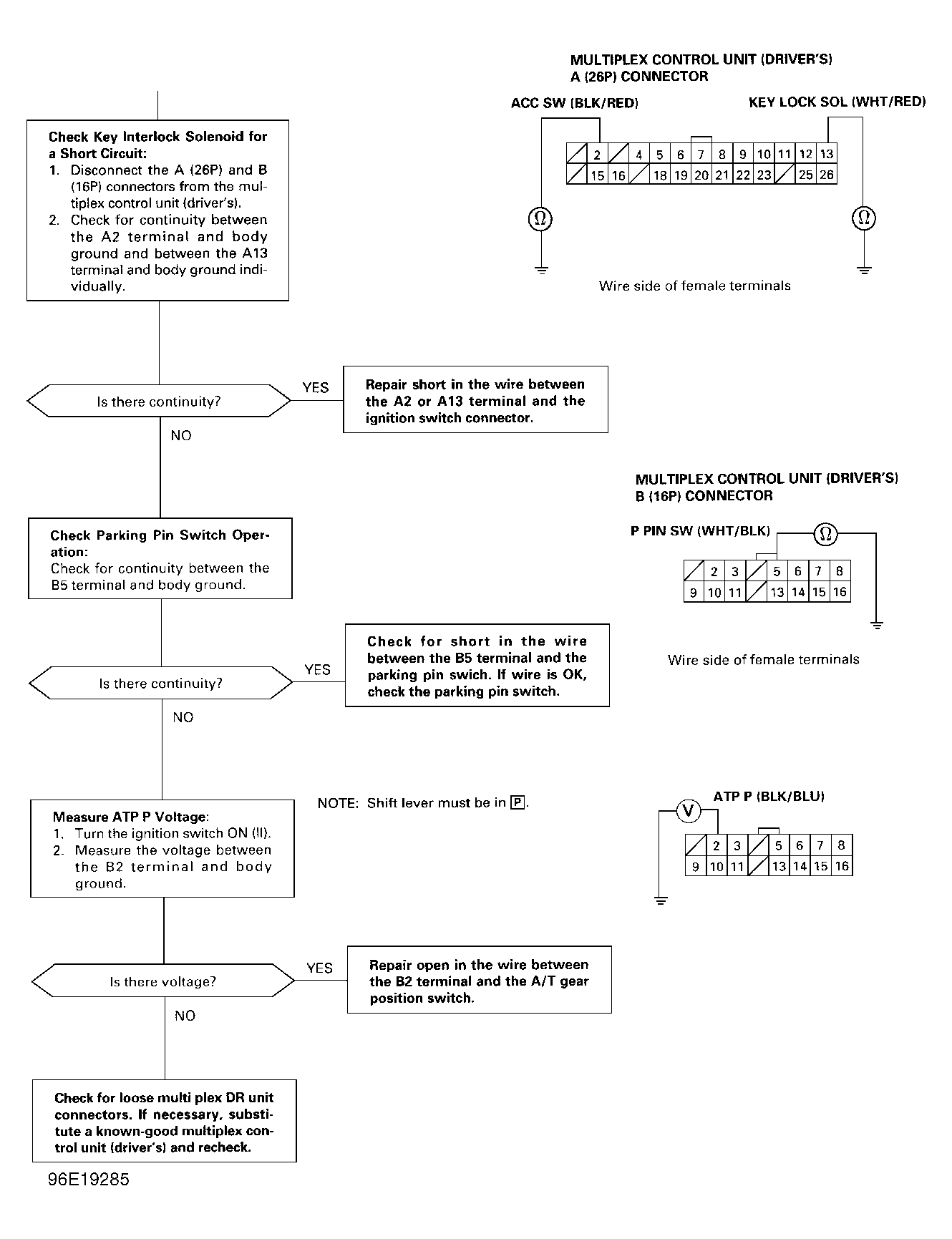

Fig 2: Diagnostic Circuit Check - Interlock System - Key Interlock System - Flow Chart - 2 Of 2
G96E19285
