Radiator Fan Control Module Terminals

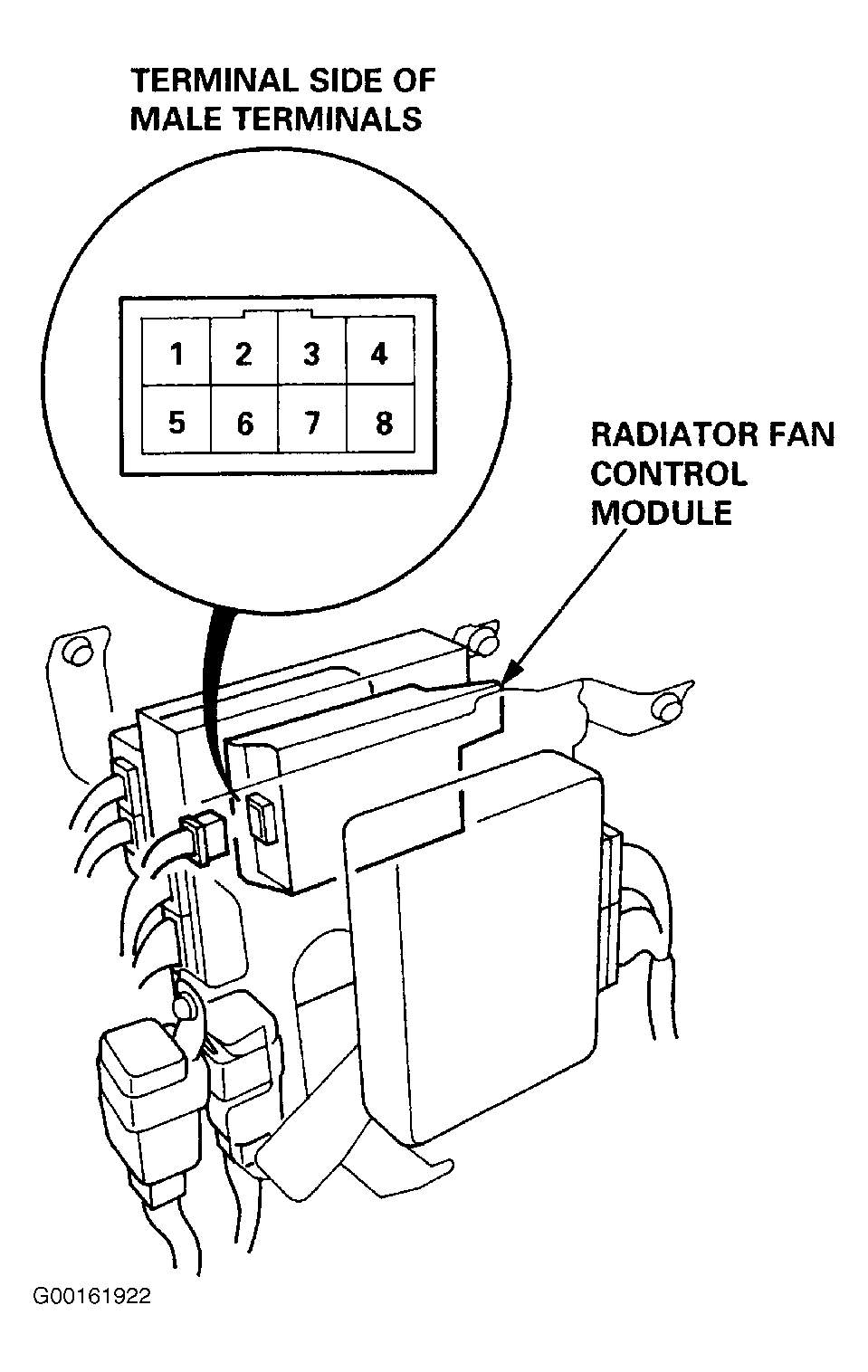

For locating radiator fan control module and terminal identification see Fig 1 . To test terminals see RADIATOR FAN CONTROL MODULE TERMINALS TEST table .
RADIATOR FAN CONTROL MODULE TERMINALS TEST
| Terminal | Wire | Connects To |
|---|---|---|
| 1 | YEL1 | Radiator Fan Relay (Coil +) |
| 2 | YEL/BLK | Power Supply For Radiator Fan And Condenser Fan Relays Via Radiator Fan Control Module With Ignition Switch "on" (II) |
| 3 | BLK | Condenser Fan Relay (Coil +) |
| 4 | WHT/GRN2 | Ground (G401, G404) |
| 5 | WHT/GRN1 | Engine Coolant Temperature (ECT) Switch B |
| 6 | WHT/GRN1 | Power Supply (For Radiator Fan Control Module With Ignition Switch "off") |
| 7 | BLK/YEL1 | IG1 (Control Module Reset Signal) |
| 8 | LT GRN/YEL | Radiator Fan And Condenser Fan Relays (Coil -) |
