Wiring Diagrams

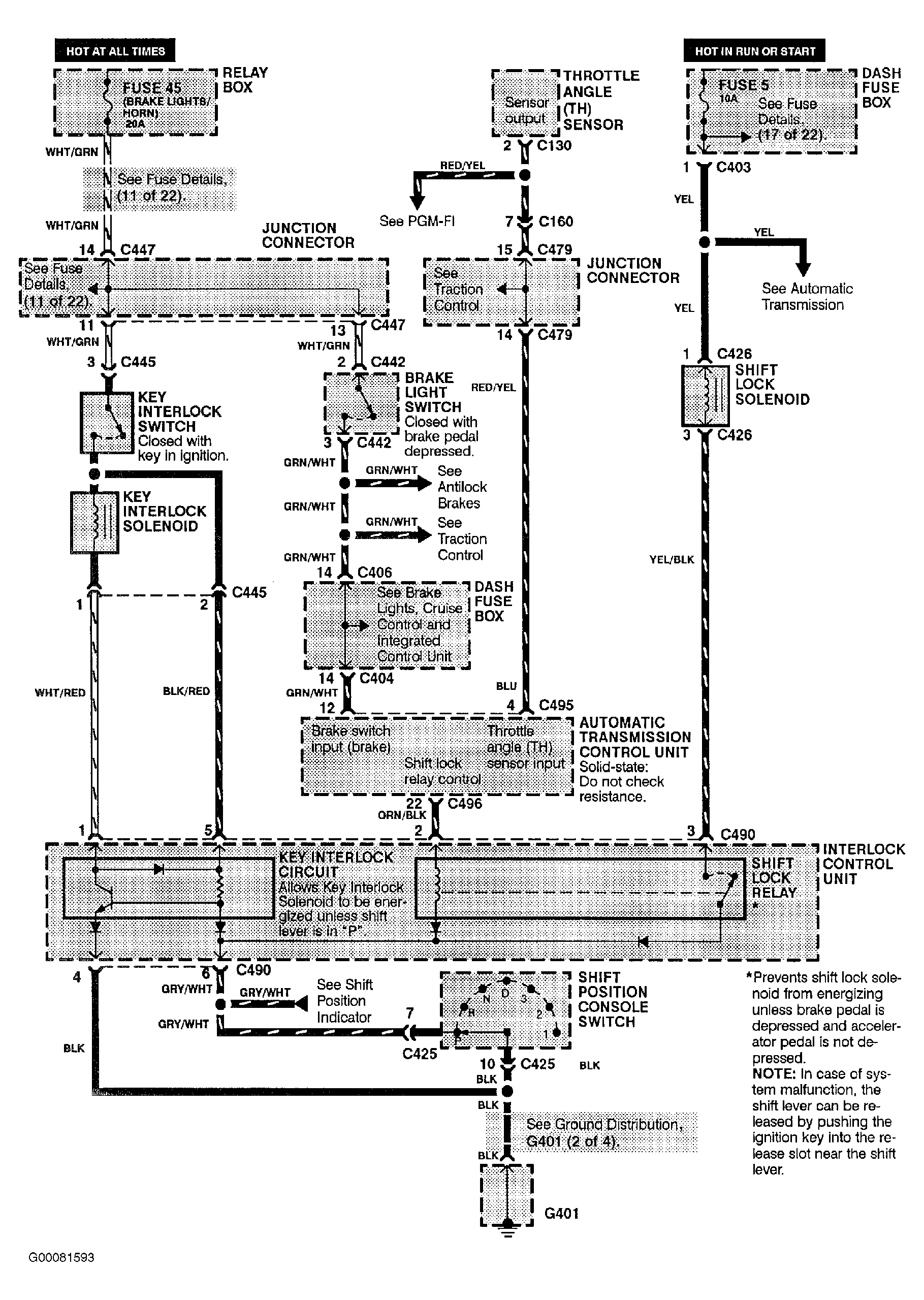

Fig 1: Shift Interlock System Circuit Wiring Diagram (1991)
G00081593Courtesy of AMERICAN HONDA MOTOR CO., INC.

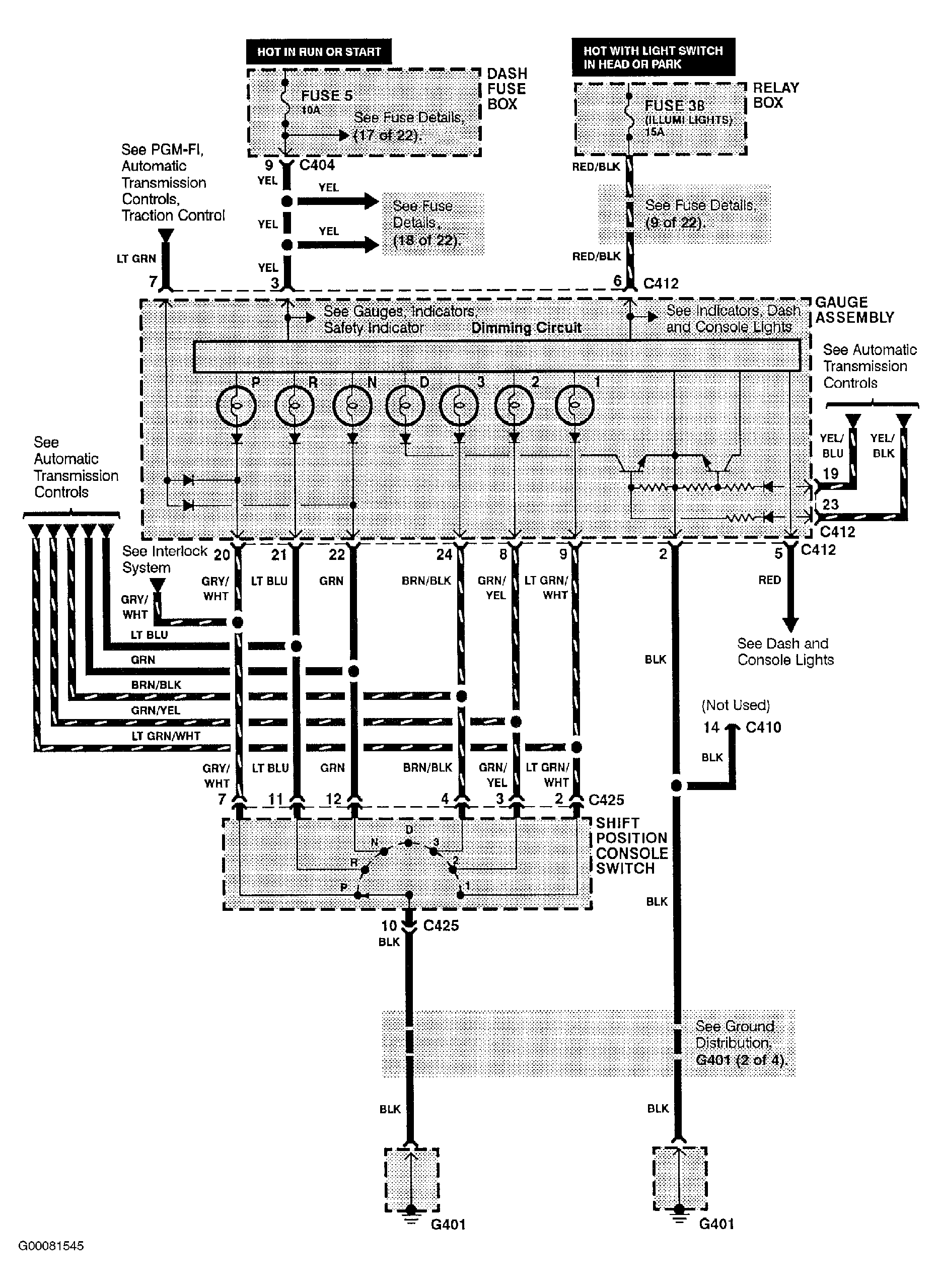

Fig 2: Shift Lever Position Indicator Circuit Wiring Diagram (1991)
G00081545Courtesy of AMERICAN HONDA MOTOR CO., INC.

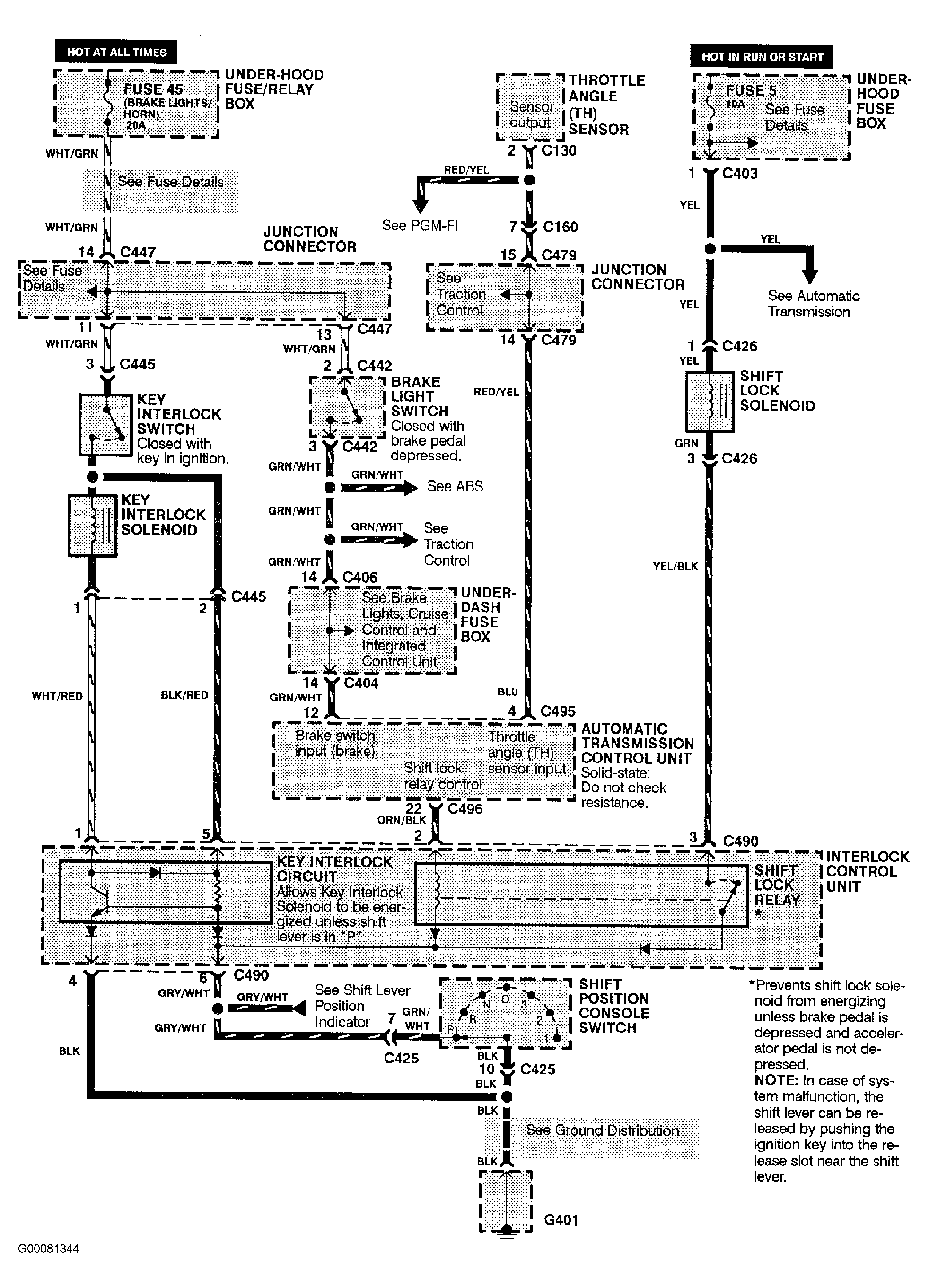

Fig 3: Shift Interlock System Circuit Wiring Diagram (1992)
G00081344Courtesy of AMERICAN HONDA MOTOR CO., INC.

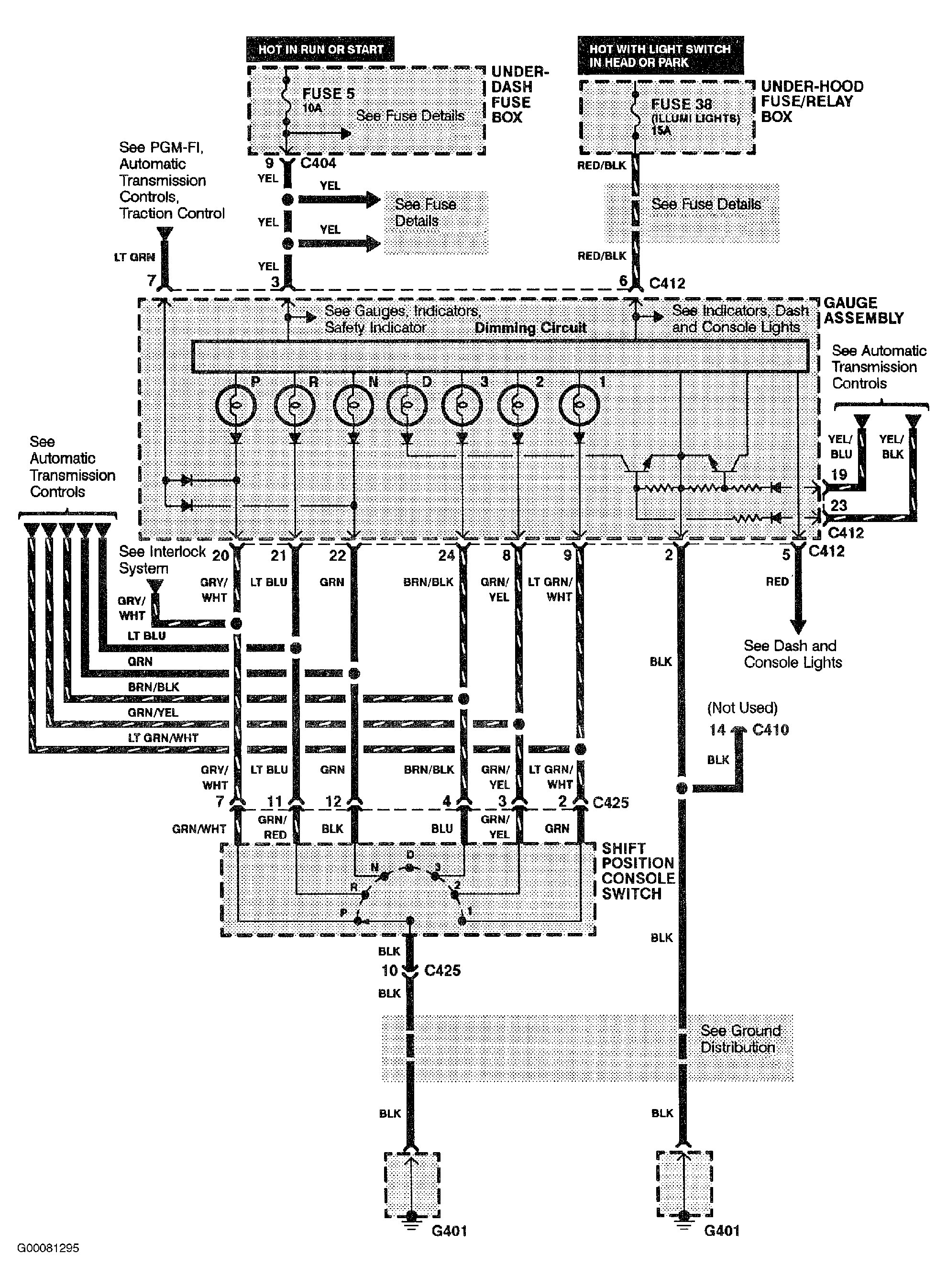

Fig 4: Shift Lever Position Indicator Circuit Wiring Diagram (1992)
G00081295Courtesy of AMERICAN HONDA MOTOR CO., INC.

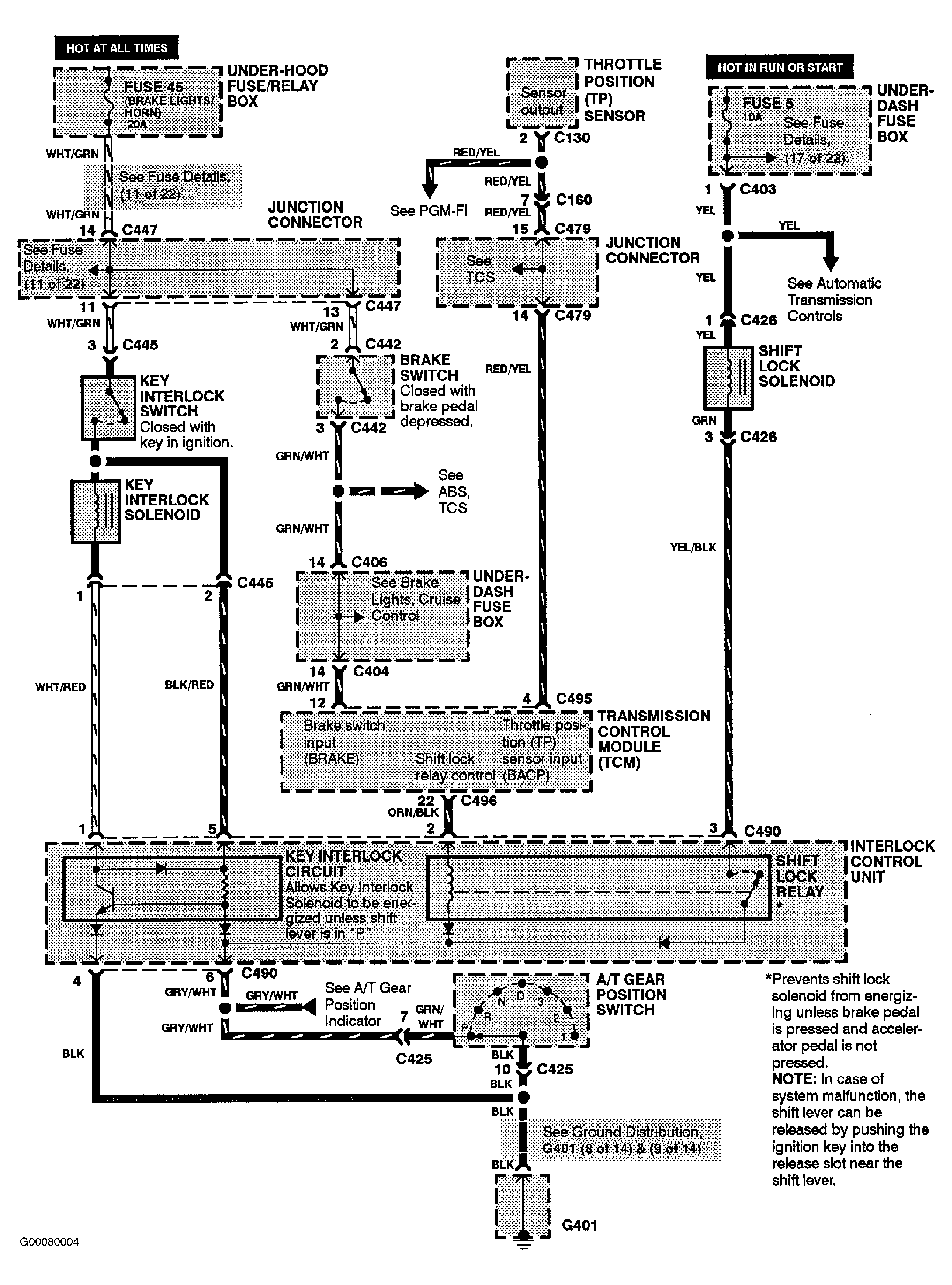

Fig 5: Interlock System Circuit Wiring Diagram (1993)
G00080004Courtesy of AMERICAN HONDA MOTOR CO., INC.

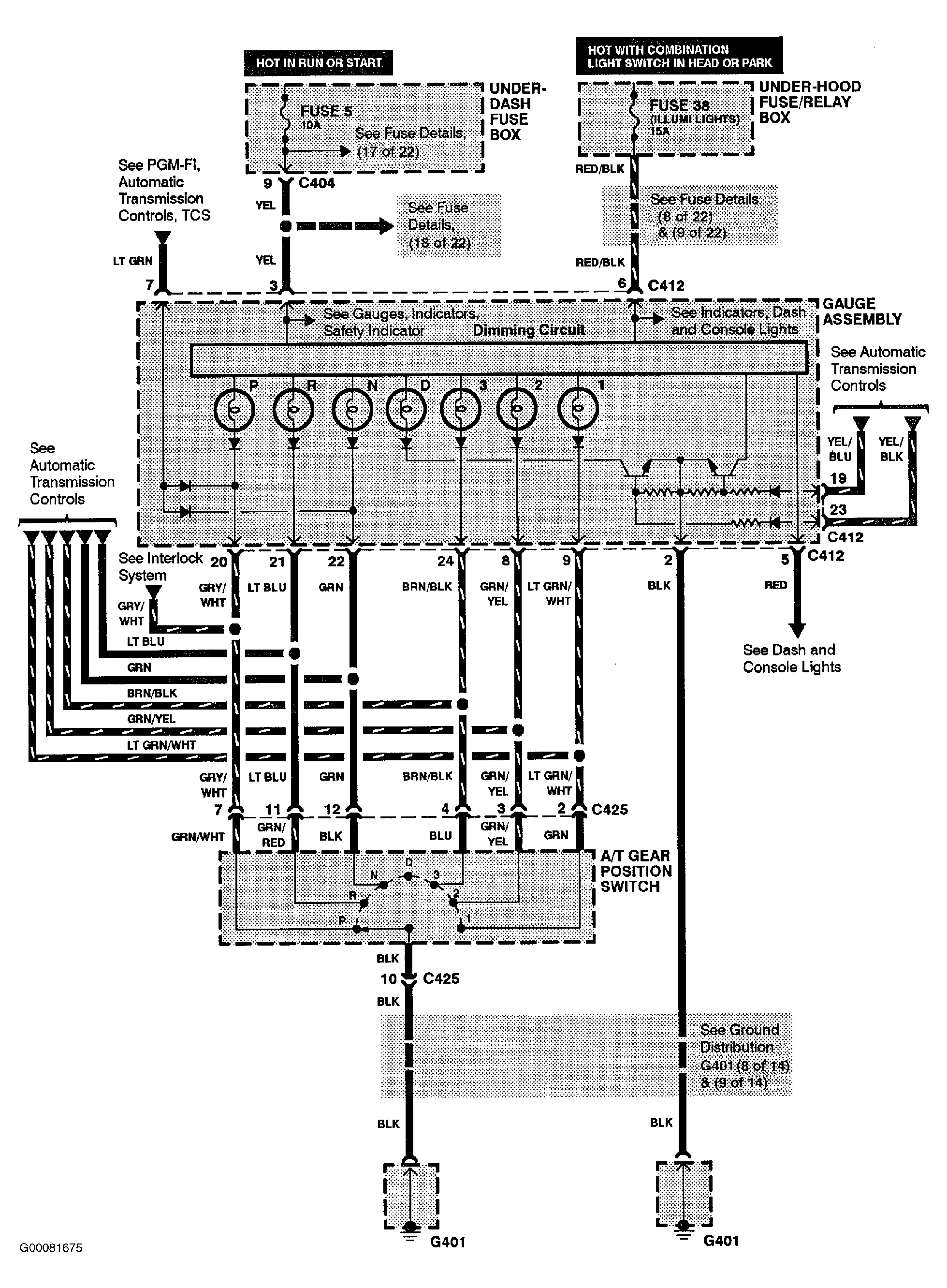

Fig 6: A/T Gear Position Indicator Circuit Wiring Diagram (1993)
G00081675Courtesy of AMERICAN HONDA MOTOR CO., INC.

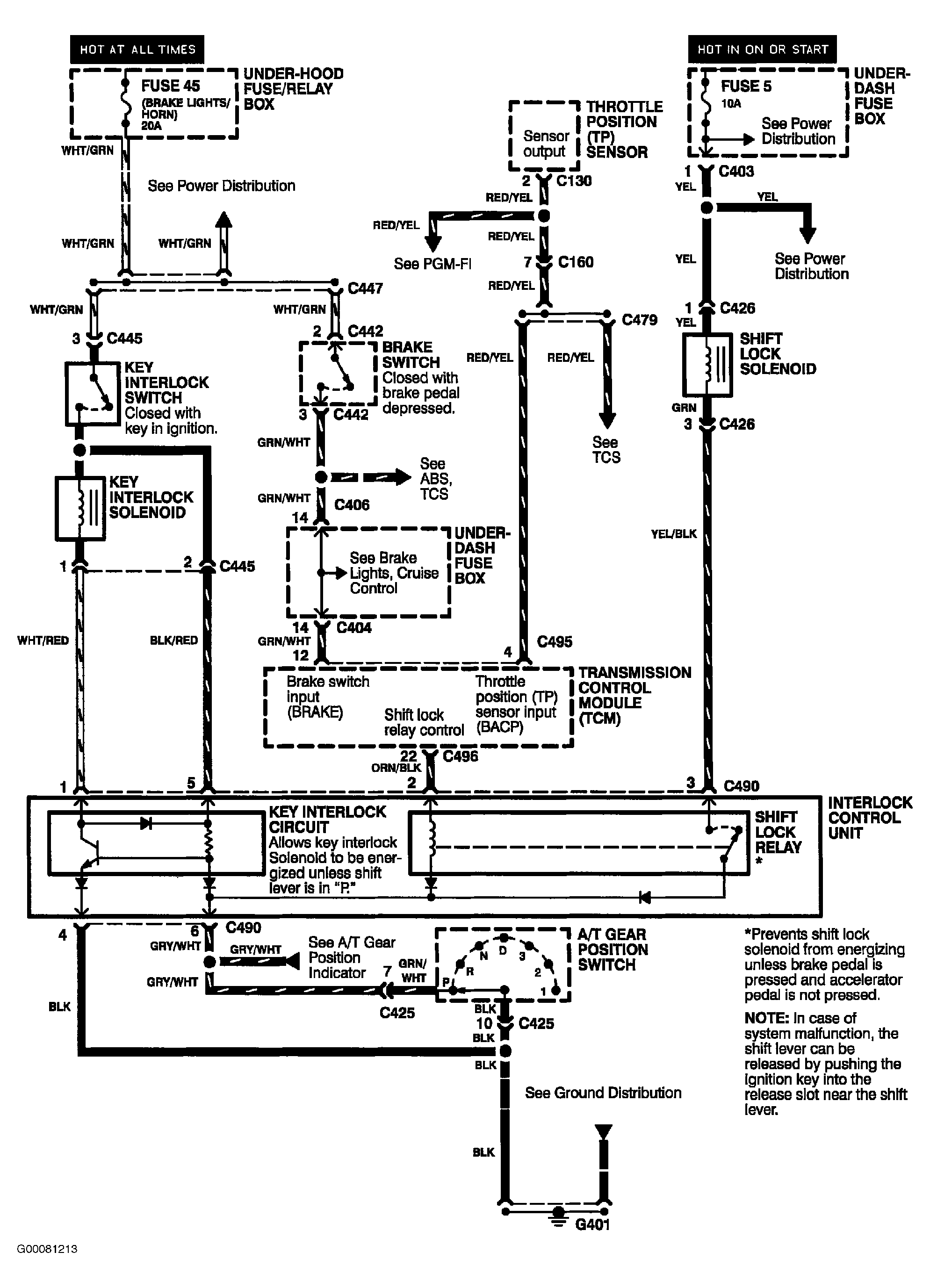

Fig 7: Shift Interlock System Circuit Wiring Diagram (1994)
G00081213Courtesy of AMERICAN HONDA MOTOR CO., INC.

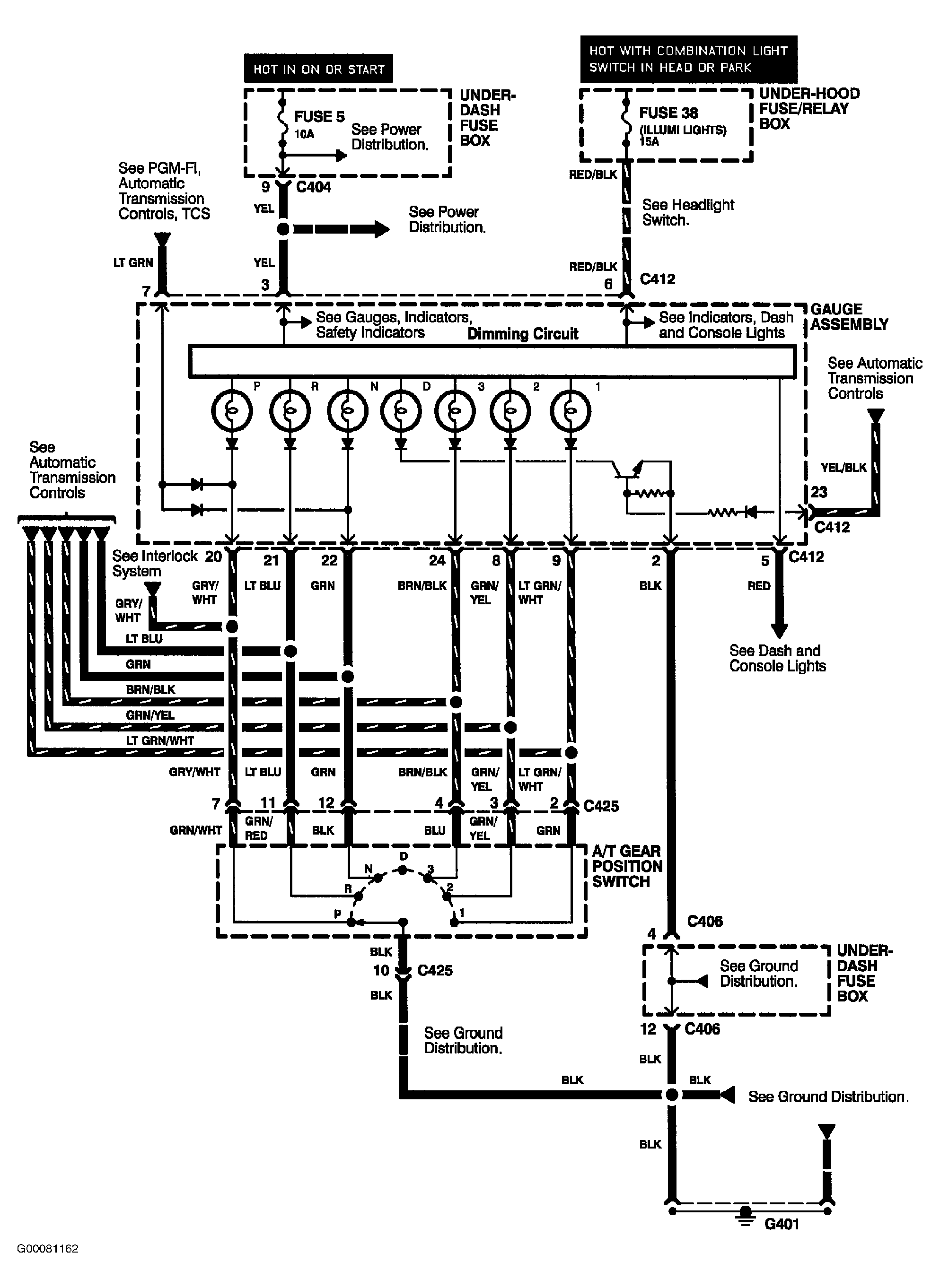

Fig 8: A/T Gear Position Indicator Circuit Wiring Diagram (1994)
G00081162Courtesy of AMERICAN HONDA MOTOR CO., INC.

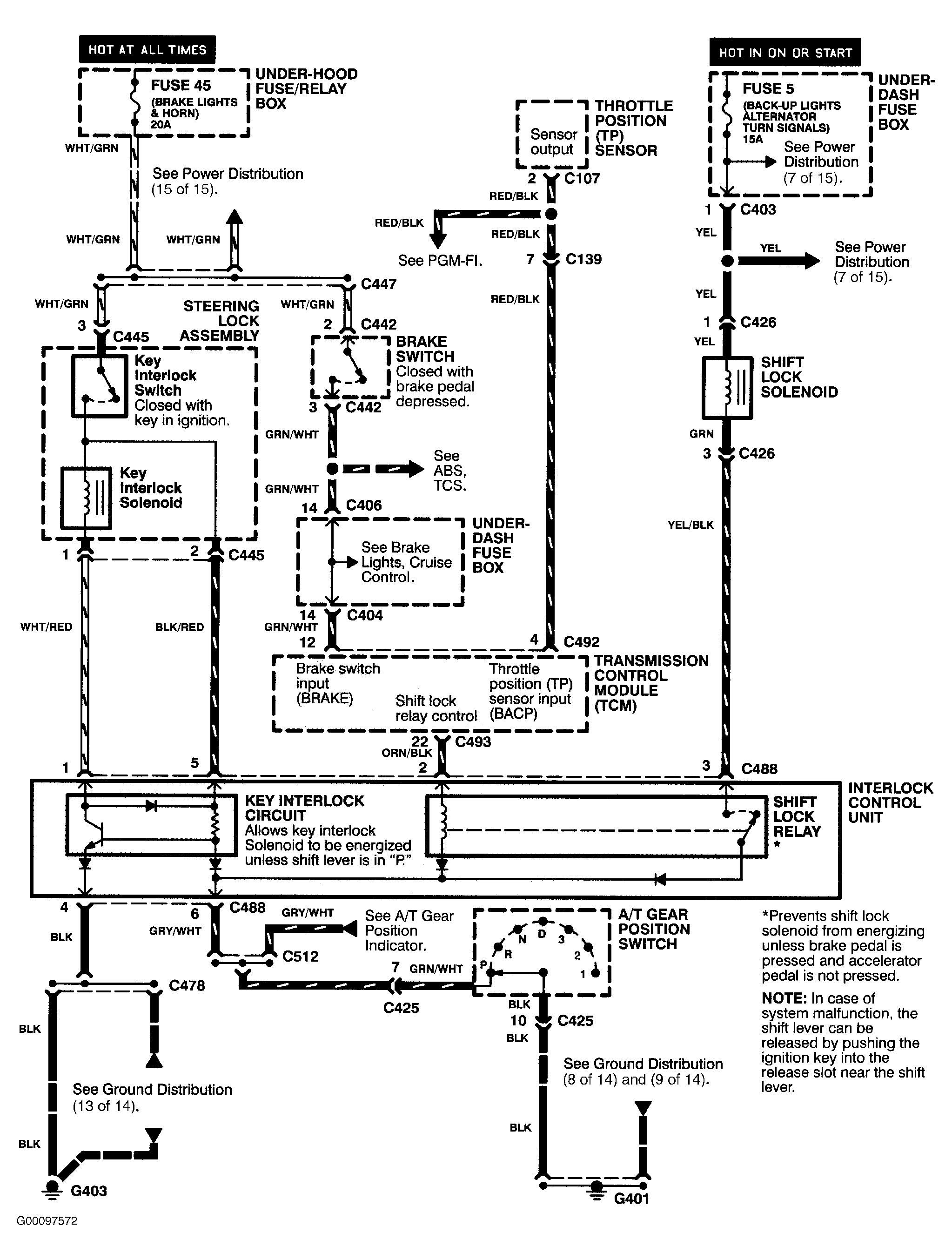

Fig 9: Shift Interlock System Wiring Diagram (1995-96)
G00097572Courtesy of AMERICAN HONDA MOTOR CO., INC.

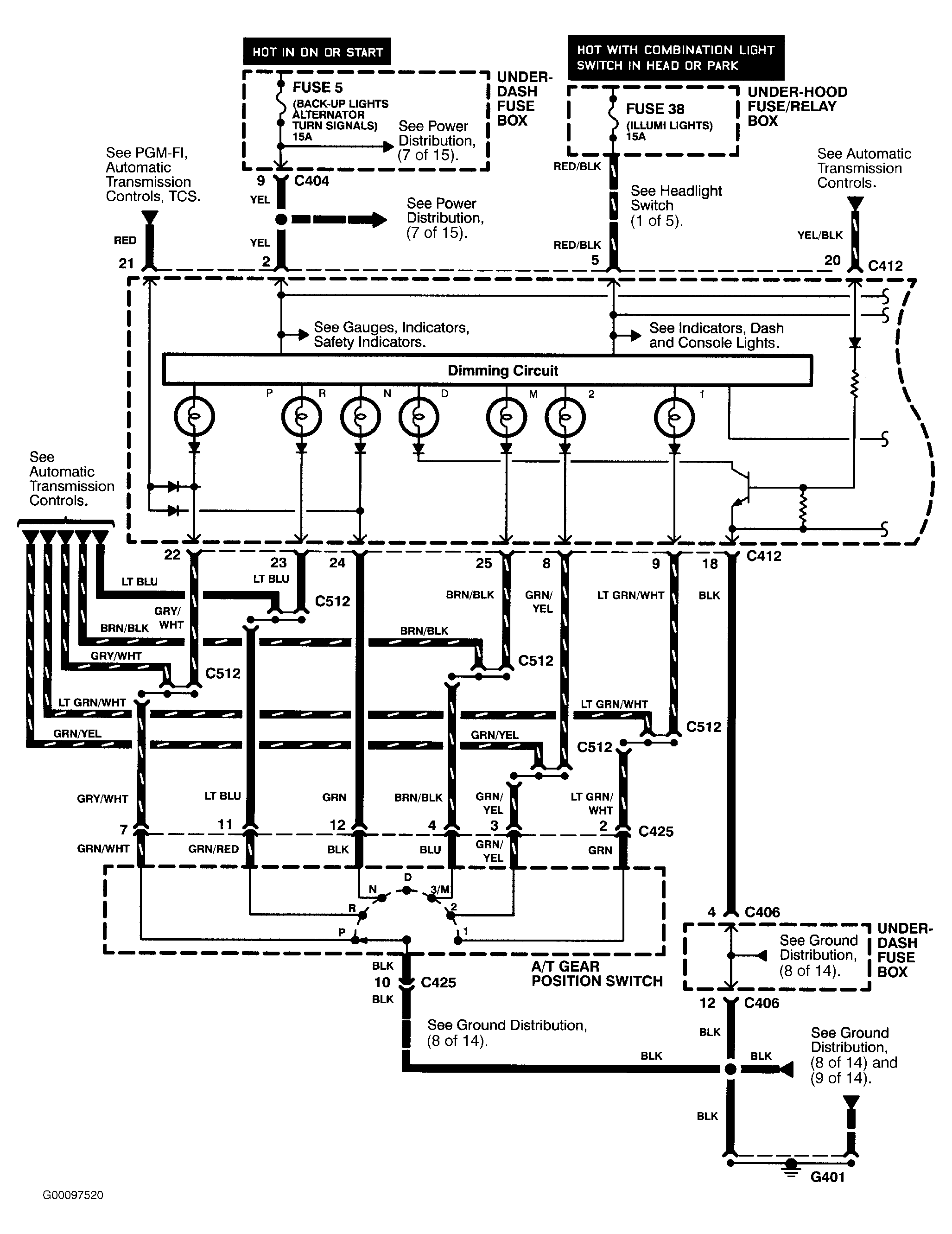

Fig 10: A/T Gear Position Indicator Wiring Diagram (1 Of 2 - 1995-96)
G00097520Courtesy of AMERICAN HONDA MOTOR CO., INC.

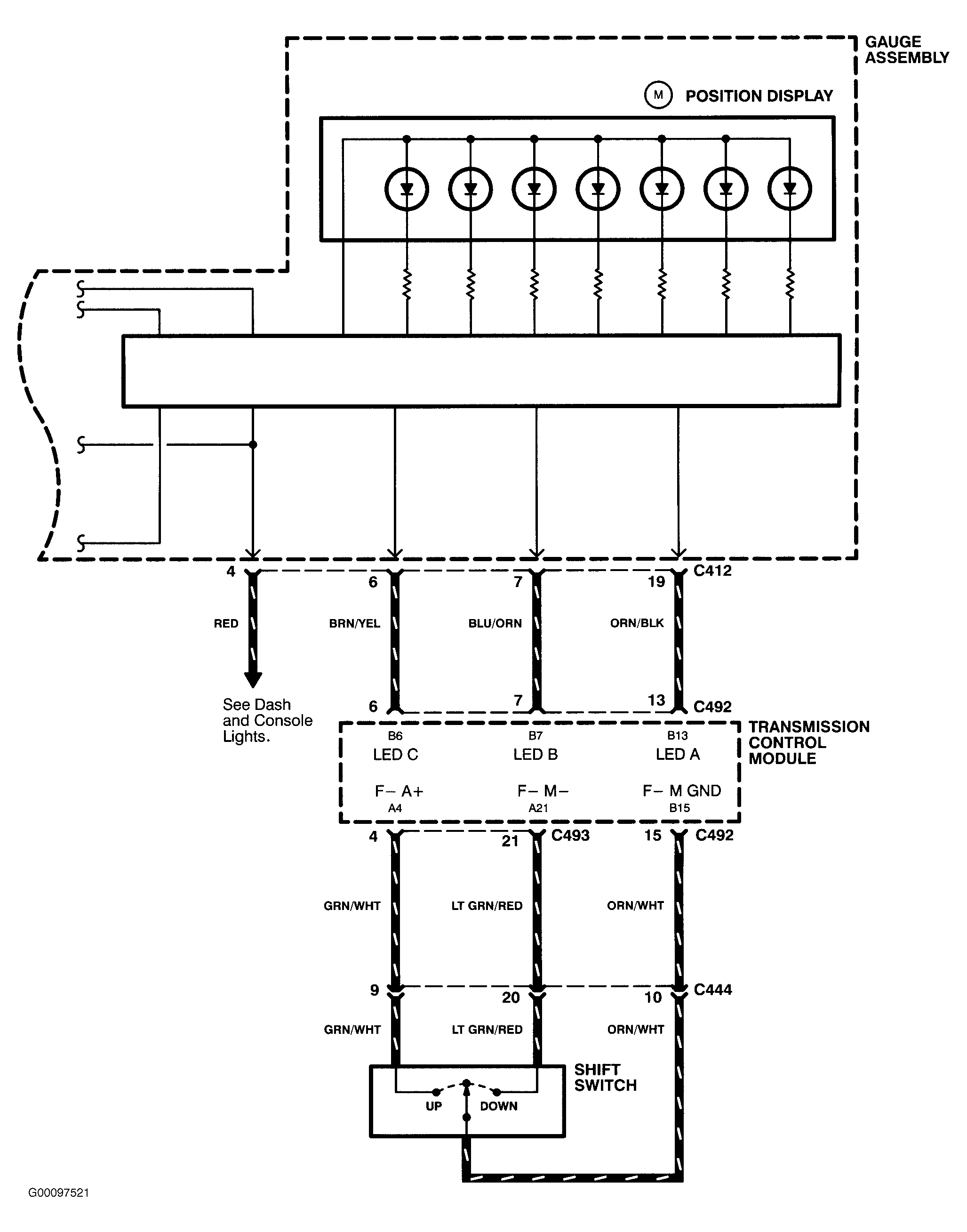

Fig 11: A/T Gear Position Indicator Wiring Diagram (2 Of 2 - 1995-96)
G00097521Courtesy of AMERICAN HONDA MOTOR CO., INC.
