Starter Cut Relay Test

  1. Remove glove box.
  2. Disconnect 4-P connector from starter cut relay. (Wire colors of 4-P connector: BLK/GRN, BLK/WHT, BLK/BLU and BLK/WHT)
  3. There should be continuity between "A" and "B" terminals when battery connected to "C" and "D" terminals. See Fig 1 . There should be no continuity when battery is disconnected.

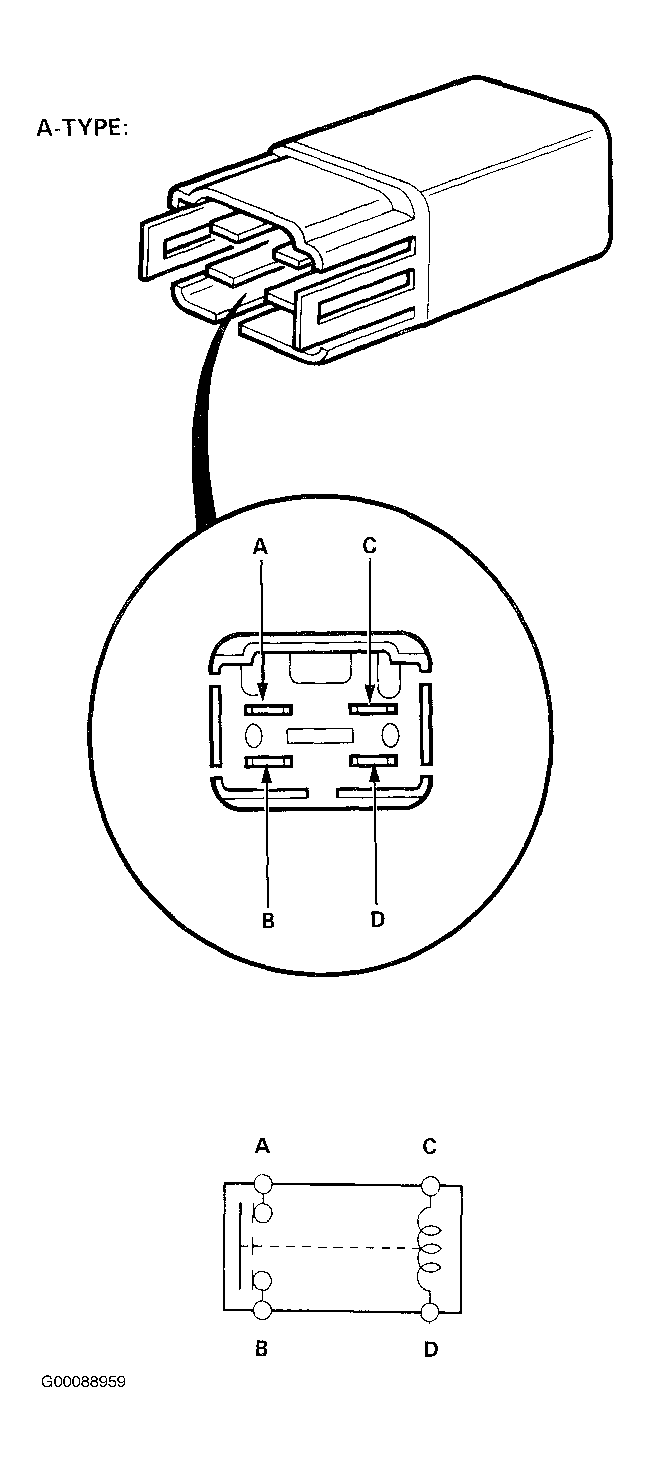

Fig 1: Identifying Starter Cut Relay 4-P Connector Terminals
G00088959Courtesy of AMERICAN HONDA MOTOR CO., INC.
