Passenger's Switch Test

  1. Remove the door panel.
  2. Disconnect the 8-P connector.
  3. Check for continuity between the terminals in each switch position according to the table. See Fig 1 .

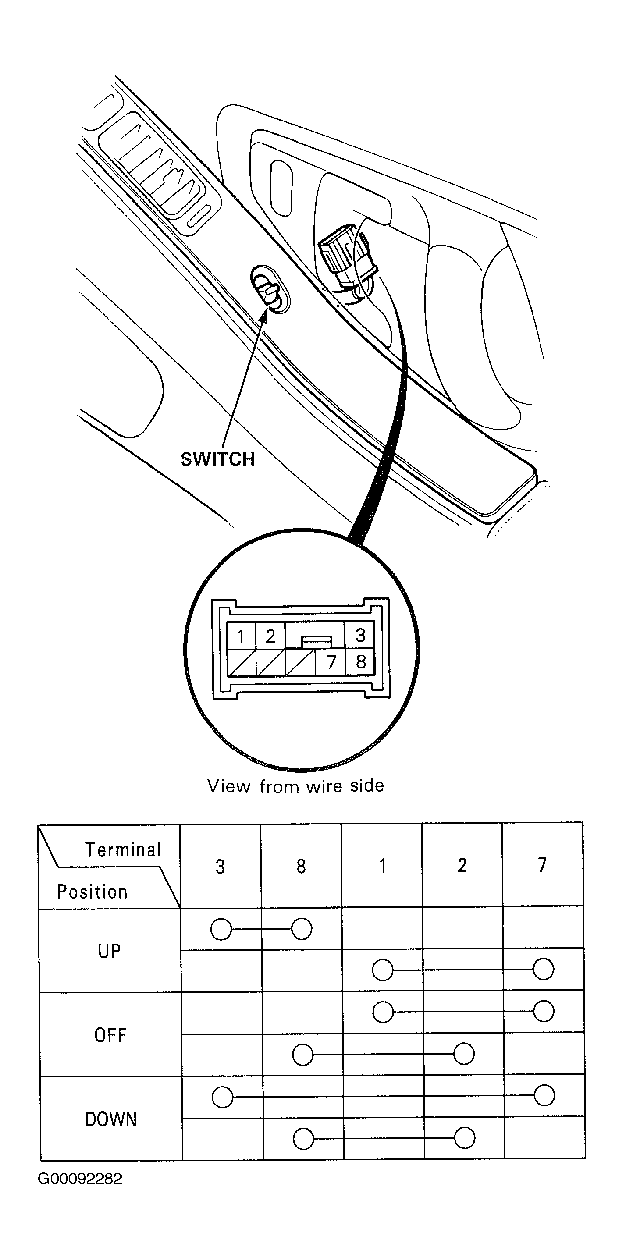

Fig 1: Testing Passenger's Switch
G00092282Courtesy of AMERICAN HONDA MOTOR CO., INC.
