Motor Test
CAUTION:
Be careful not to damage the seats, the interior trim or the body.
CAUTION:
When the motor stops running, disconnect a battery terminal immediately. When a motor does not run, reverse the battery terminal connection. If the motor still does not run, the motor or the wire harness is defective.
Remove the power seat, then disconnect the 2-pin connector from the sliding motor. Remove the 2 screws then remove the power seat switch from the power seat. Disconnect the 5-pin connector from the reclining switch. Test motor operation.

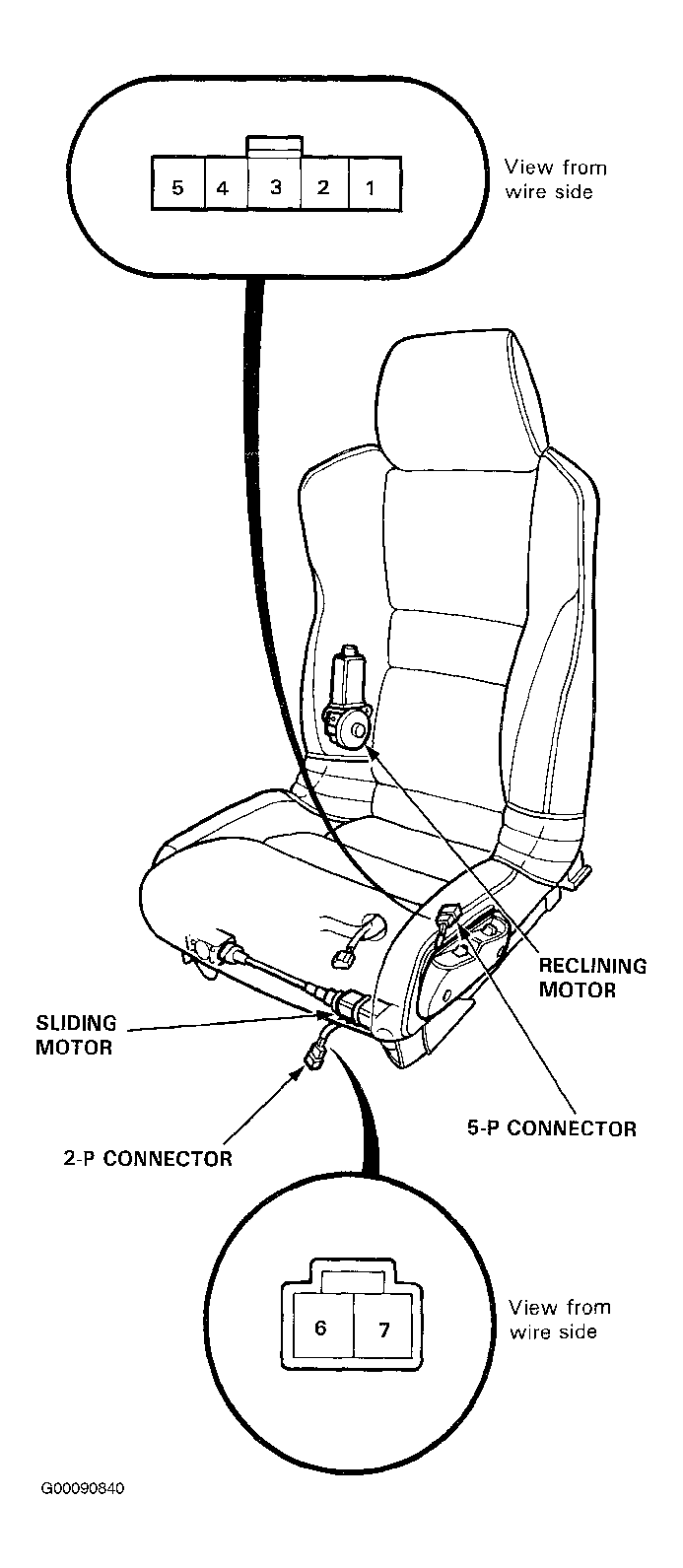

- Forward Sliding: Connect battery positive to the No. 6 terminal and negative to the No. 7 terminal. See Fig 1 .
- Backward Sliding: Connect battery positive to the No. 7 terminal and negative to the No. 6 terminal.
- Forward Recline: Connect battery positive to the No. 4 terminal and negative to the No. 1 terminal.
- Backward Recline: Connect battery positive to the No. 1 terminal and negative to the No. 4 terminal.
