Component Locations

For component location, refer to illustrations. See Fig 3 .

COMPONENT LOCATIONS

Component	Location
Grounds G401 & G403	Behind Left Kick Panel. See Fig 1 and Fig 2 .
Power Seat Switch	Side Of Respective Seat. See Fig 3 .
Reclining Motor	Right Side Of Seat Back, Inside Of Side Of Seat Back. See Fig 3 .
Sliding Motor	Under Seat, Attached To Rail Assembly. See Fig 3 .
Main Fuse Box	Rear Of Vehicle, In Drivers Side Engine Compartment. See Fig 3 .

Fig 1: Locating Grounds G401 & G403 (1991-96)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating Grounds G401 & G403 (1997-01)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

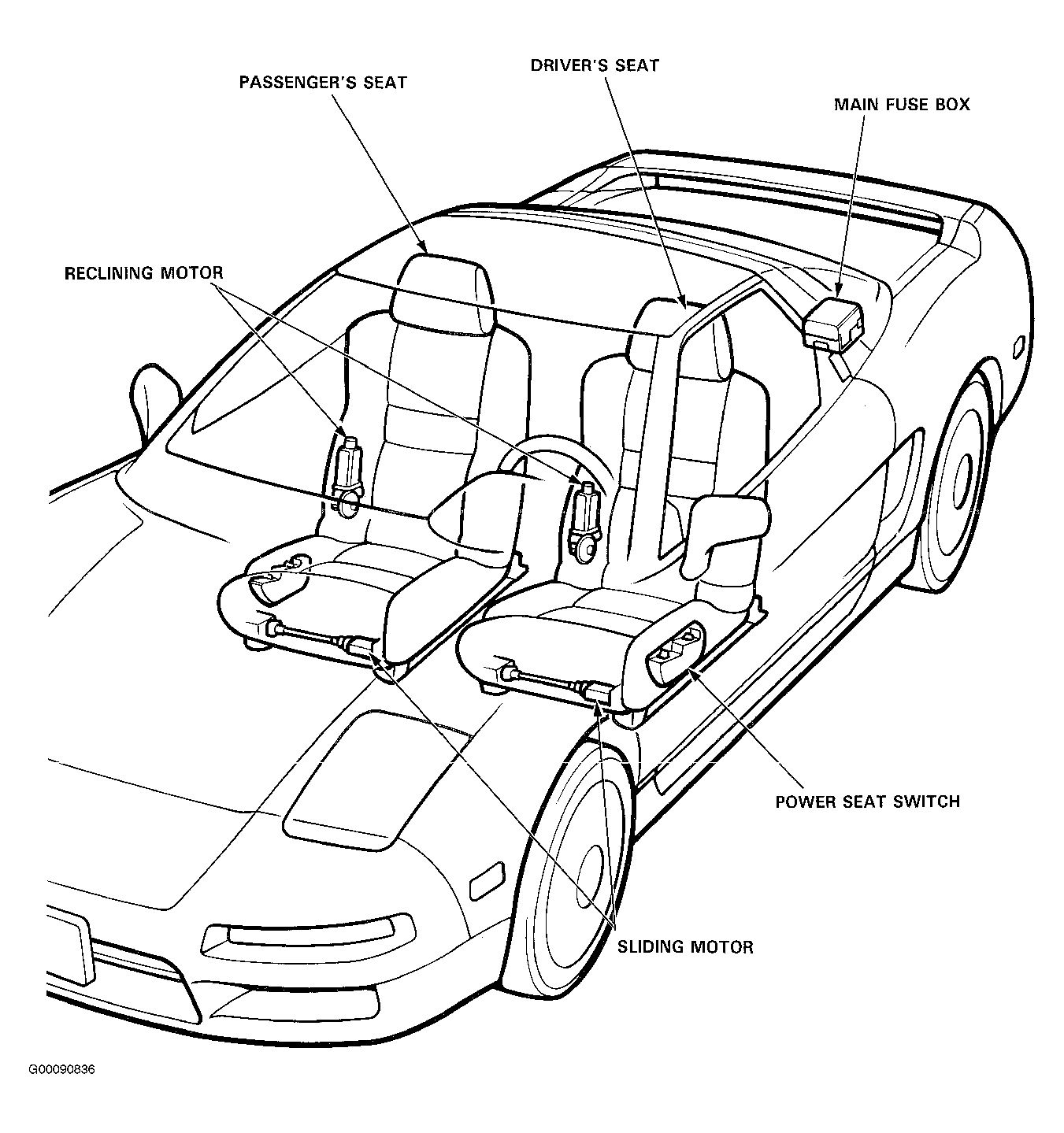

Fig 3: Locating Power Seat Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
