System Tests: Notes

NOTE: Before testing, remove the left door trim panel, and disconnect all of the connectors from the door trim panel. See DOOR PANEL  under REMOVAL & INSTALLATION. Also check the No. 4 (15A) fuse in the under-dash fuse box before testing.

To locate 10-P connector, see Fig 1 .

SYMPTOM & TESTS

Symptom  Perform Test
One Or Both Inoperative A
Left Inoperative B
Right Inoperative C

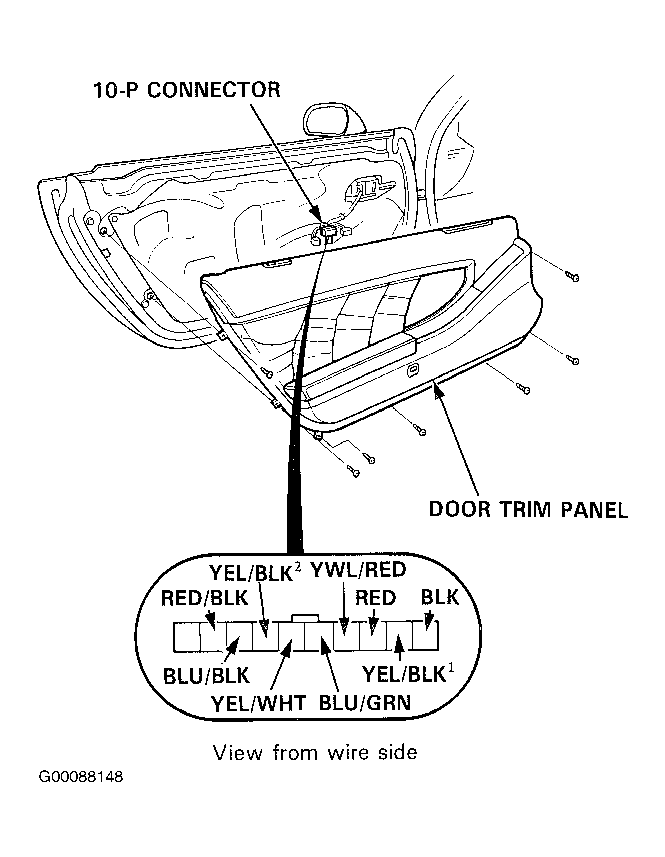

Fig 1: Locating 10-P Connector
G00088148Courtesy of AMERICAN HONDA MOTOR CO., INC.
