Component Locations

For component location see Fig 1 .

COMPONENT LOCATIONS

Component Location
Ground G401 Behind Left Kick Panel, Above Under-Dash Fuse Box

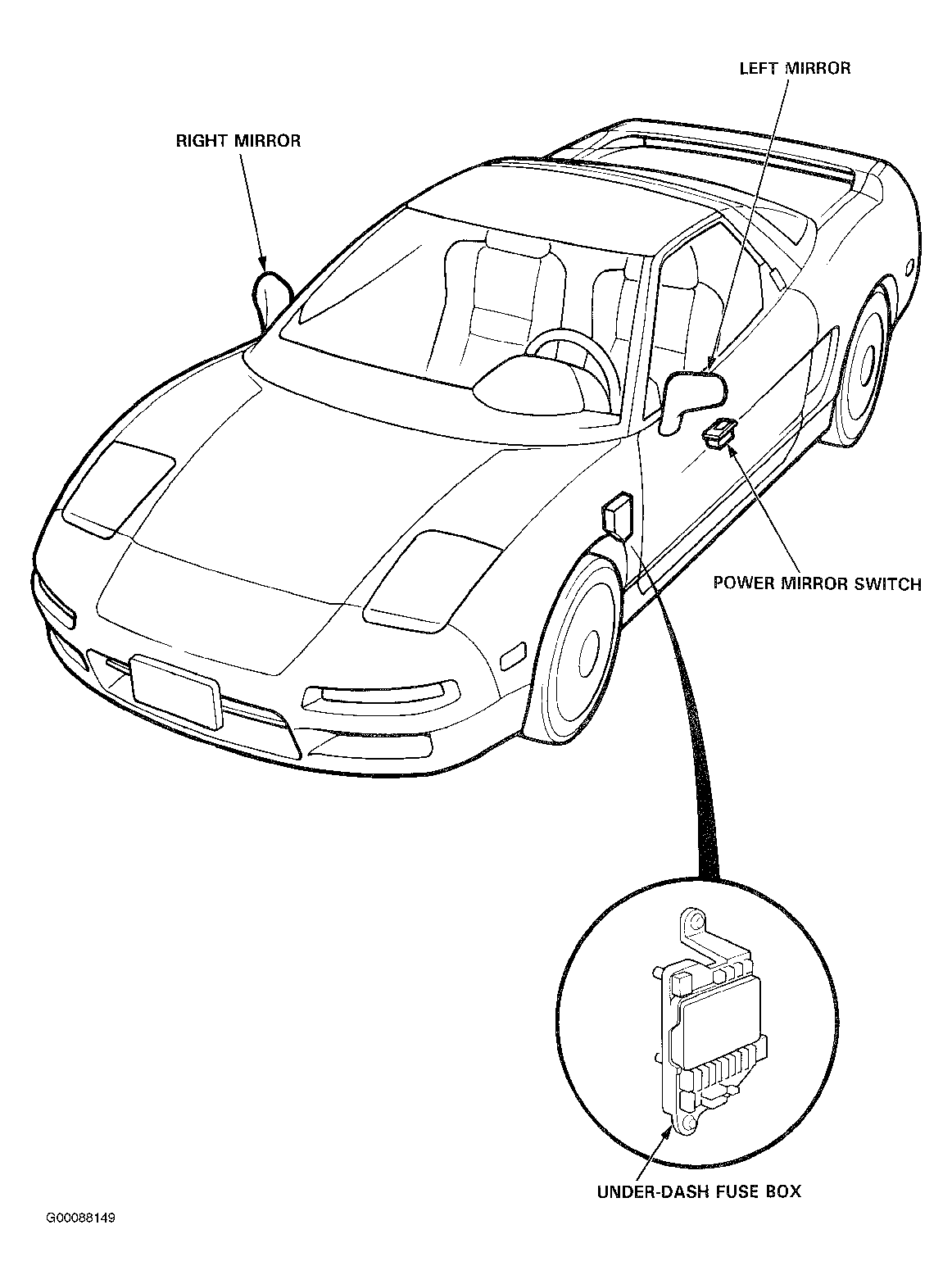

Fig 1: Component Locations
G00088149Courtesy of AMERICAN HONDA MOTOR CO., INC.
