Check Engine Light Stays On

If Check Engine light stays on with service connector NOT jumped, see Fig 1 -Fig 3 .

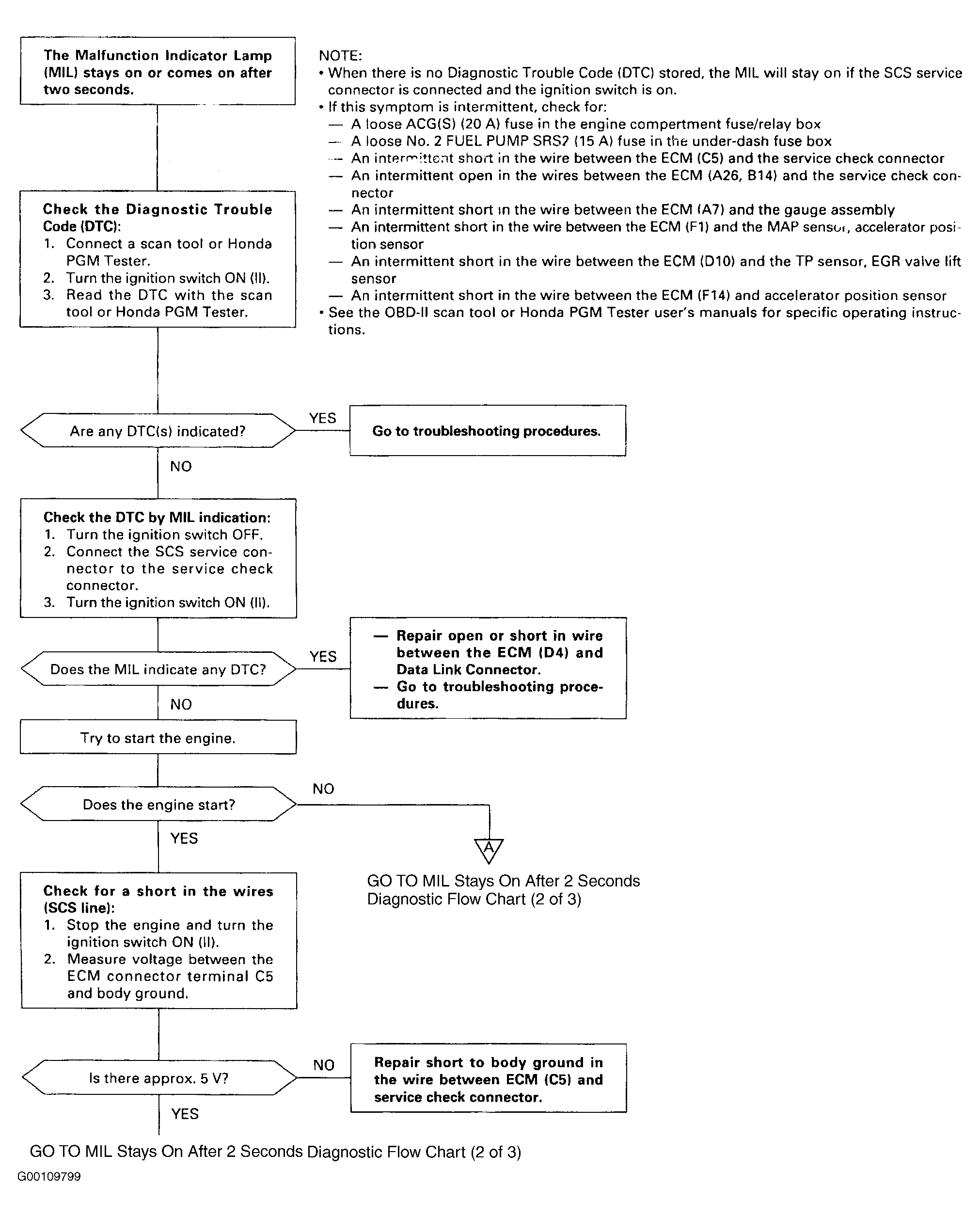

Fig 1: MIL Stays On After 2 Seconds Diagnostic Flow Chart (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

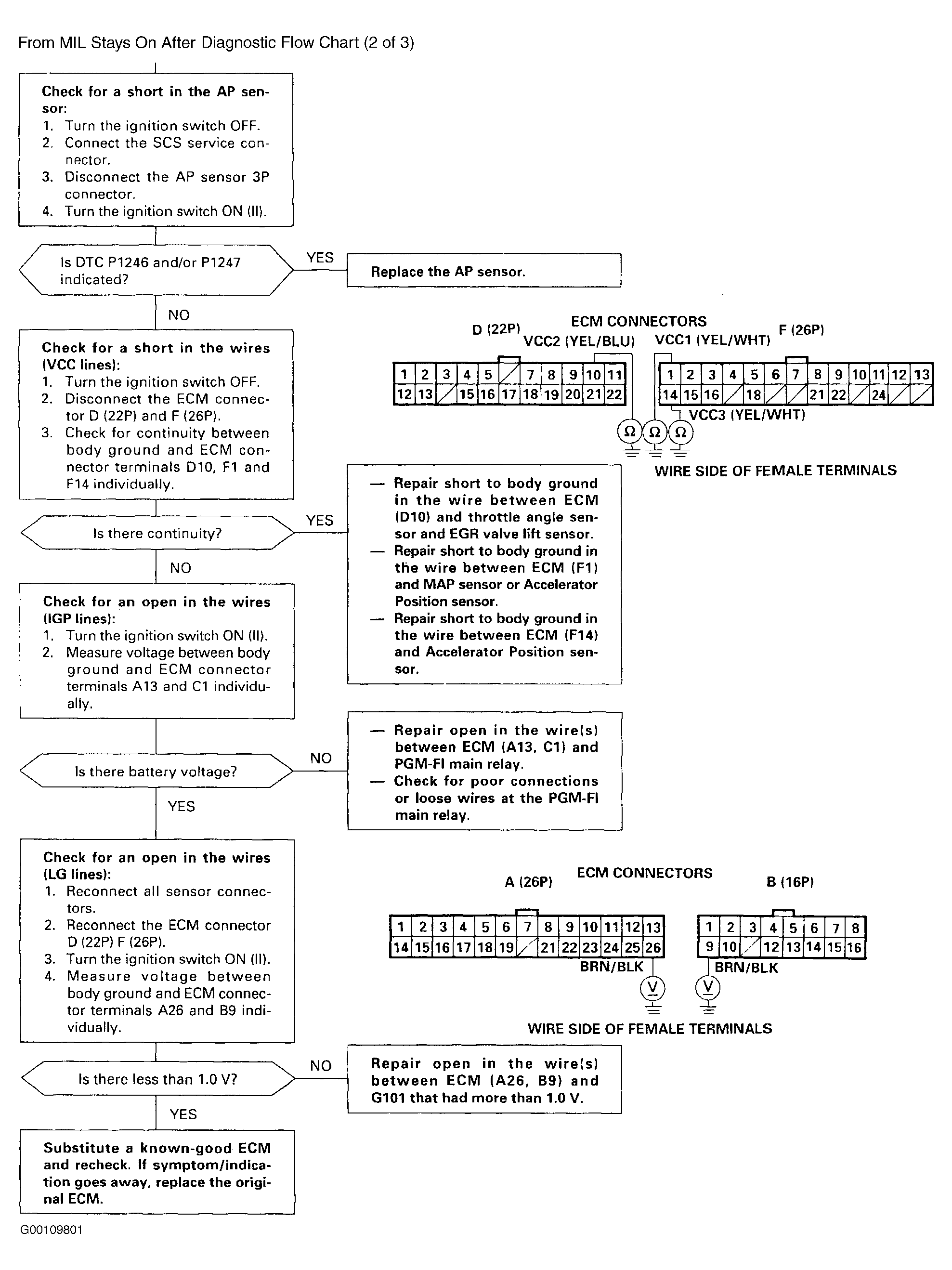

Fig 2: MIL Stays On After 2 Seconds Diagnostic Flow Chart (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

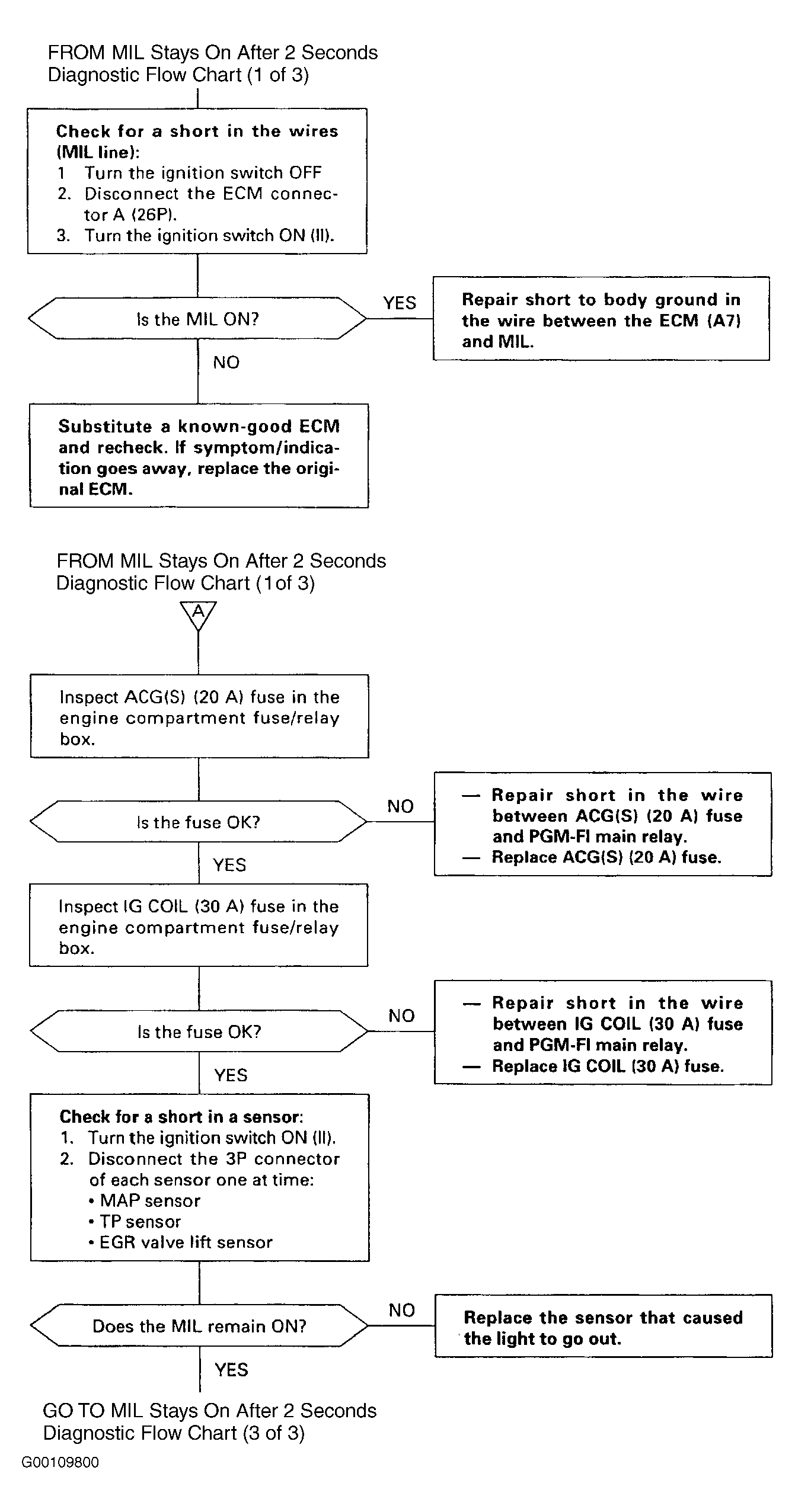

Fig 3: MIL Stays On After 2 Seconds Diagnostic Flow Chart (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
