Component Locations

NOTE: All see Figure.

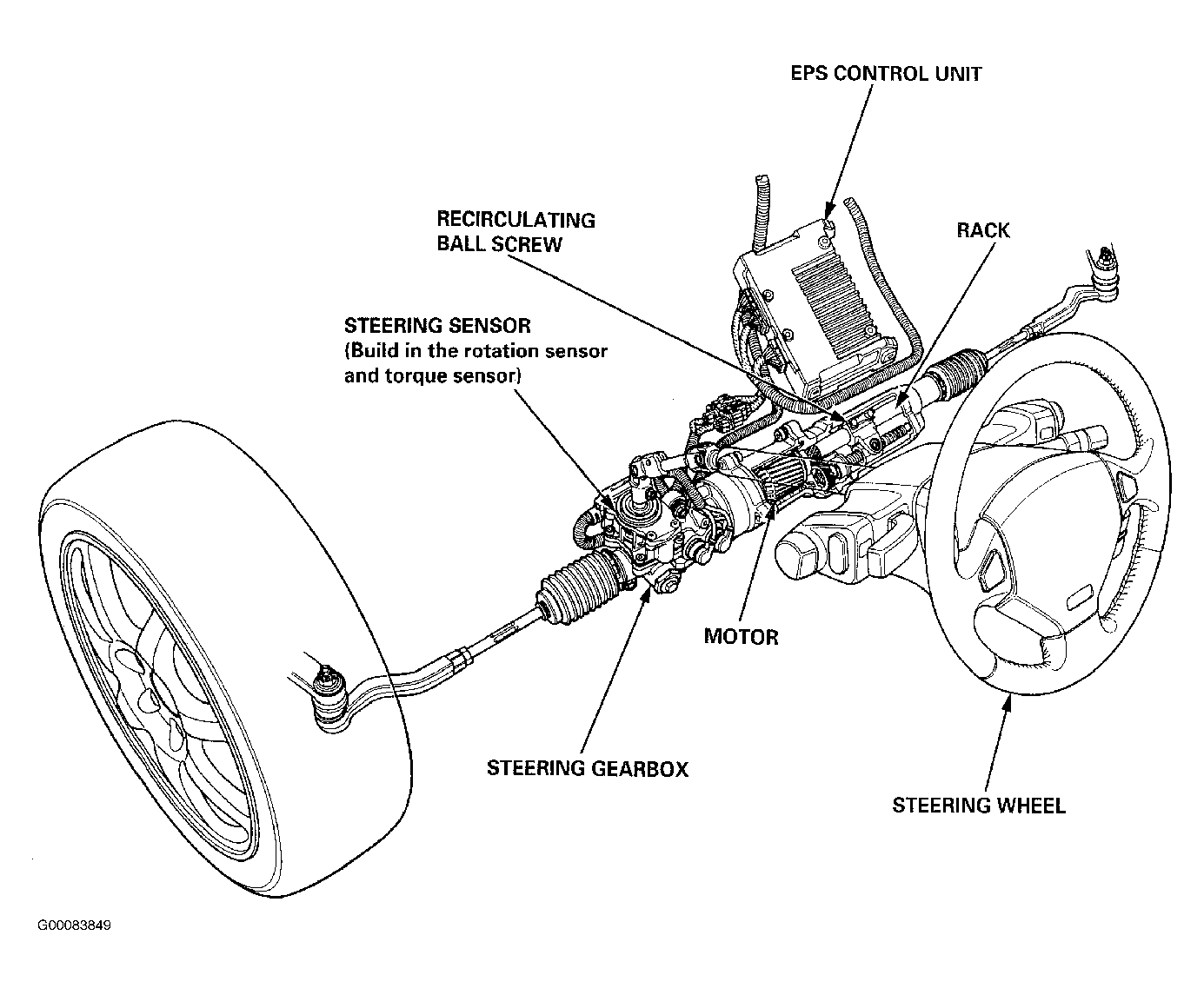

Fig 1: EPS Component Locations
G00083748Courtesy of AMERICAN HONDA MOTOR CO., INC.
COMPONENT LOCATIONS

Component Location
Ground G4 Lower, Rear of Front Compartment
Ground G403 Center of Rear Bulkhead, Behind Seats
