DTC P0500: Vehicle Speed Sensor

If the scan tool indicates DTC P0500, a low voltage problem in the vehicle speed control sensor (VSS) circuit may exist. See Fig 1 .

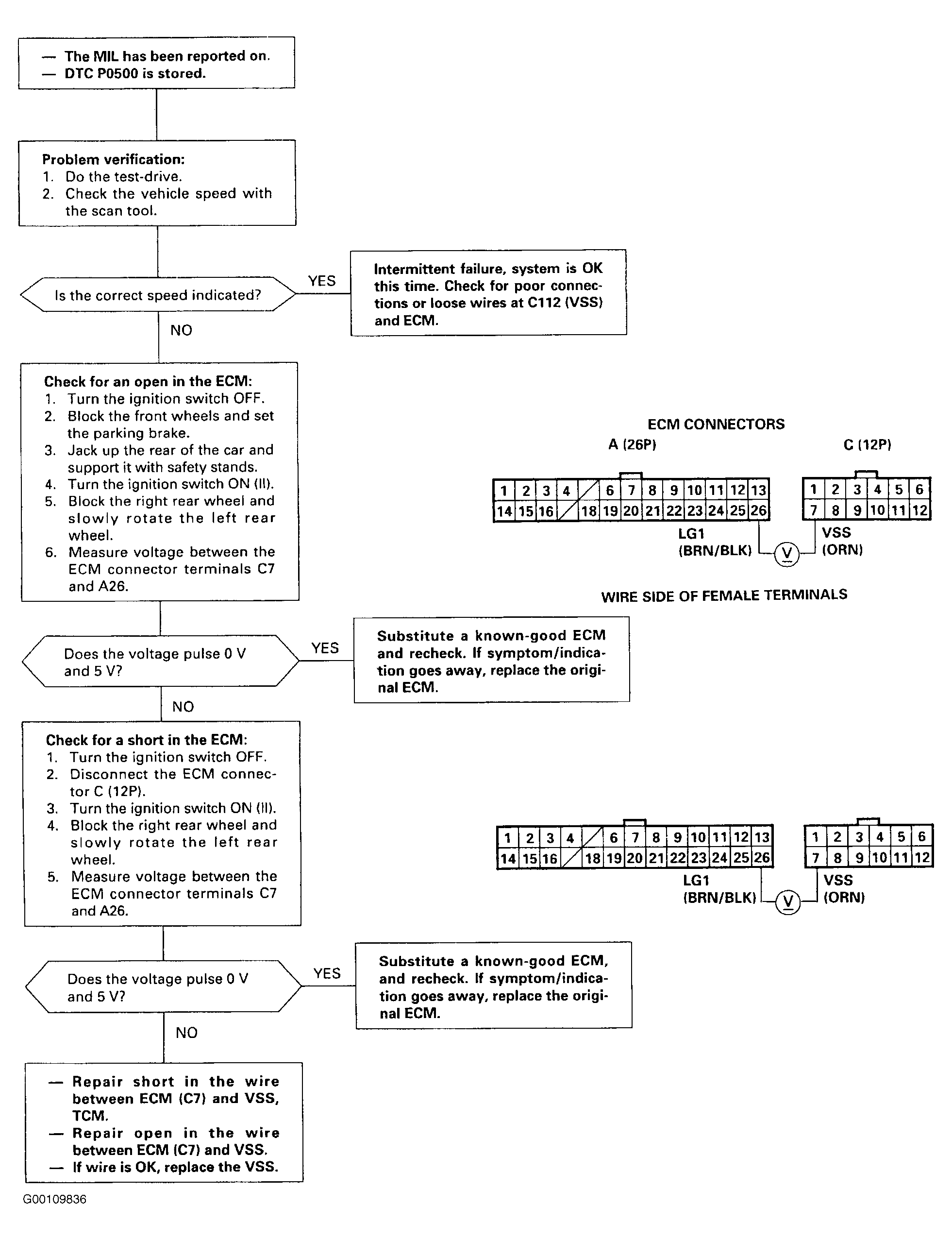

Fig 1: Vehicle Speed Sensor Circuit Diagnostic Flow Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
