Repair and Diagnosis: Transmission: Clutches: Description
The clutch uses a diaphragm spring to engage the pressure plate and is equipped with a hydraulic release system.

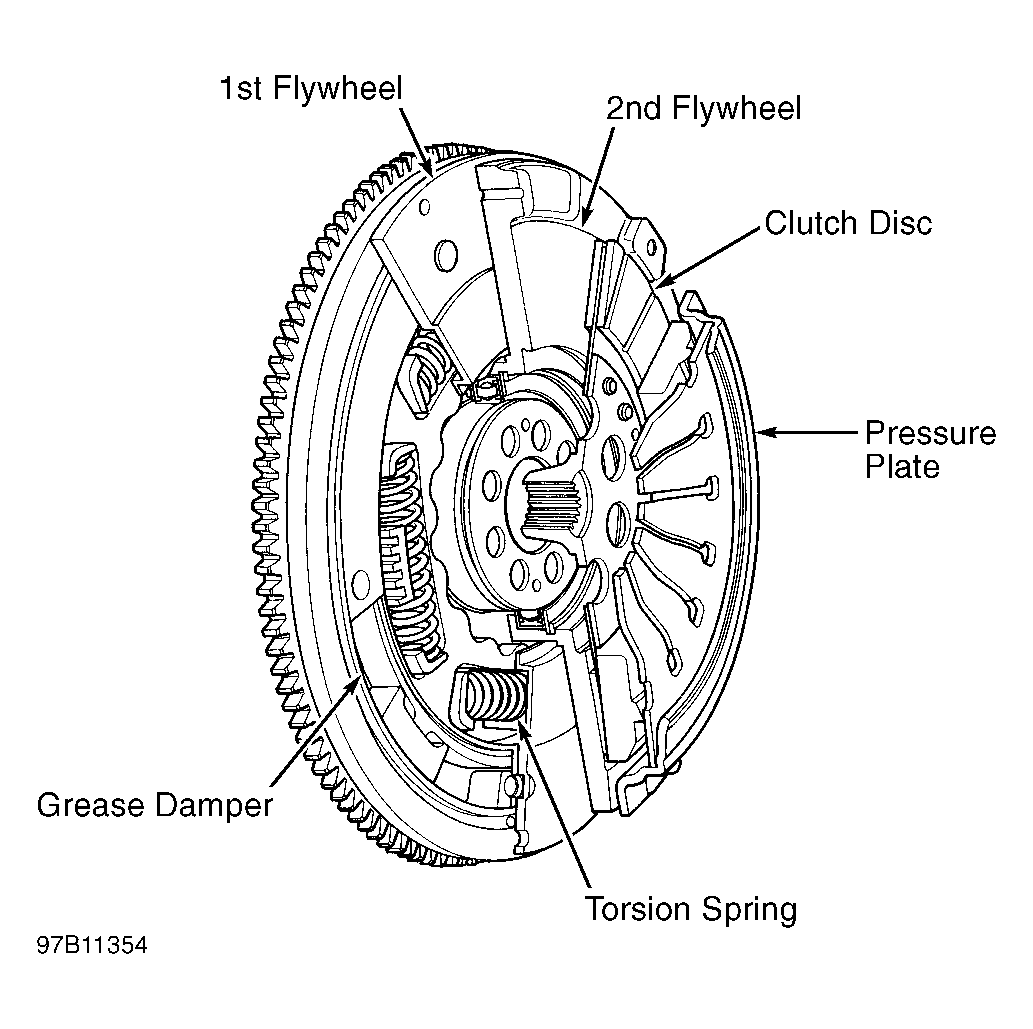

Legend is equipped with a dual-mass flywheel. Torsion springs are incorporated in between the 2 flywheels, none are used in the clutch disc. See Fig 1 .
