| A/C Compressor Mounting Bolts |
16 (22) |

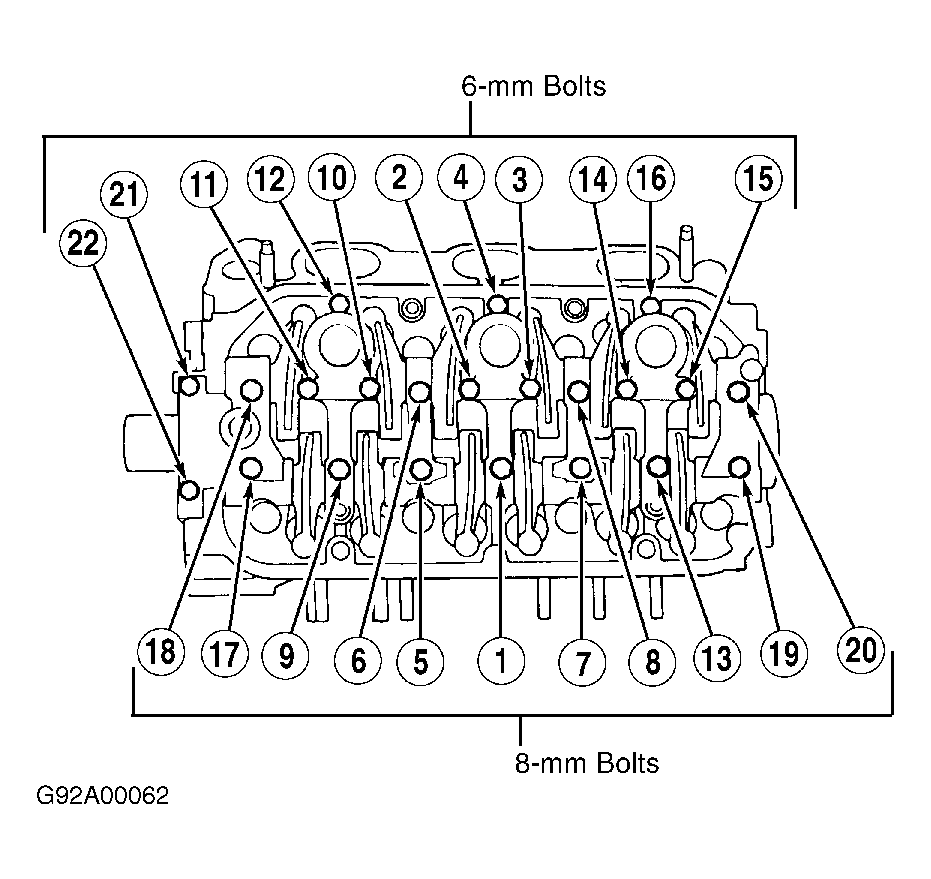

| Camshaft Bearing Cap Bolts |
| 6-mm Bolts |
|
| 8-mm Bolts |
16 (22) |
| Camshaft Pulley Bolts |
24 (32) |
| Clutch Slave Cylinder Bolts (M/T) |
16 (22) |
| Connecting Rod Cap Nuts |
33 (44) |
| Crankshaft Pulley Bolt |
177 (240) |
| Cylinder Head Bolts |
58 (78) |
| Differential-To-Oil Pan Bolts |
47 (64) |
| Engine Block-To-Transmission/Transaxle |
| Housing Bolts |
54 (73) |

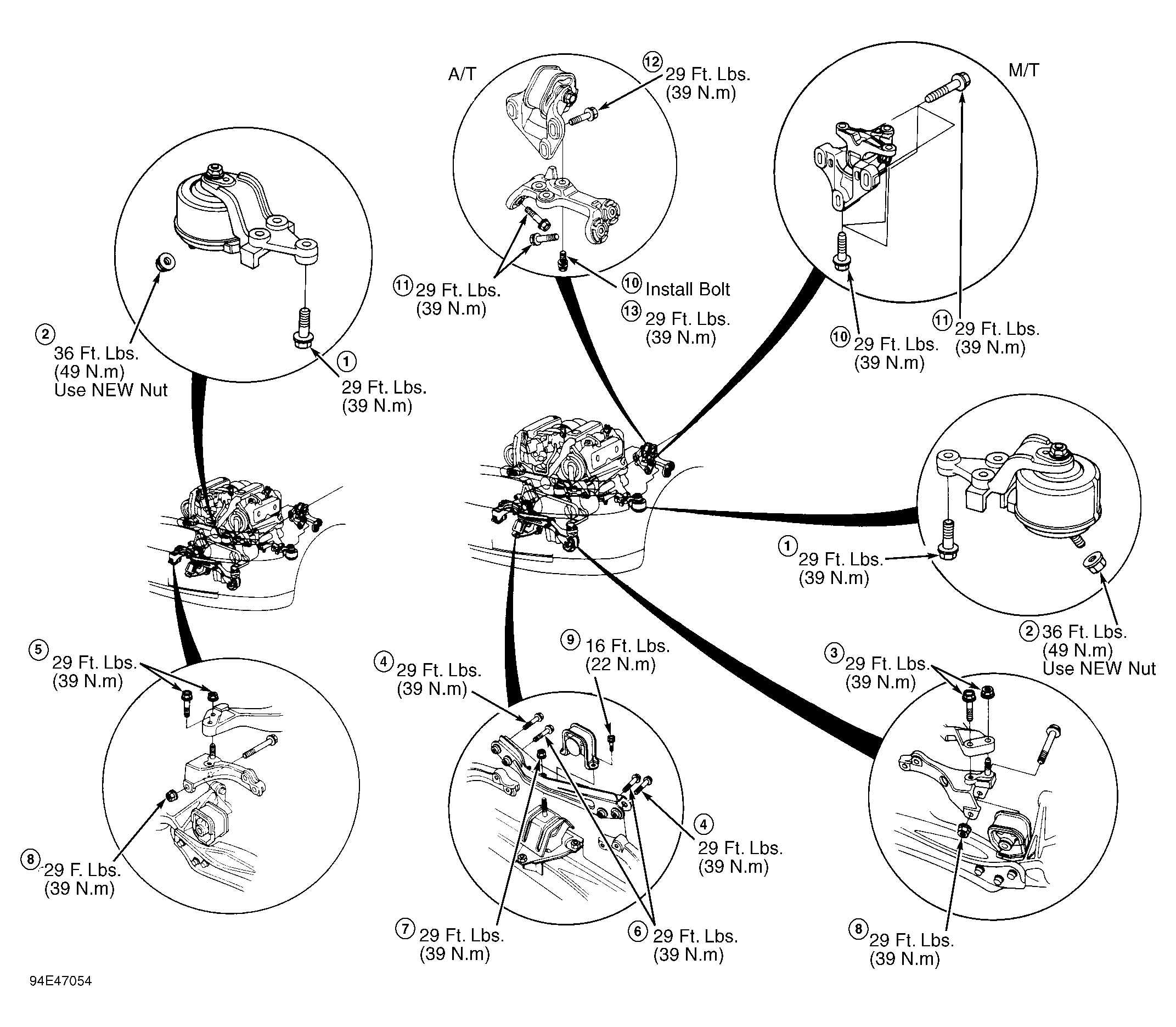

| Engine Mounts |
|
| Exhaust Manifold |
| Self-Locking Nuts |
23 (31) |
| Shroud Bolts |
16 (22) |
| Exhaust Pipe Flange Nuts |
40 (54) |
| Flexplate Bolts (A/T) |
55 (75) |
| Flywheel Bolts (M/T) |
77 (105) |
| Generator |
| Lock Bolt |
16 (22) |
| Mounting Bolt |
33 (44) |
| Idler Pulley Center Nut |
33 (44) |
| Intake Manifold Bolts/Nuts |
16 (22) |
| Lower Plate-To-Rear Beam Bolts |
28 (38) |
| Main Bearing Cap Bolts |
| 9-mm Bolts |
29 (39) |
| 10-mm Side Bolts |
36 (49) |
| 11-mm Bolts |
58 (78) |
| Oil Pan Bolts |
16 (22) |
| Oil Pump Housing Bolts |
| 6-mm Bolts |
|
| 8-mm Bolts |
16 (22) |
| Power Steering Pump |
| Lock Nut |
16 (22) |
| Mounting Bolt |
33 (44) |
| Strut Bar Bolts (Engine Compartment) |
16 (22) |
| TCS Control Valve Bracket Bolts |
| Lower Bracket |
16 (22) |
| Upper Bracket |
|
| Timing Belt Tension Adjuster Bolt |
32 (43) |
| Water Pump Bolts |
| 6-mm Bolts |
|
| 8-mm Bolts |
16 (22) |
| INCH Lbs. (N.m) |
| Coolant Passage Manifold Bolts |
106 (12) |
| Crankshaft Rear Seal Cover Bolts |
106 (12) |
| Cylinder Head Cover Nuts |
89 (10) |
| Fuel Filter Service Bolt |
106 (12) |
| Timing Belt Cover Bolts |
106 (12) |
