Steering Column Covers

Disable air bag system. See AIR BAG RESTRAINT SYSTEM article. Pry courtesy light controller and TCS switch from dashboard lower cover. Remove 3 screws and dashboard lower cover. Remove steering column tilt cover. Remove steering column cover mounting screws. See Fig 1 . Remove steering column upper and lower covers and disconnect steering column switch connector. To install, reverse removal procedure.

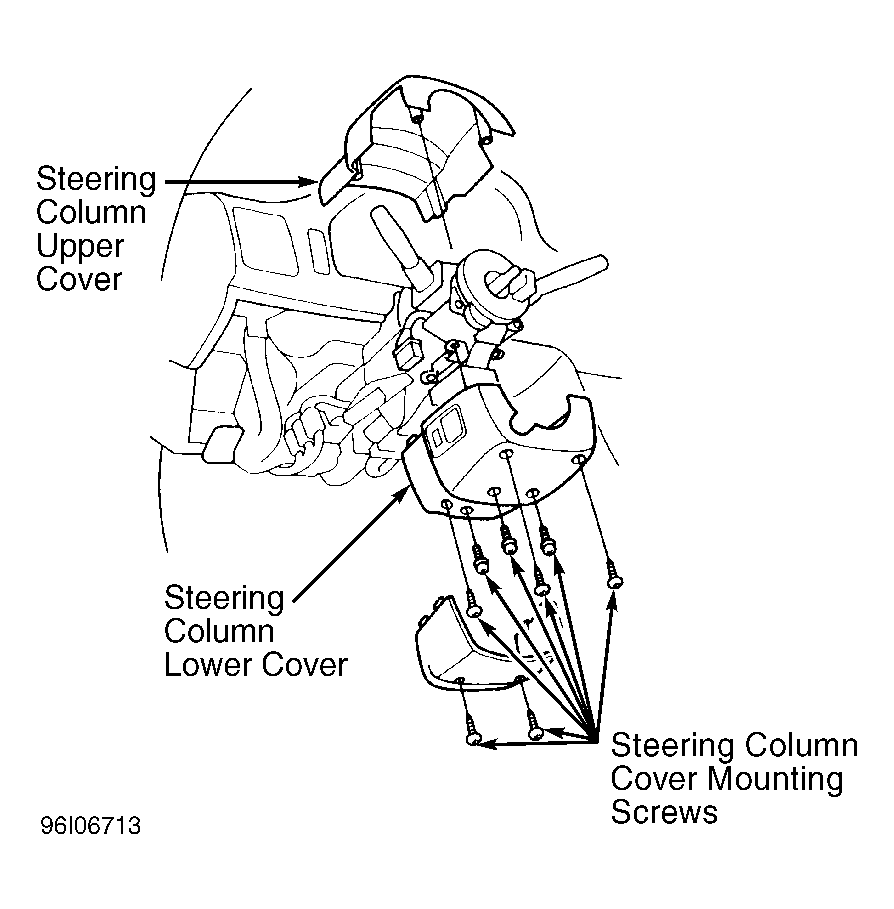

Fig 1: Removing Steering Column Covers
G96I06713Courtesy of AMERICAN HONDA MOTOR CO., INC.
