MAINSHAFT Speed Sensor

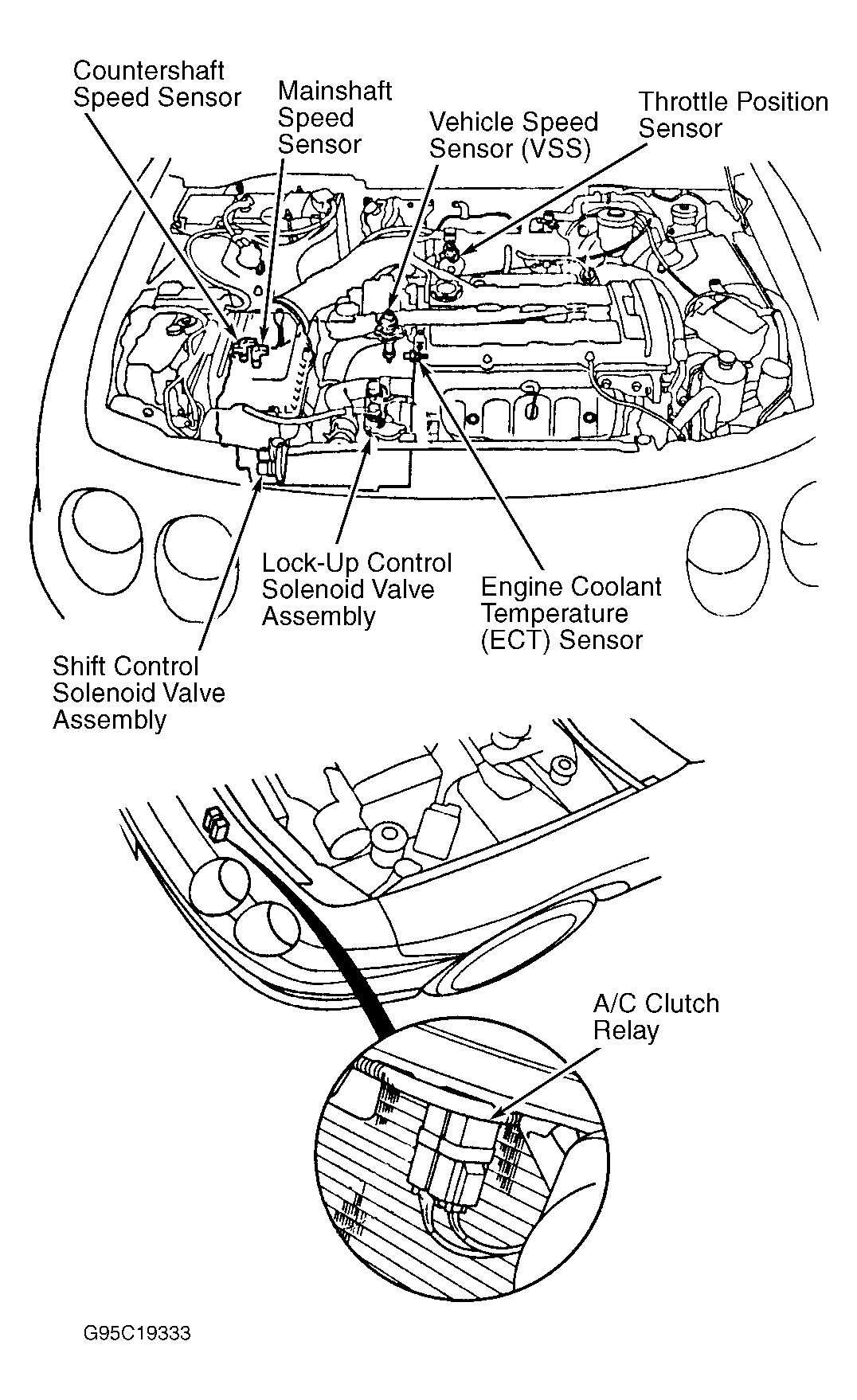

Disconnect electrical connector from mainshaft speed sensor located on top of transaxle. See Figure . Using ohmmeter, measure resistance between terminals on electrical connector. Replace mainshaft speed sensor if resistance is not 400-600 ohms.
