Shift Control Solenoid Valves

  1. Shift control solenoid valves are located on transaxle. See Figure . Disconnect electrical connector at shift control solenoid valves.
  2. Using ohmmeter, check resistance between terminal No. 1 (solenoid valve "A") or terminal No. 2 (solenoid valve "B") and ground. See Fig 1 .
  3. Resistance should be 14-16 ohms. Replace shift control solenoid valve assembly if resistance of either solenoid valve is not within specification.
  4. Check shift control solenoid valve operation. Ensure solenoid valve body is grounded. Apply battery voltage to terminal No. 1 (solenoid valve "A") or terminal No. 2 (solenoid valve "B").
  5. Clicking sound should be heard, indicating solenoid valve operation. Replace shift control solenoid valve assembly if either solenoid valve fails to operate.

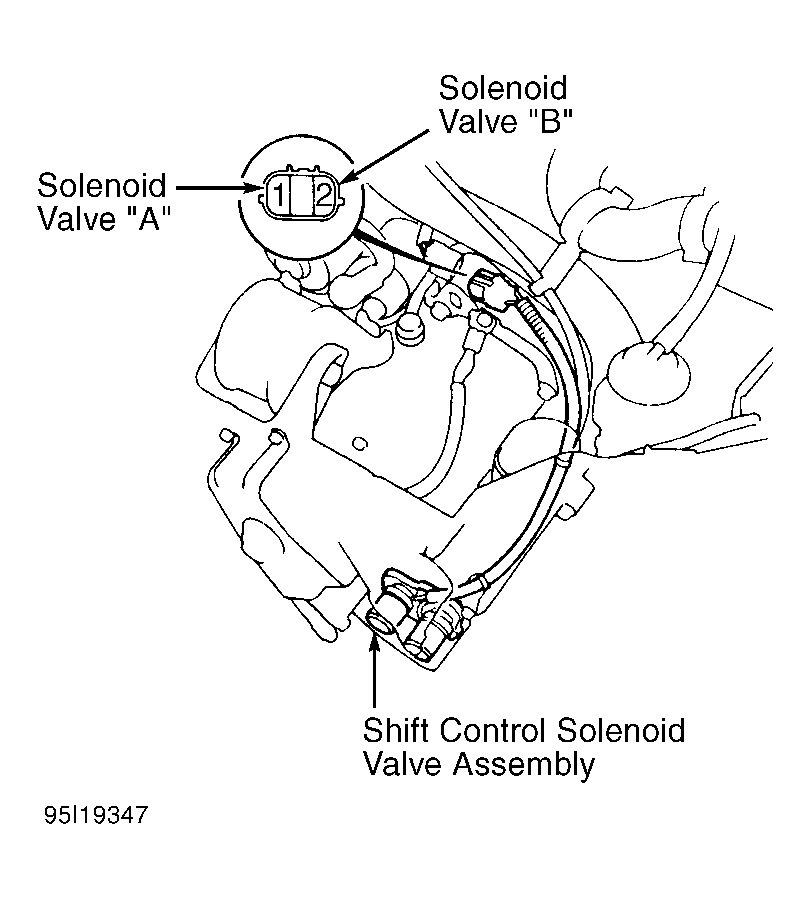

Fig 1: Shift Control Solenoid Valve Electrical Connector Terminals
G95I19347Courtesy of AMERICAN HONDA MOTOR CO., INC.
