Component Locations

For component locations see Fig 1 - Fig 6 .

COMPONENT LOCATIONS

Component	Location
Engine Coolant Temperature Switch A	Bottom left side of radiator. See Fig 1 .
Engine Coolant Temperature Switch B	Front of engine, on coolant outlet. See Fig 1 .
Radiator Fan Control Module	Behind glove box, behind ABS control unit. See Fig 1 .
Radiator Fan Motor	Behind right side of radiator. See Fig 1 .
Radiator Fan Relay	Left side of radiator, mounted on bracket. See Fig 1 & Fig 2 .
G101	Left Side Of Engine Near Evaporative Emission (EVAP) Purge Control Solenoid Valve. See Fig 3 .
G301	Left Side Of Engine Compartment. See Fig 4 .
G401	Behind Left Kick Panel. See Fig 5 .
G404	Behind Right Kick Panel. See Fig 6 .

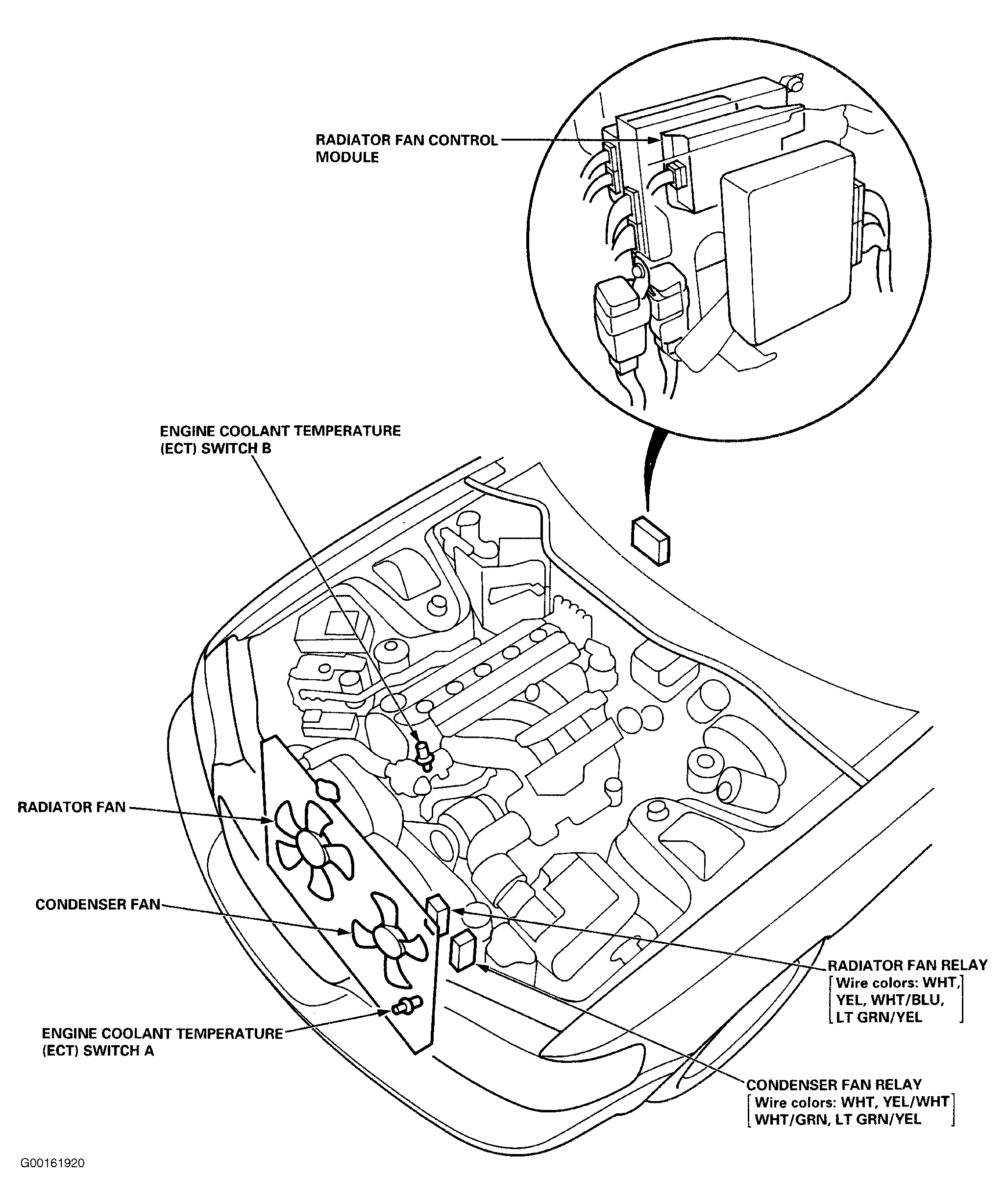

Fig 1: Locating Radiator Fan Components

G00161920

Courtesy of AMERICAN HONDA MOTOR CO., INC.

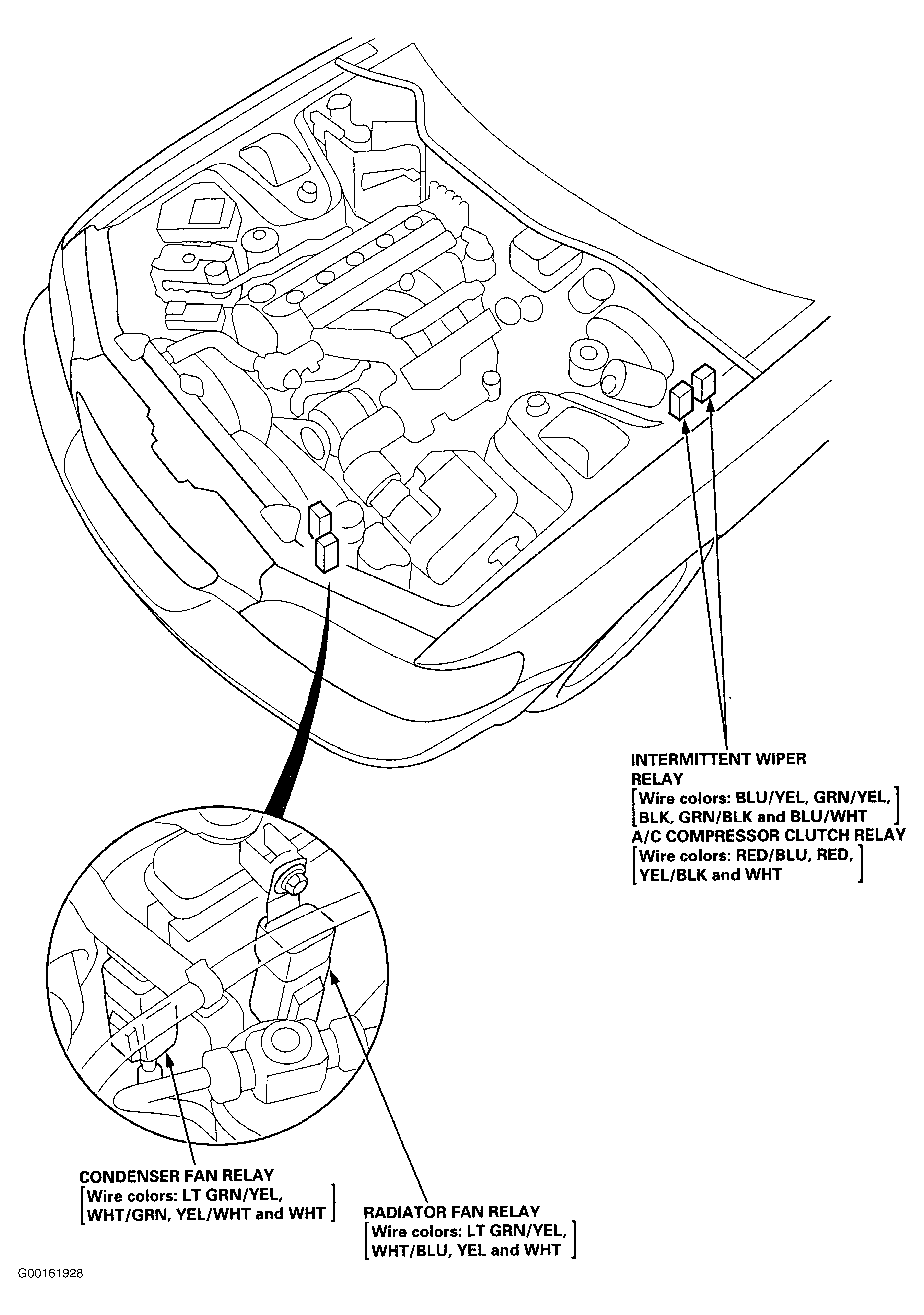

Fig 2: Locating Radiator Fan Relay

G00161928

Courtesy of AMERICAN HONDA MOTOR CO., INC.

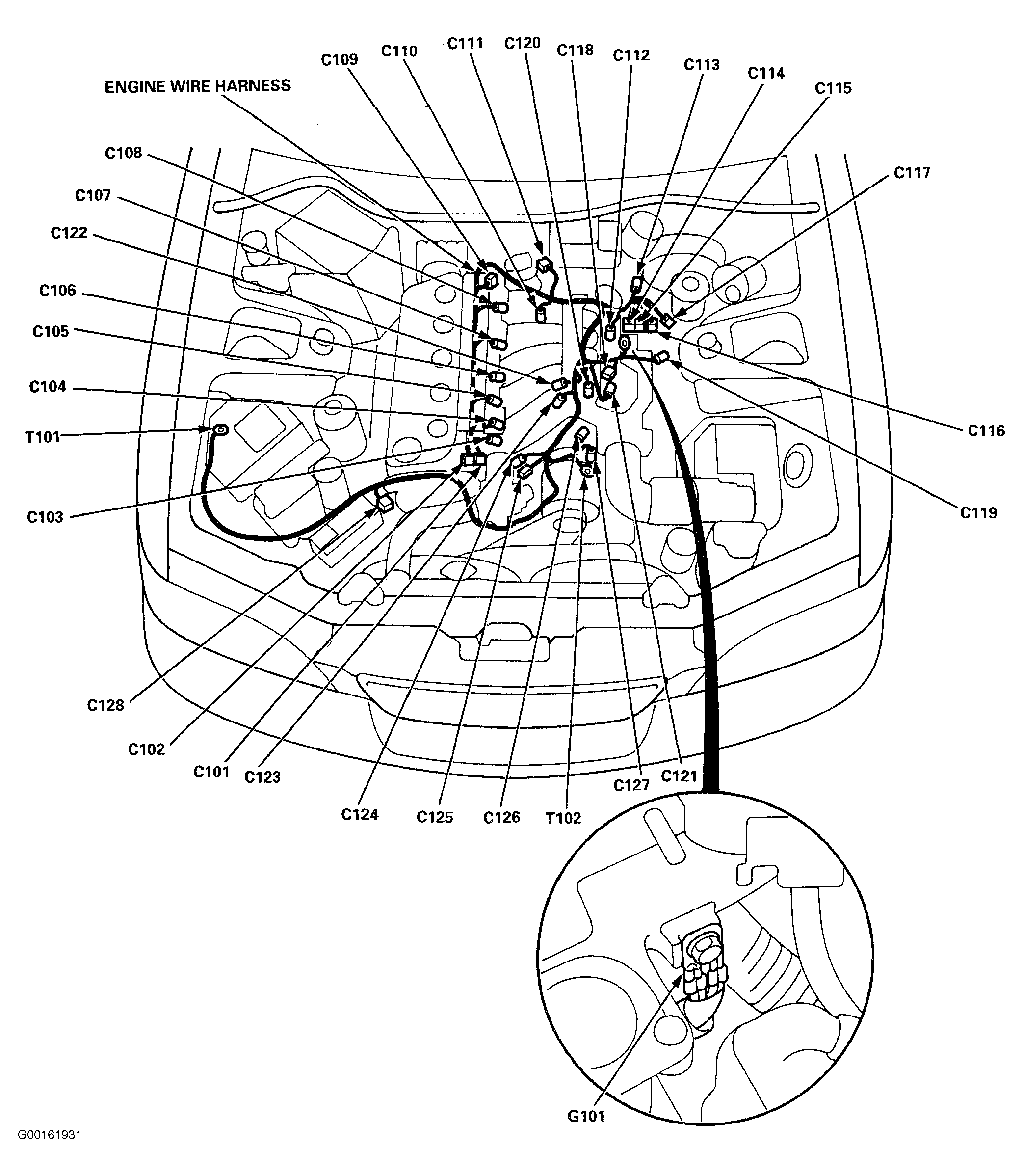

Fig 3: Locating Ground G101

G00161931

Courtesy of AMERICAN HONDA MOTOR CO., INC.

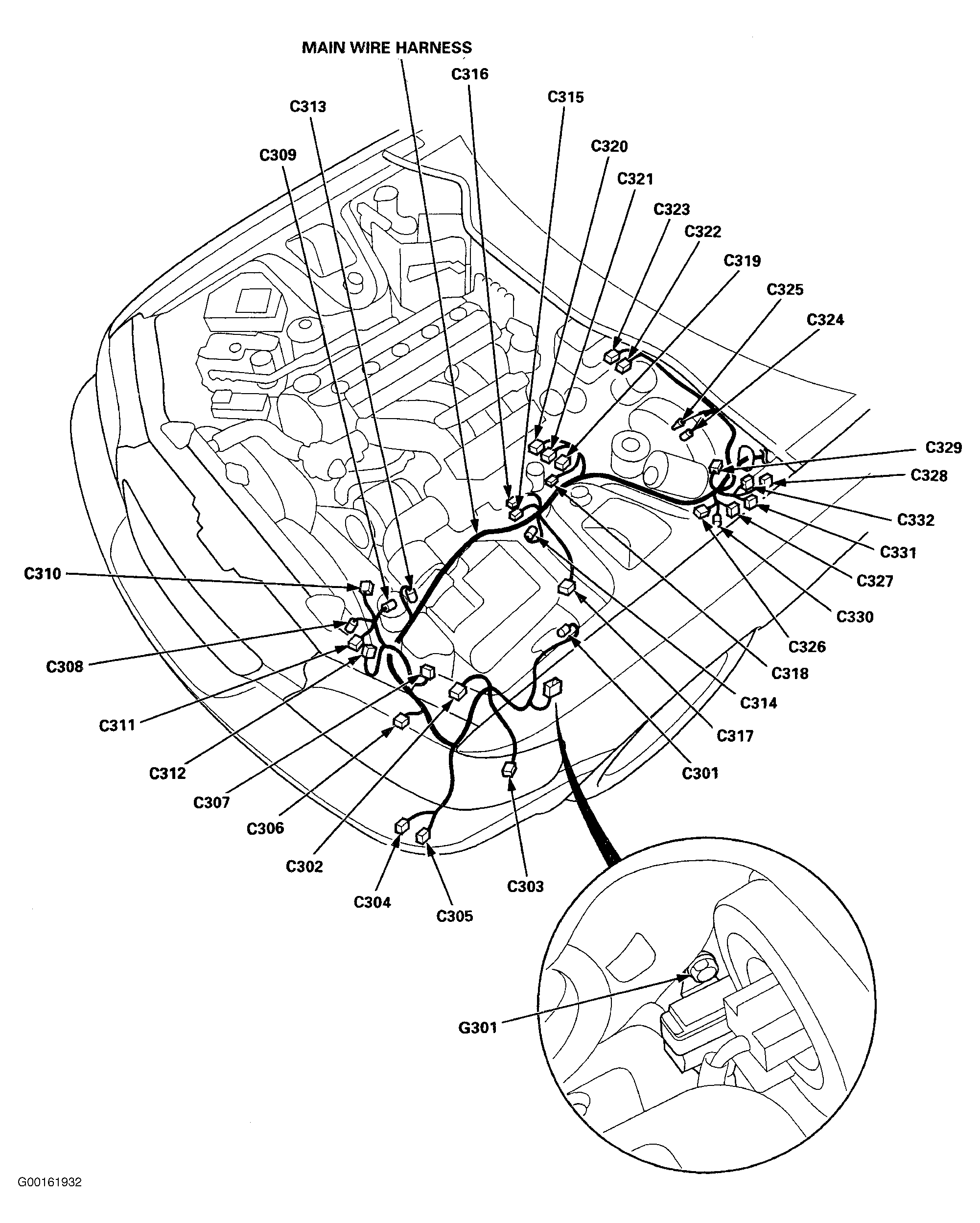

Fig 4: Locating Ground G301

G00161932

Courtesy of AMERICAN HONDA MOTOR CO., INC.

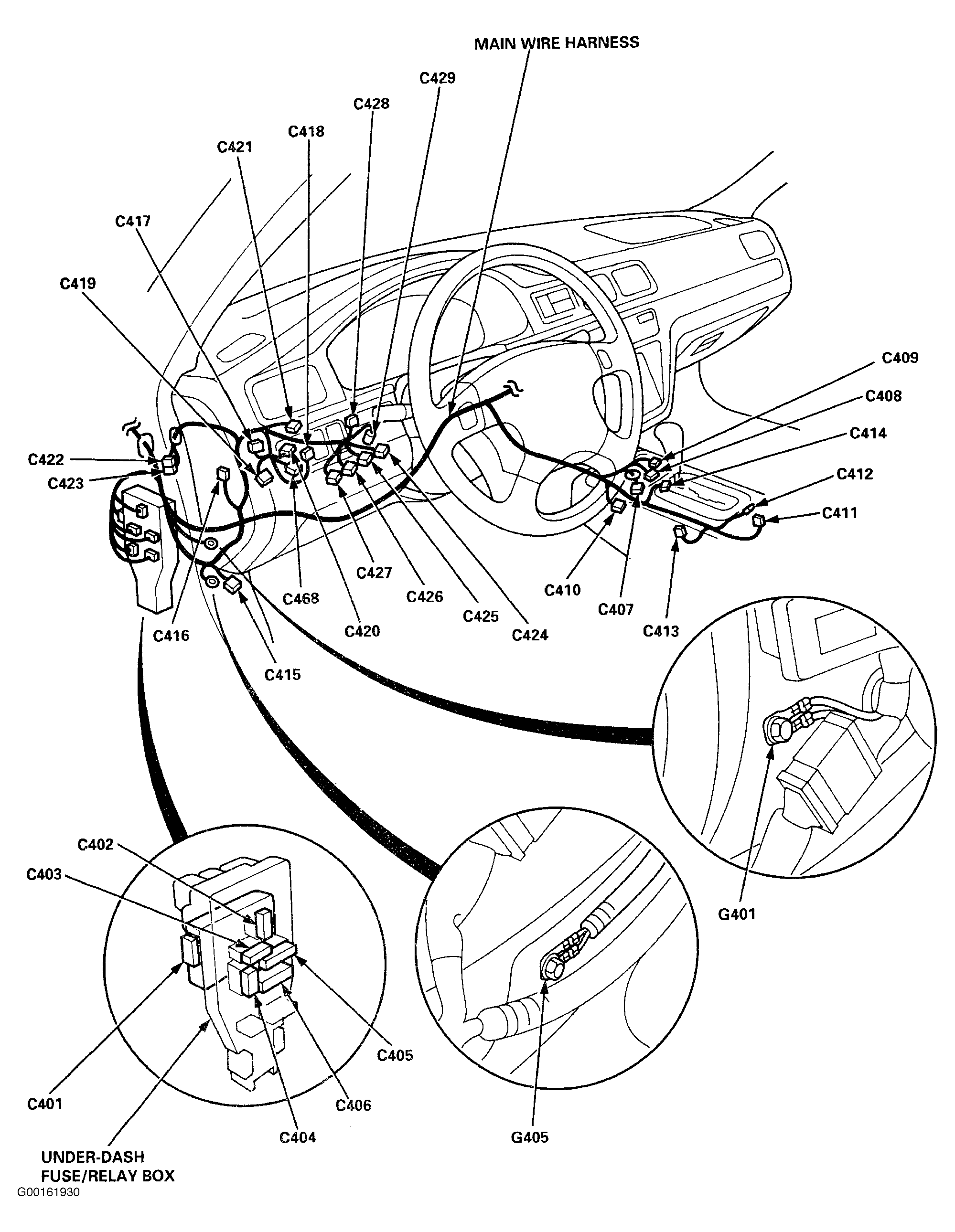

Fig 5: Locating Ground G401

G00161930

Courtesy of AMERICAN HONDA MOTOR CO., INC.

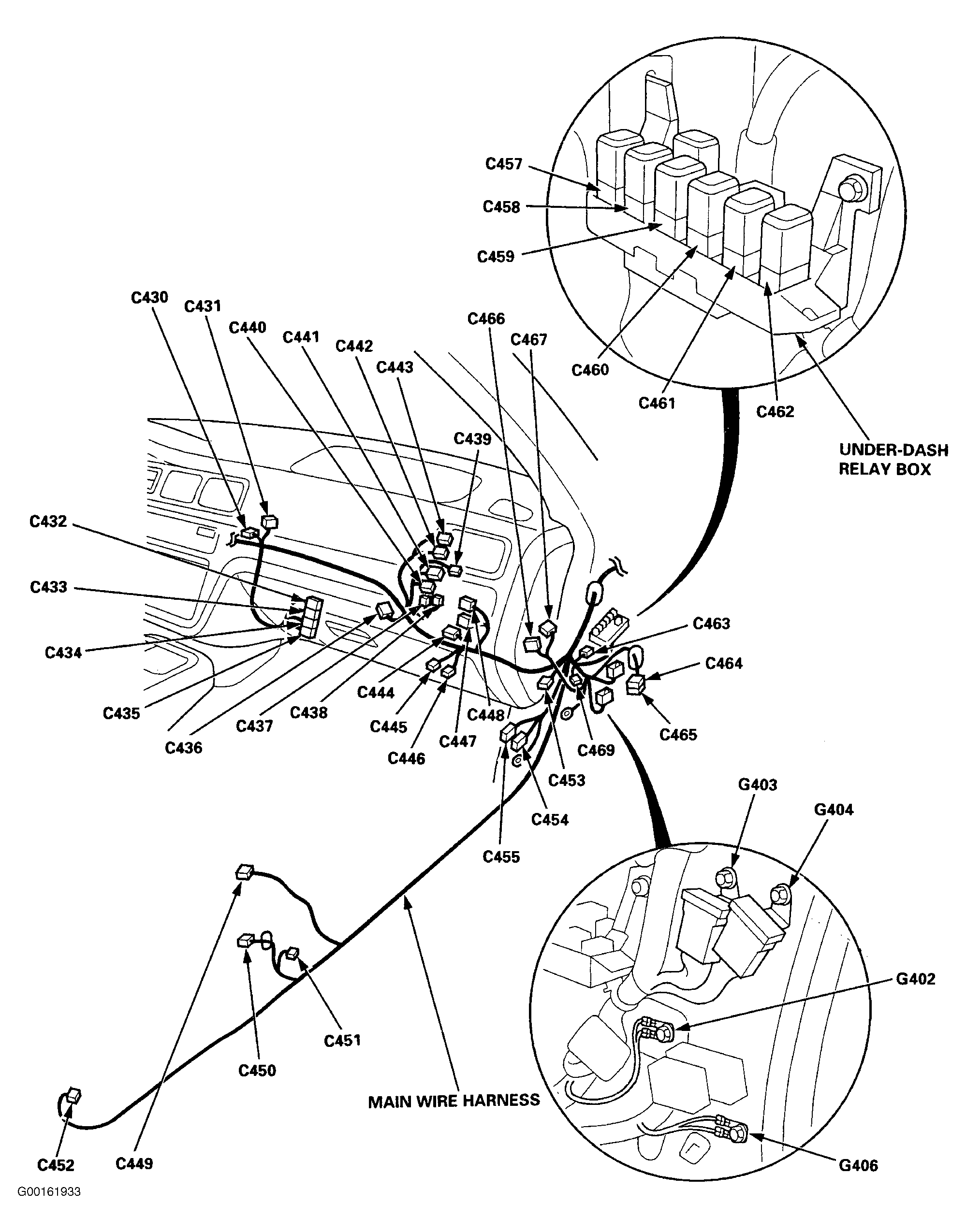

Fig 6: Locating Ground G404

G00161933

Courtesy of AMERICAN HONDA MOTOR CO., INC.
