Abs Indicator Light Does Not Go Out

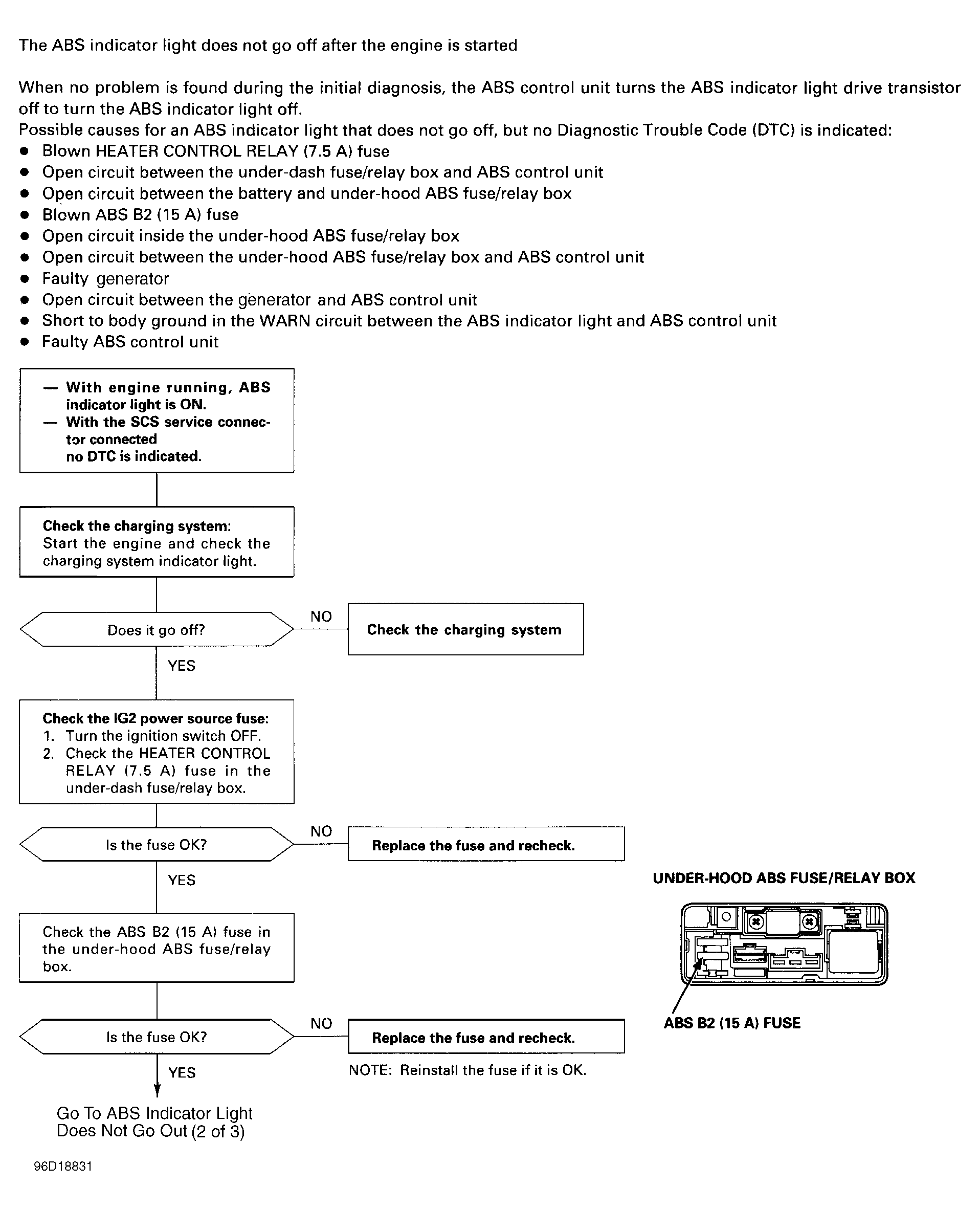

Fig 1: ABS Indicator Light Does Not Go Out (1 Of 3)
G96D18831Courtesy of AMERICAN HONDA MOTOR CO., INC.

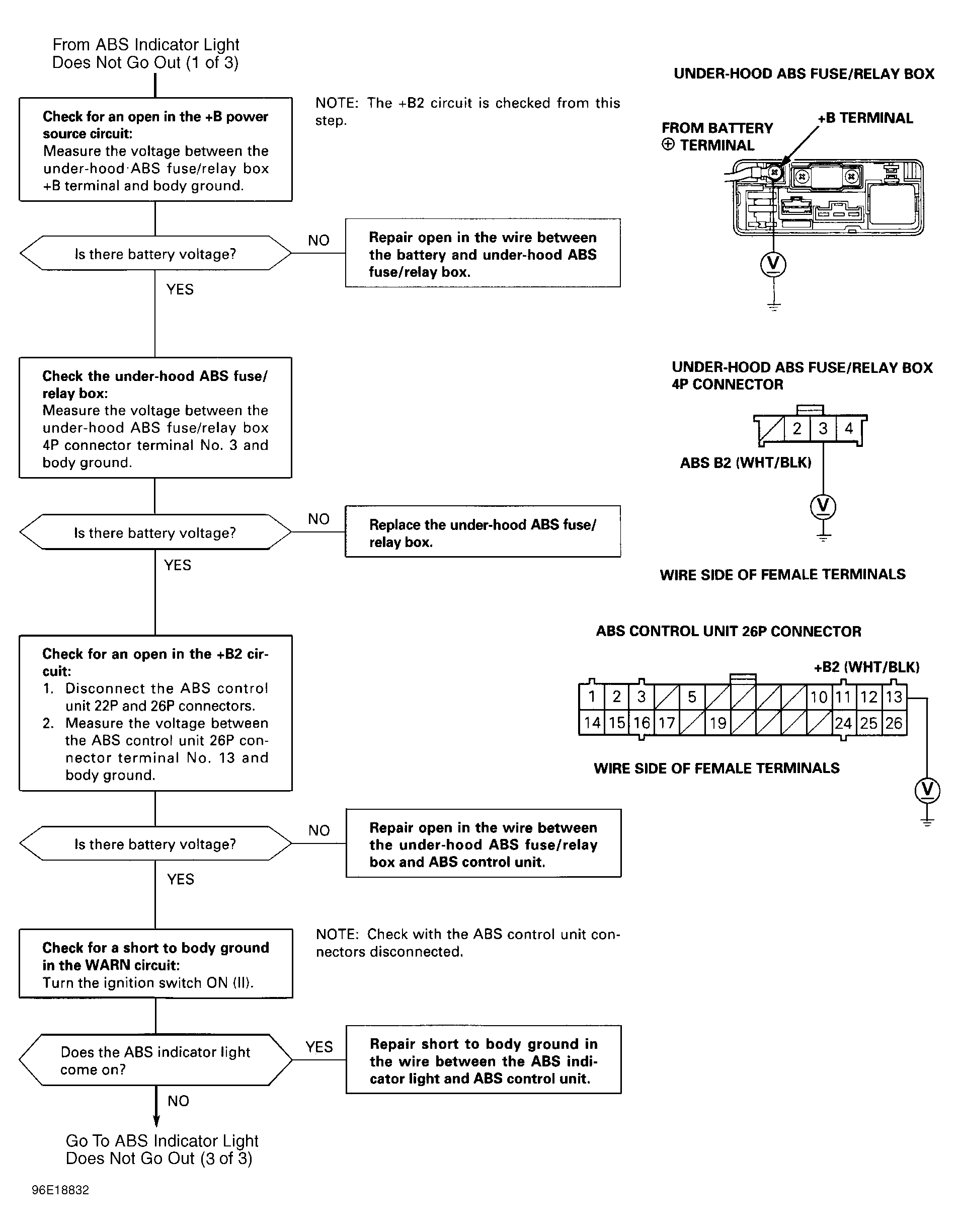

Fig 2: ABS Indicator Light Does Not Go Out (2 Of 3)
G96E18832Courtesy of AMERICAN HONDA MOTOR CO., INC.

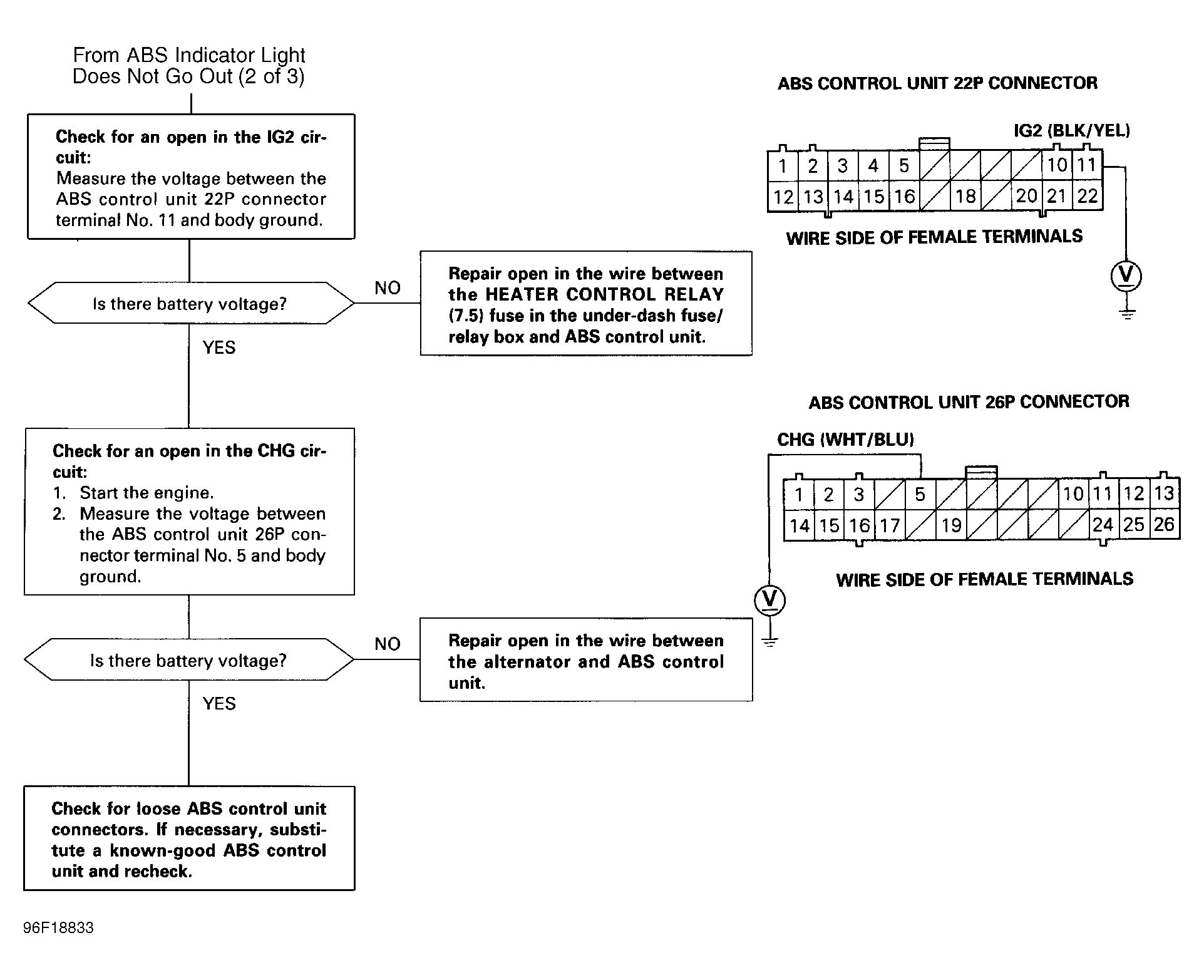

Fig 3: ABS Indicator Light Does Not Go Out (3 Of 3)
G96F18833Courtesy of AMERICAN HONDA MOTOR CO., INC.
