Alarm Indicator Light Test

Remove door panel. See DOOR PANEL  under REMOVAL & INSTALLATION. Disconnect alarm indicator connector. Apply battery power as indicated. See Fig 1 . Alarm indicator light should be illuminated. Replace alarm indicator light as required.

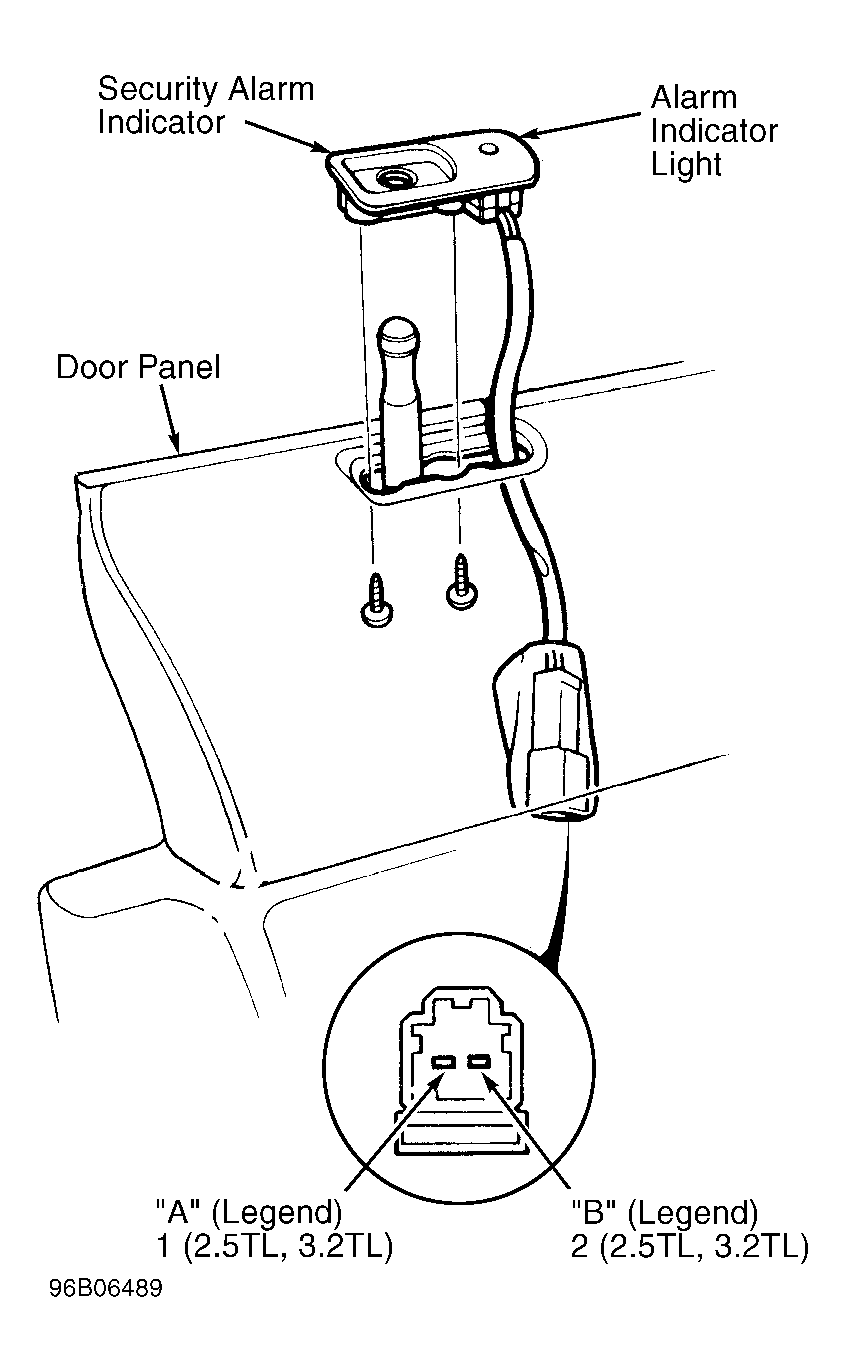

Fig 1: Identifying Alarm Indicator Light Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
