Rear Window Defogger Timer Circuit

See Figure for connector identification.

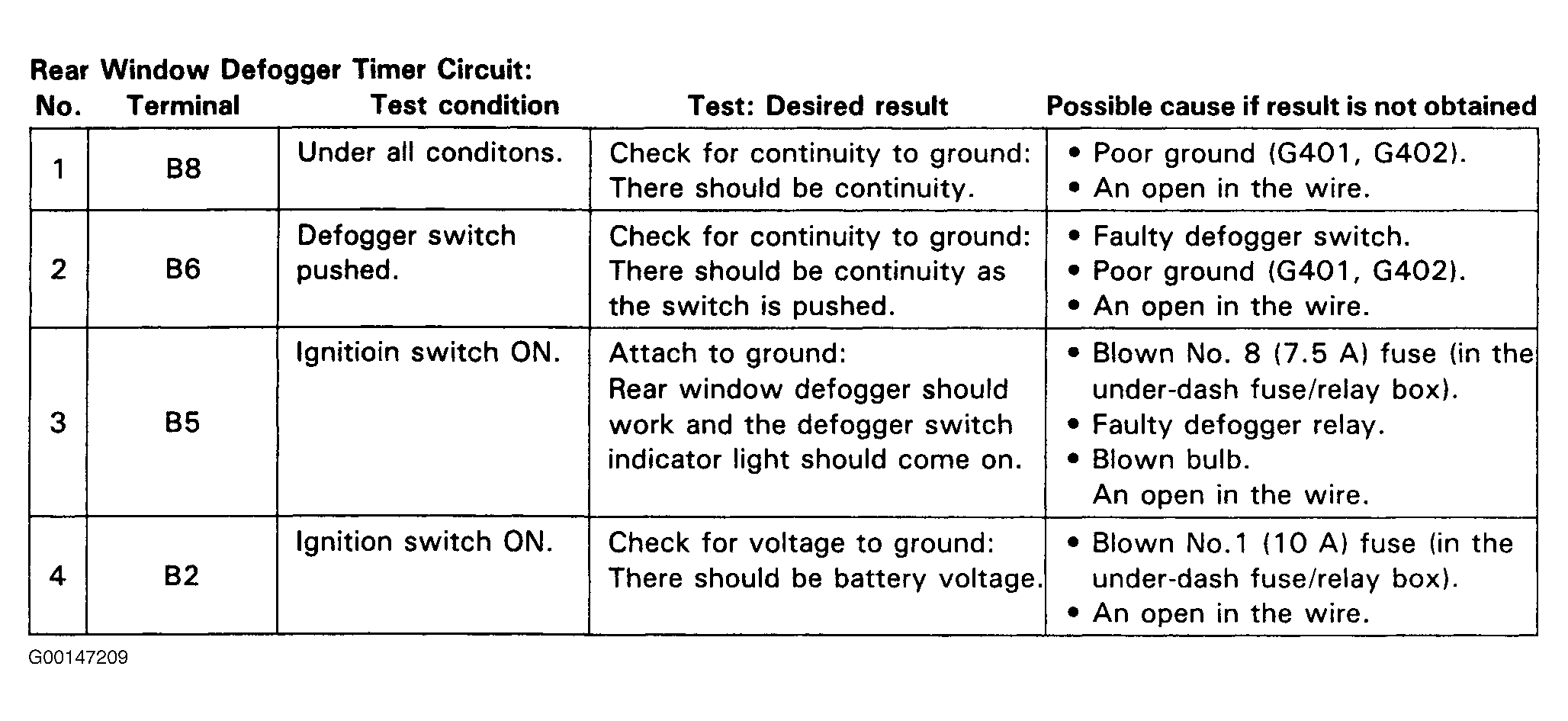

Fig 1: Rear Window Defogger Timer Circuit Input Test

G00147209

Courtesy of AMERICAN HONDA MOTOR CO., INC.
