Entry Light Timer System
Entry Light Timer System
See
Figure
for connector identification.

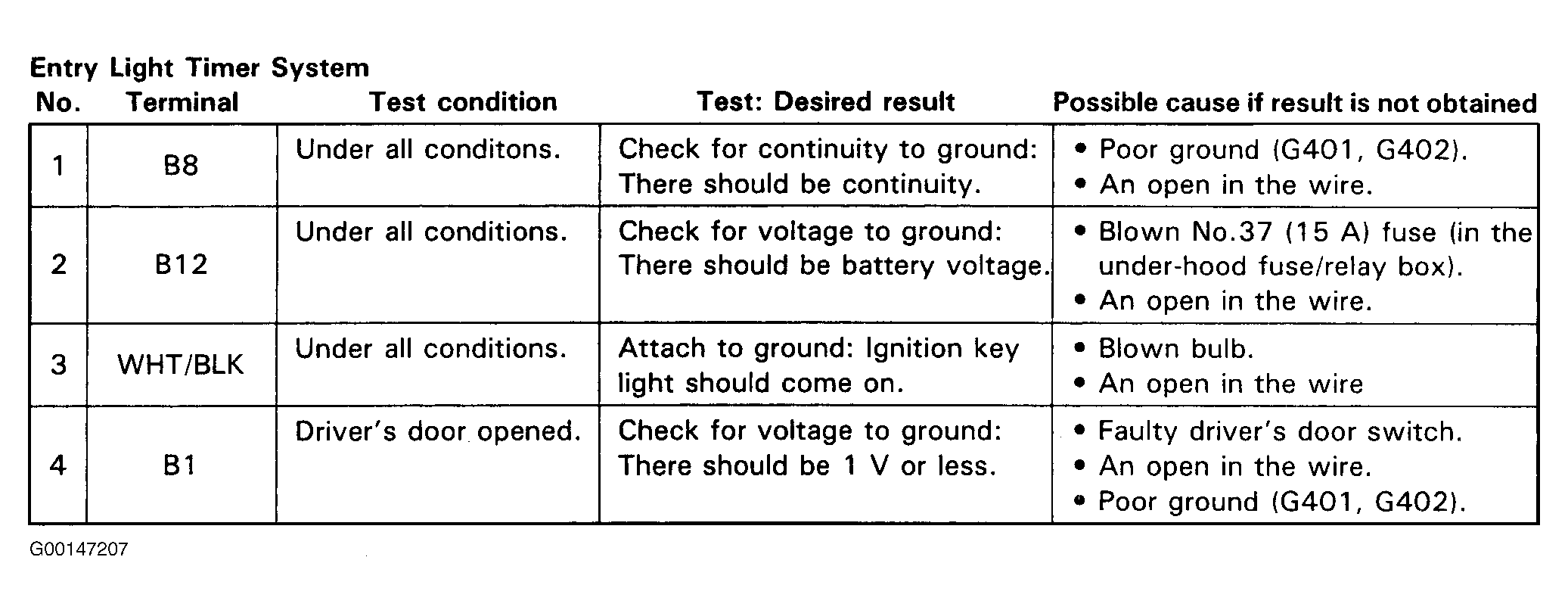

Fig 1: Entry Light Timer System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
