| Countershaft Lock Nut |
103 (140) |
| Differential Assembly Drain Plug |
35 (47) |
| Differential Assembly Mounting Bolt |
| Lower 12 mm Mounting Bolt |
55 (75) |
| Upper 6 mm Mounting Bolt |
|
| Upper 12 mm Mounting Bolt |
55 (75) |
| Differential Assembly Oil Filler Plug |
35 (47) |
| Differential Case Cover Bolt |
35 (47) |
| Drain Plug |
36 (49) |
| Drive Pinion Lock Nut |
188-239 (255-325) |
| Joint Bolt |
21 (29) |
| Mainshaft Lock Nut |
103 (140) |
| Mount Bracket Bolt |
40 (54) |
| Oil Cooler Bolt |
| 6-mm Bolt |
|
| 8-mm Bolt |
21 (29) |
| Oil Pump Body Bolt |
| 6-mm Bolt |
|
| 8-mm Bolt |
13 (18) |
| Parking Brake Roller Guide Bolt |
22 (30) |
| Rear Cover Sealing Bolt |
15 (20) |
| Ring Gear Bolt |
102 (138) |
| Sealing Bolt |
59 (80) |
| Side Plug |
35 (47) |

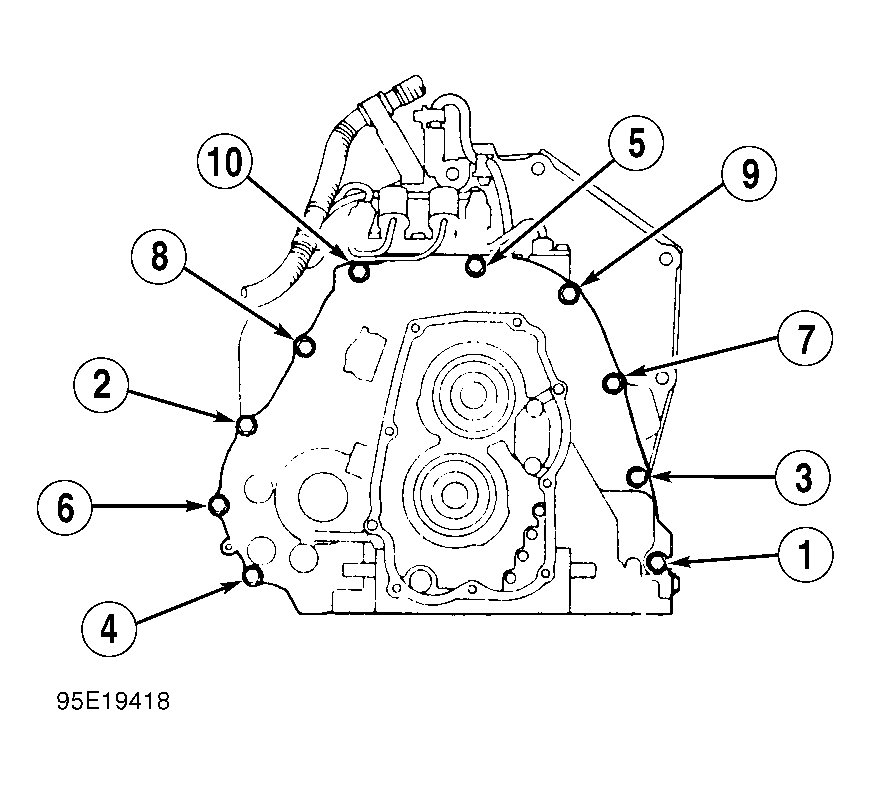

| Transaxle Housing Bolt |
| 8-mm Bolt |
25 (34) |
| 10-mm Bolt |
33 (45) |
| Transaxle Housing Sealing Bolt |
36 (49) |
| Transaxle Mount Bolt |
47 (64) |
| Wheel Lug Nut |
80 (109) |
| INCH Lbs. (N.m) |
| Breather Chamber Bolt |
106 (12) |
| Control Shaft Collar Bolt |
120 (14) |
| Detent Lever Bolt |
120 (14) |
| Dipstick Tube Bolt |
106 (12) |
| Flange Nut |
72 (8) |
| Fluid Strainer Bolt |
106 (12) |
| Harness Cover Bolt |
106 (12) |
| Lower Valve Body Assembly Bolt |
106 (12) |
| Lubrication Pipe Bolt |
106 (12) |
| Magnet Retaining Bolt |
106 (12) |
| Main Valve Body Cover Bolt |
106 (12) |
| Main Valve Body Cover Plate Bolt |
106 (12) |
| NC & NM Speed Sensor Bolt |
106 (12) |
| Oil Pan Bolt |
106 (12) |
| Oil Pass Body Bolt |
106 (12) |
| Parking Brake Stopper Bolt |
120 (14) |
| Rear Cover Bolt |
106 (12) |
| Regulator Valve Body Bolt |
106 (12) |
| Regulator Valve Body Lock Bolt |
106 (12) |
| Reverse Idler Gear Shaft Holder Bolt |
106 (12) |
| Servo Body Bolt |
106 (12) |
| Servo Detent Base Bolt |
106 (12) |
| Shift Control Solenoid Valve Assembly Bolt |
106 (12) |
| Shift Control Solenoid Valve Harness Bolt |
106 (12) |
| Shift Fork Bolt |
120 (14) |
| Shift Position Sensor Bolt |
106 (12) |
| Throttle Valve Body Bolt |
106 (12) |
| Transaxle Sub-Harness Bolt |
106 (12) |
| 2nd Accumulator Body Bolt |
106 (12) |
