Seat Belt Reminder & Key-In System
Seat Belt Reminder & Key-In System
See
Figure
for connector identification.

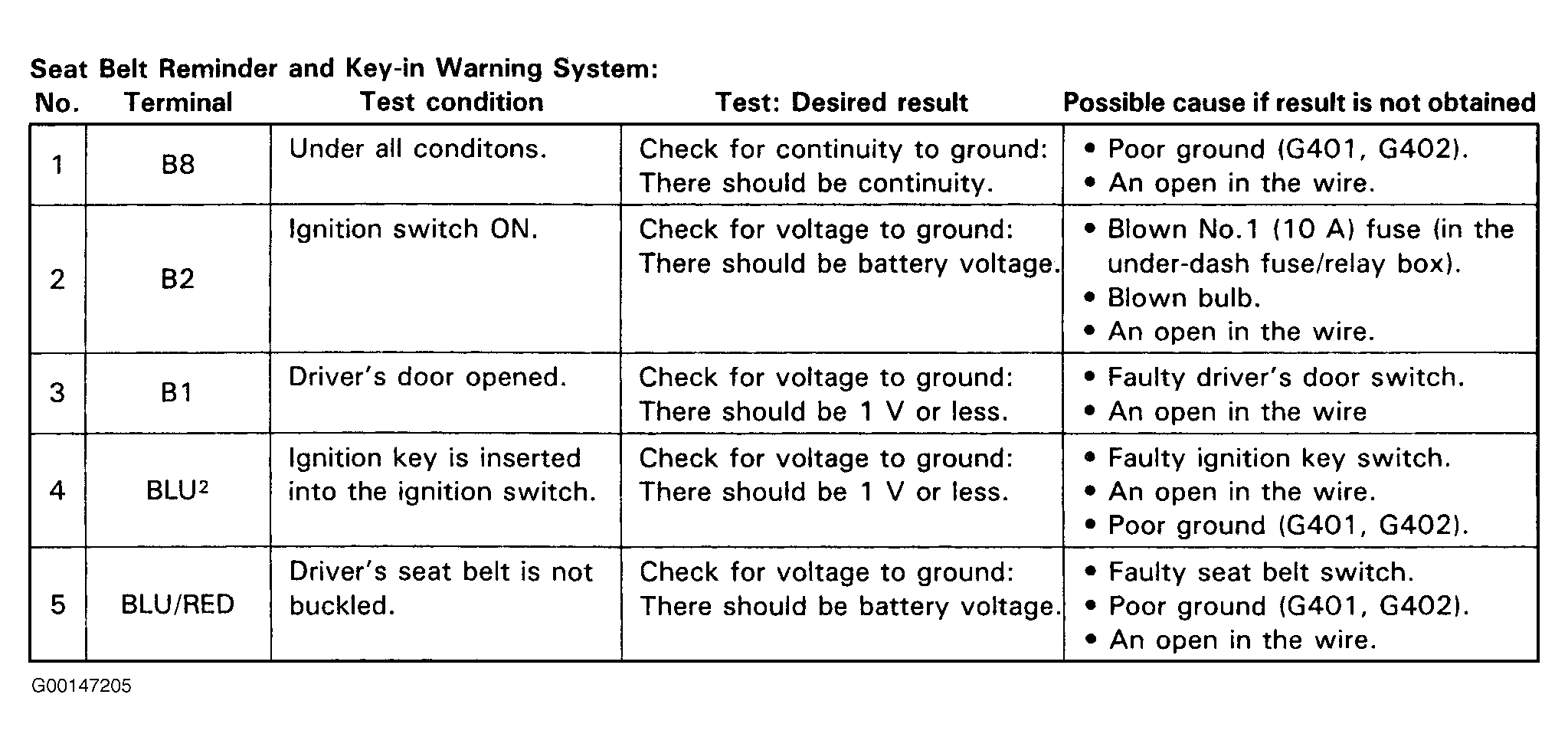

Fig 1: Seat Belt Reminder & Key-In System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
