Lights On Reminder System
Lights On Reminder System
See
Figure
for connector identification.

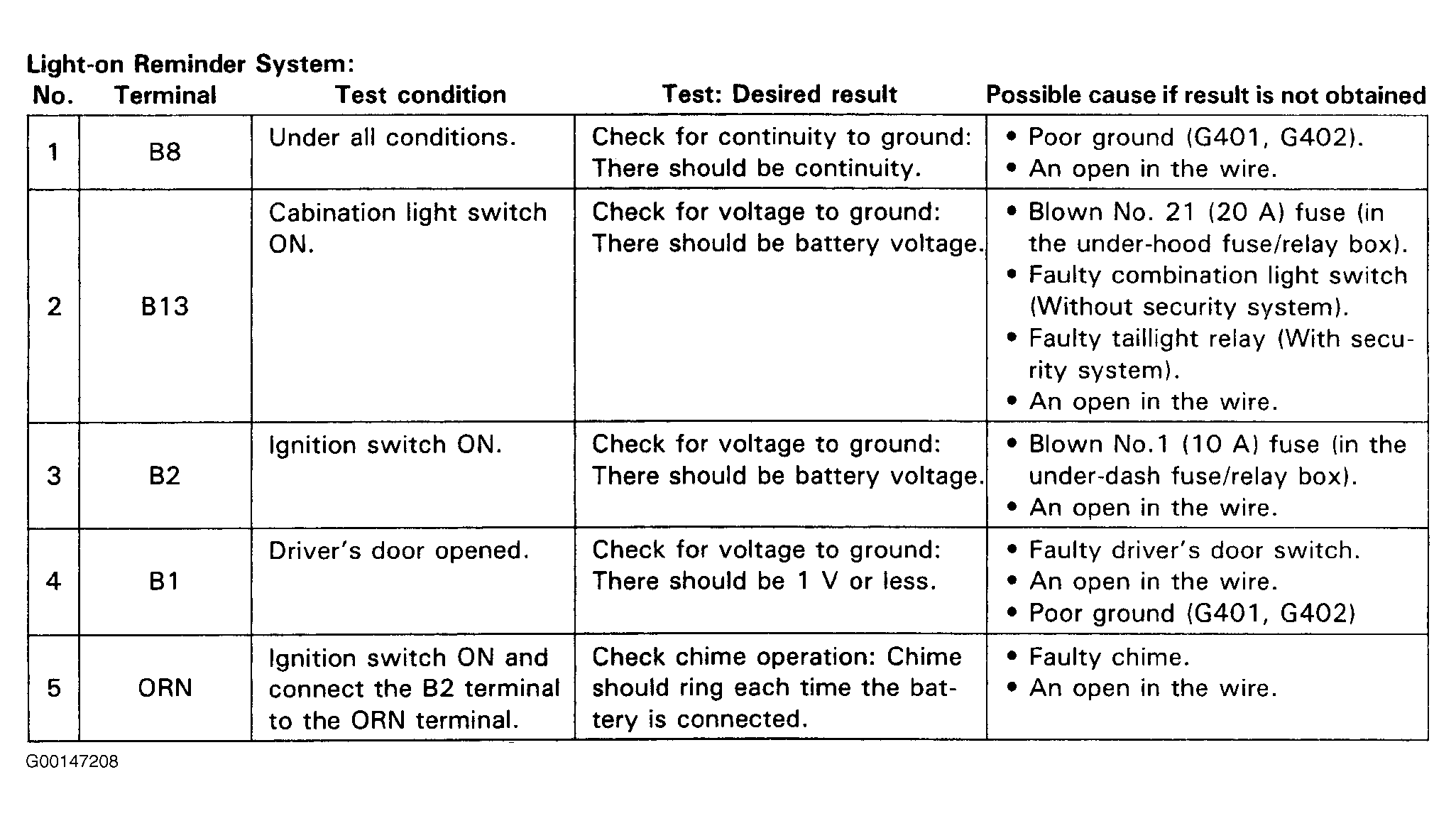

Fig 1: Lights On Reminder System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
