Repair and Diagnosis: Electrical: Starter: Overhaul

NOTE: See exploded views of starters. See Fig 1 and Fig 2 .

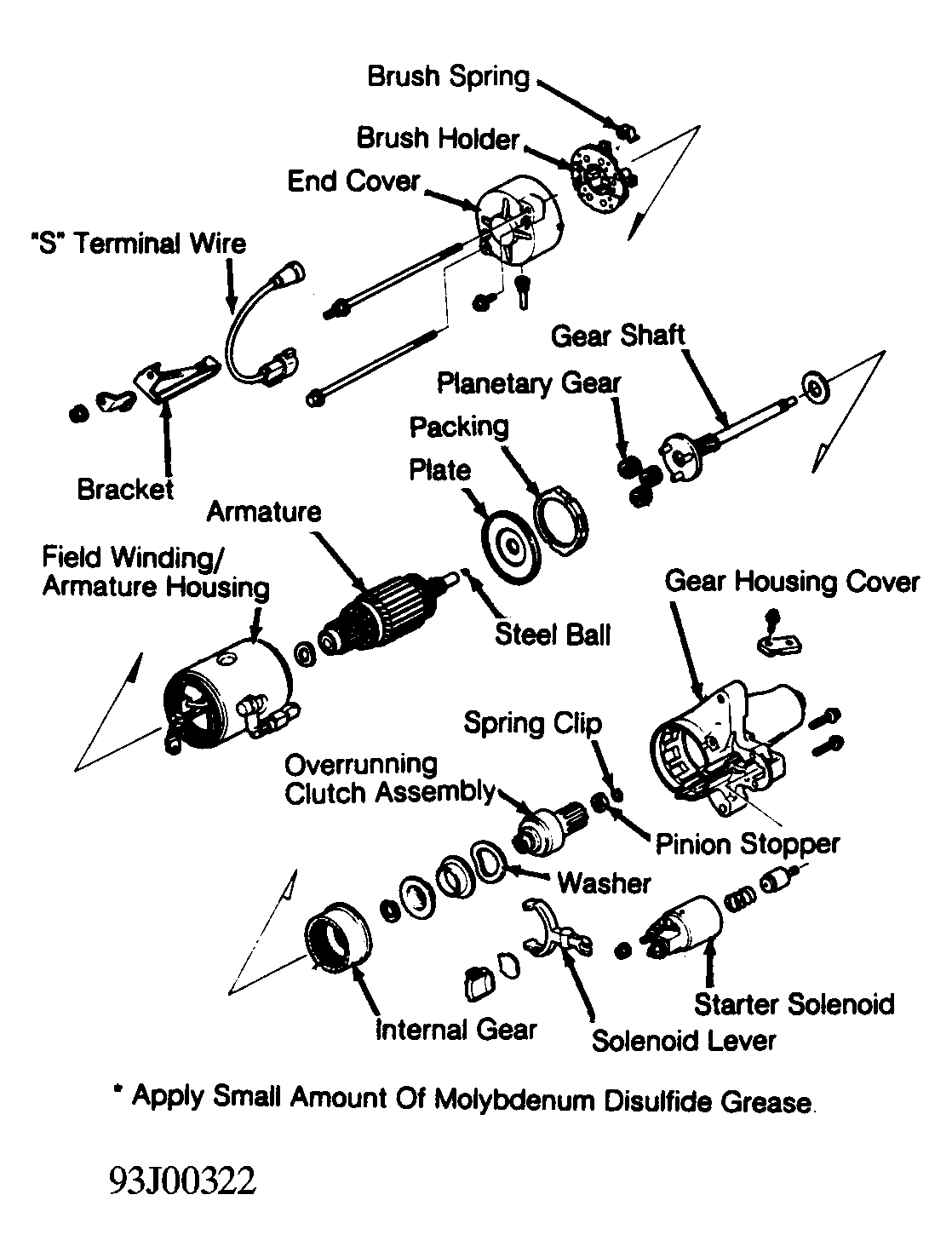

Fig 1: Exploded View Of Mitsuba 2.0 KW Starter

Courtesy of AMERICAN HONDA MOTOR CO., INC.

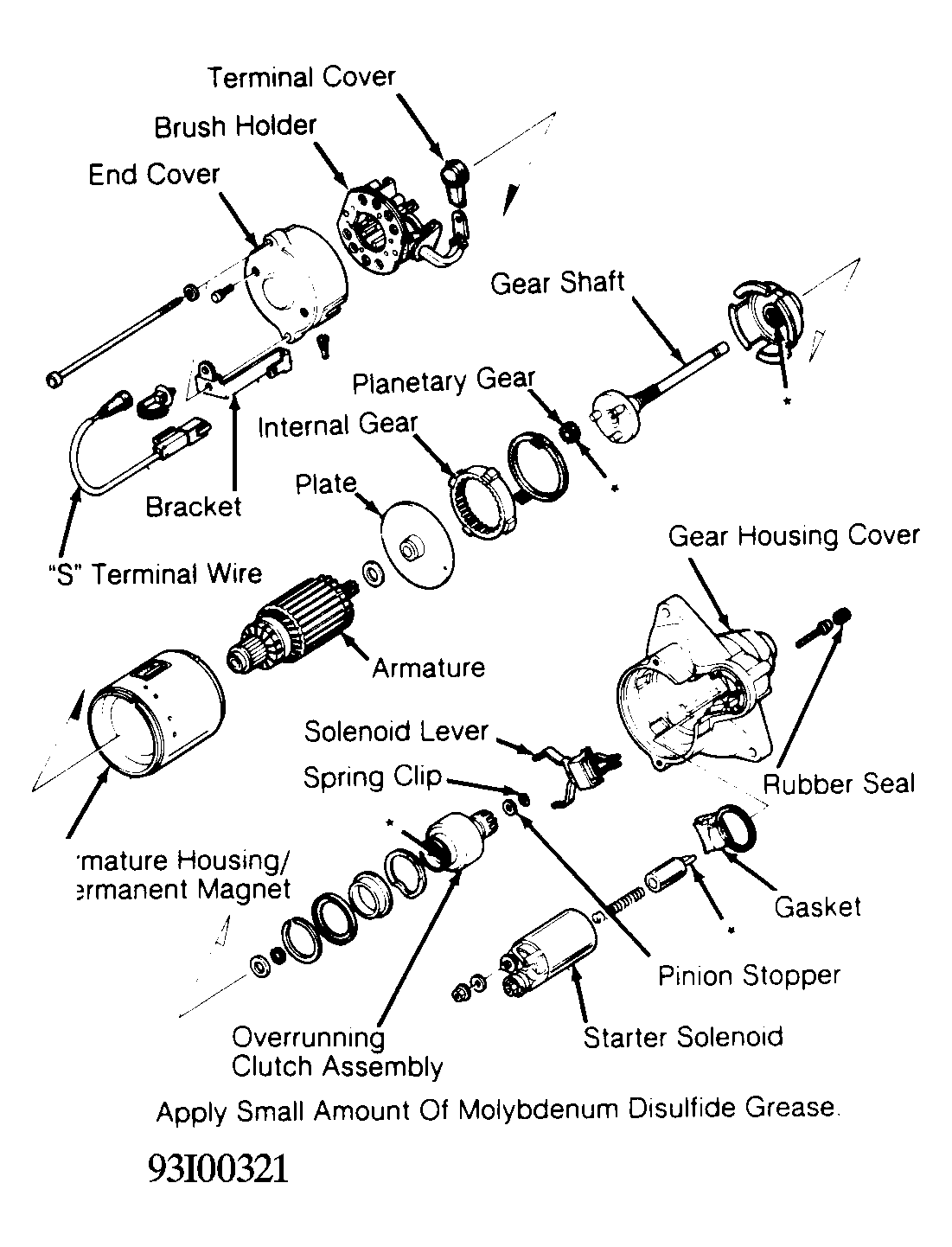

Fig 2: Exploded View Of Mitsubishi Starter

Courtesy of AMERICAN HONDA MOTOR CO., INC.
