Gear Position Switch
- Remove the console. Disconnect the 12-pin and 2-pin connectors from the A/T gear position switch.
- Remove the two position switch mounting bolts.

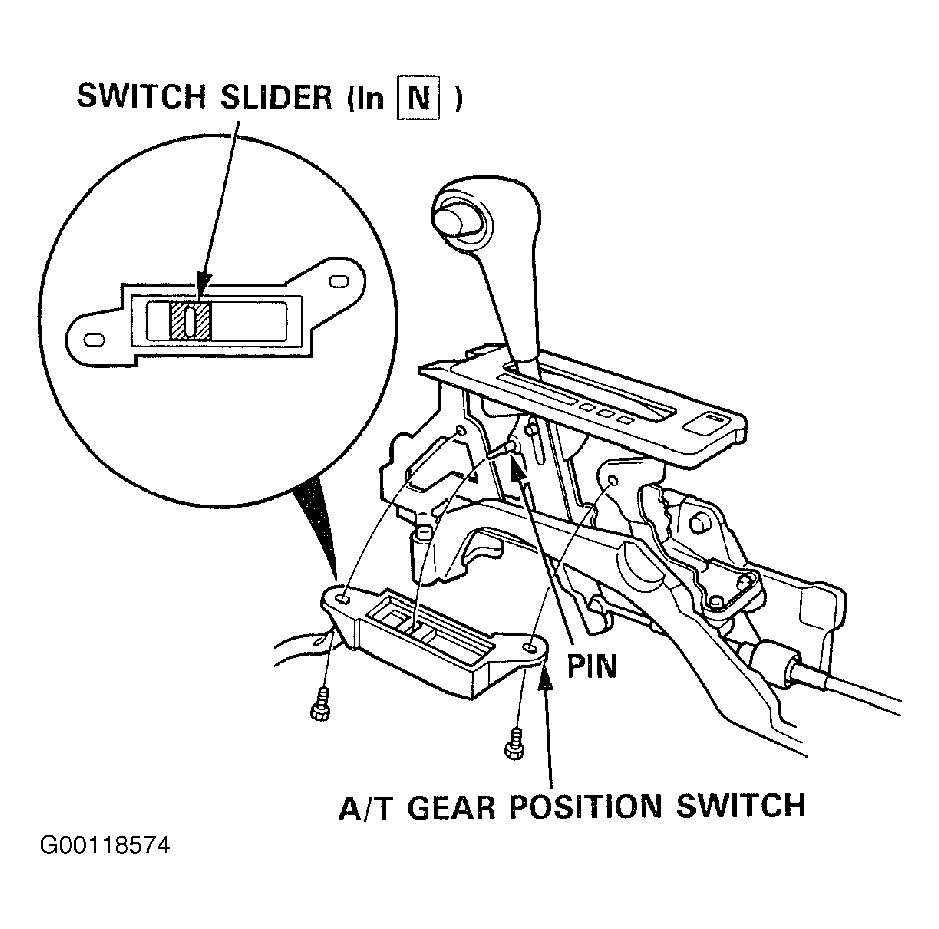

- Position the slider on the new switch to Neutral. See Fig 1
- Shift the shift lever to Neutral, then slip the switch into position.
- Attach the switch with the two bolts.
- Test the switch in the Park and Neutral positions. You should be able to start the engine with the shift lever in position Neutral anywhere in the range of free play. Adjust switch if necessary. See GEAR POSITION SWITCH
under ADJUSTMENTS.
- Connect the 12-pin and 2-pin connectors, clamp the harness, and install the console.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
