Home
>>
Acura
>>
1994
>>
NSX Standard
>>
Repair and Diagnosis
>>
Steering
>>
Electronic Steering
>>
Wiring Diagrams
>>
Control Unit
Control Unit

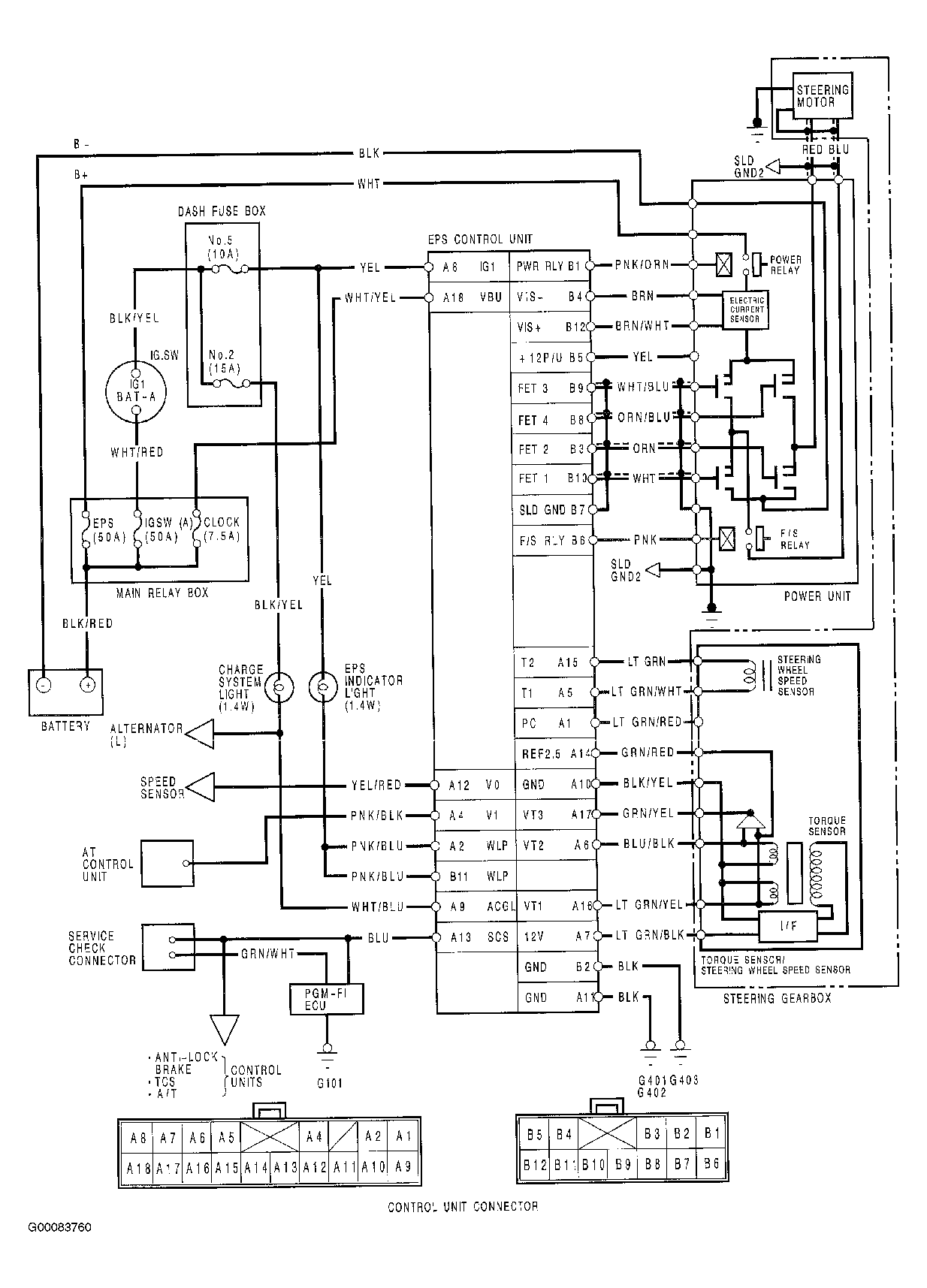

Fig 1: Control Unit Circuit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
