Shift Indicator Panel

  1. Check that the index mark of the indicator aligns with the "N" mark of the shift indicator panel with the transmission in Neutral.
  2. If not aligned, remove the center console panel. See Fig 1 .
  3. Remove the shift indicator panel mounting screws and adjust by moving the panel. Tighten screws and install center console.

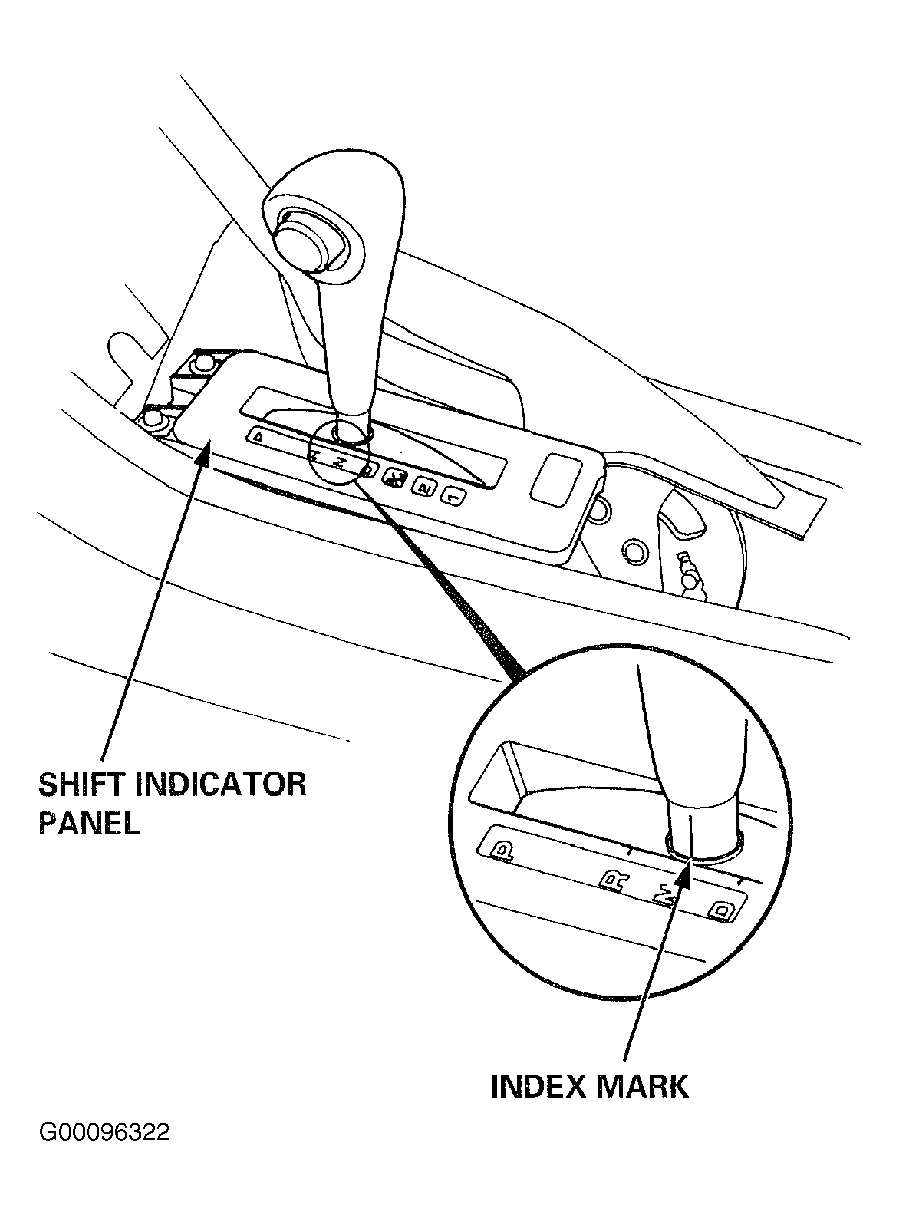

Fig 1: Adjusting Shift Indicator Panel
G00096322Courtesy of AMERICAN HONDA MOTOR CO., INC.
