Problem Code 33; Speed Sensor Related Problem

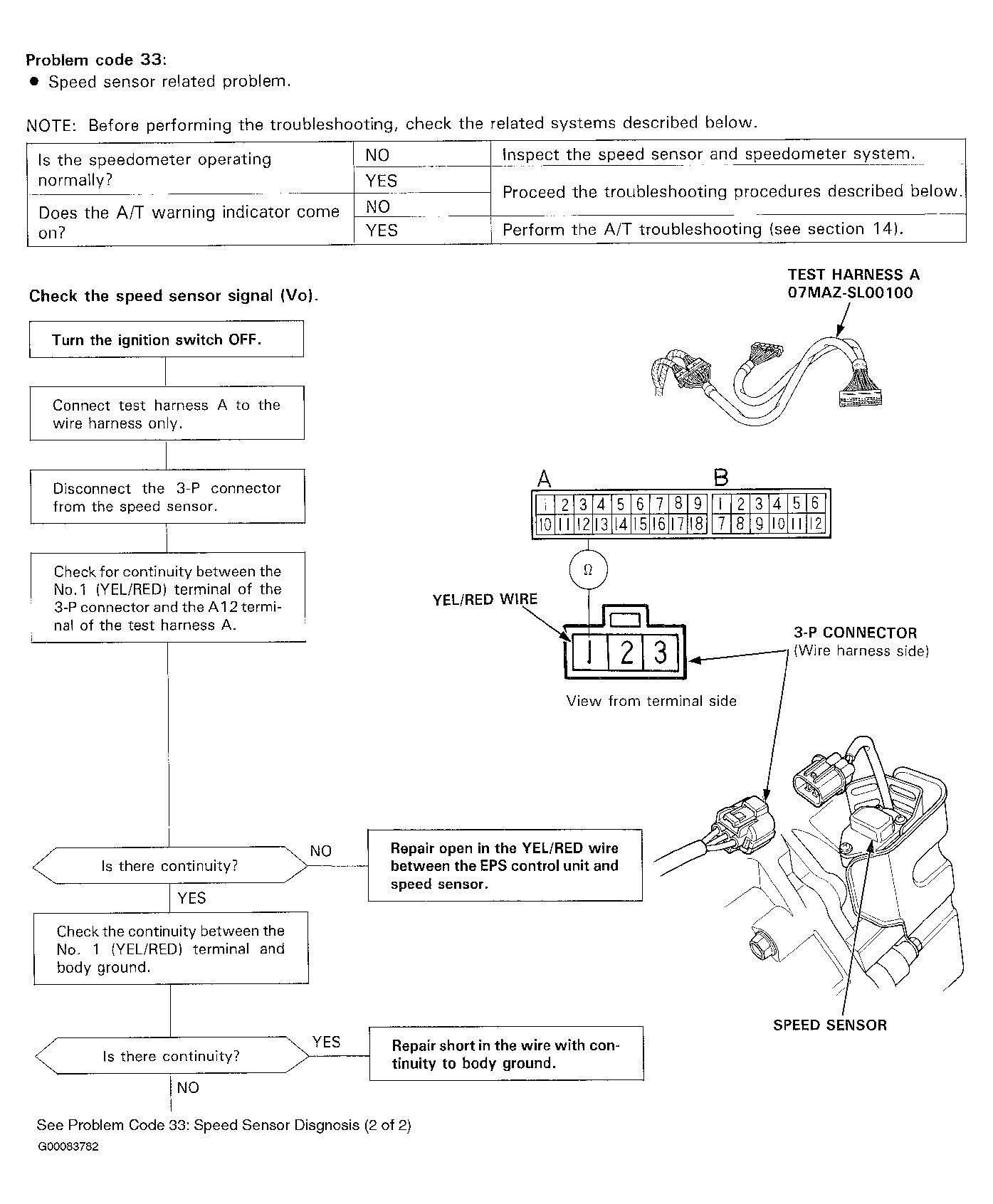

Fig 1: Problem Code 33 (1 Of 2)

G00083782

Courtesy of AMERICAN HONDA MOTOR CO., INC.

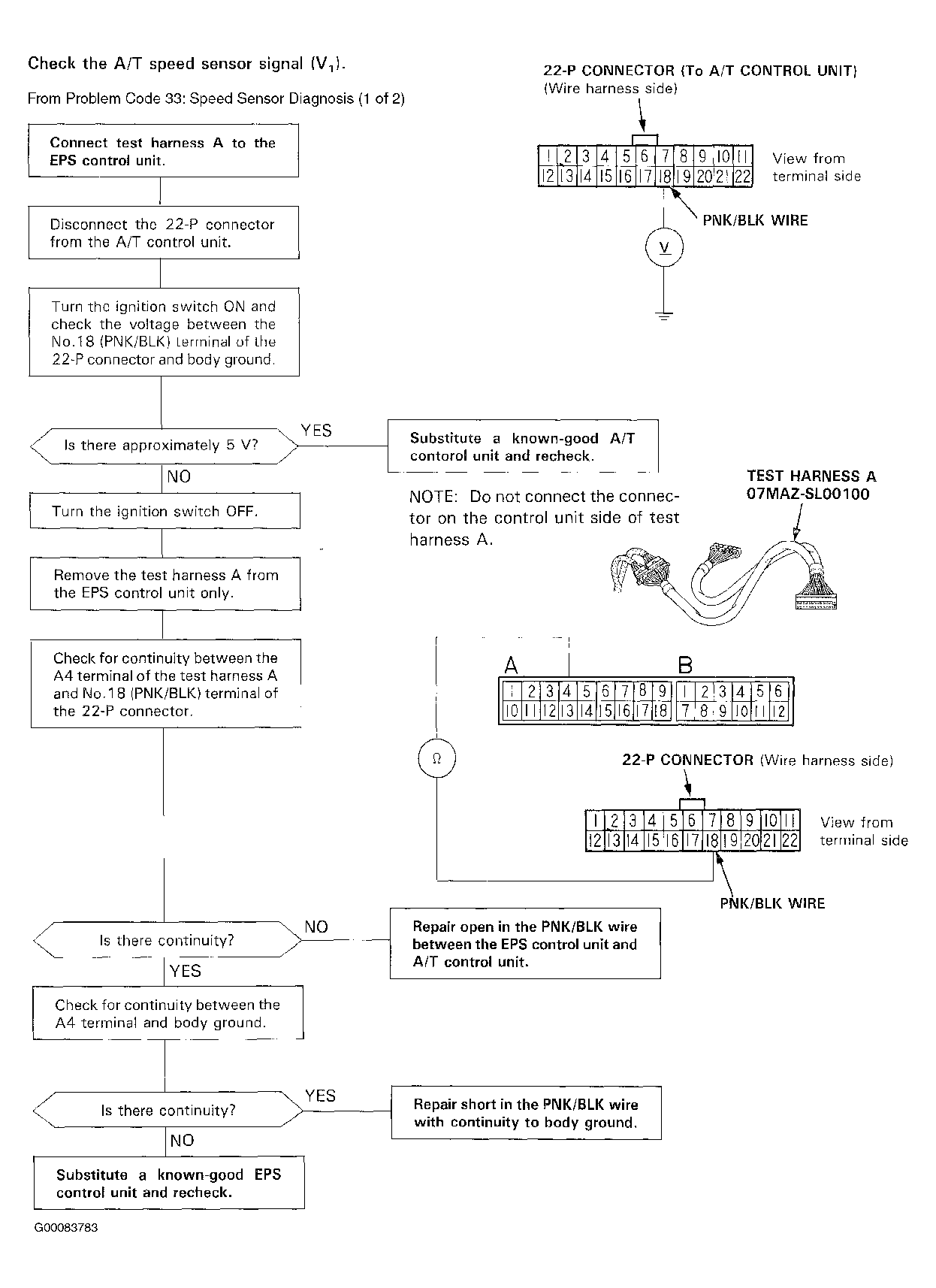

Fig 2: Problem Code 33 (2 Of 2)

G00083783

Courtesy of AMERICAN HONDA MOTOR CO., INC.
