Problem Code 22; EPS Power Unit Related Problem

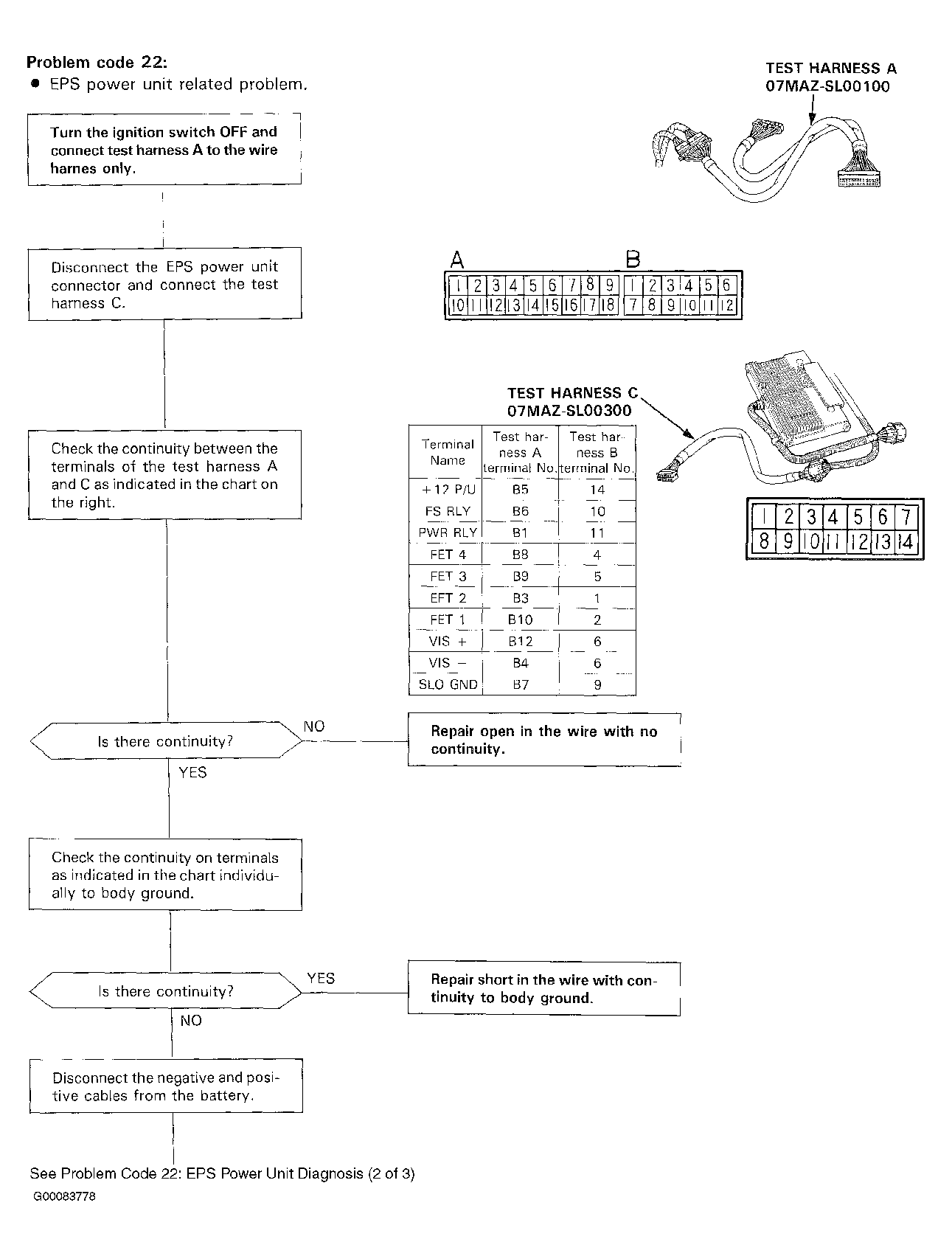

Fig 1: Problem Code 22 (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

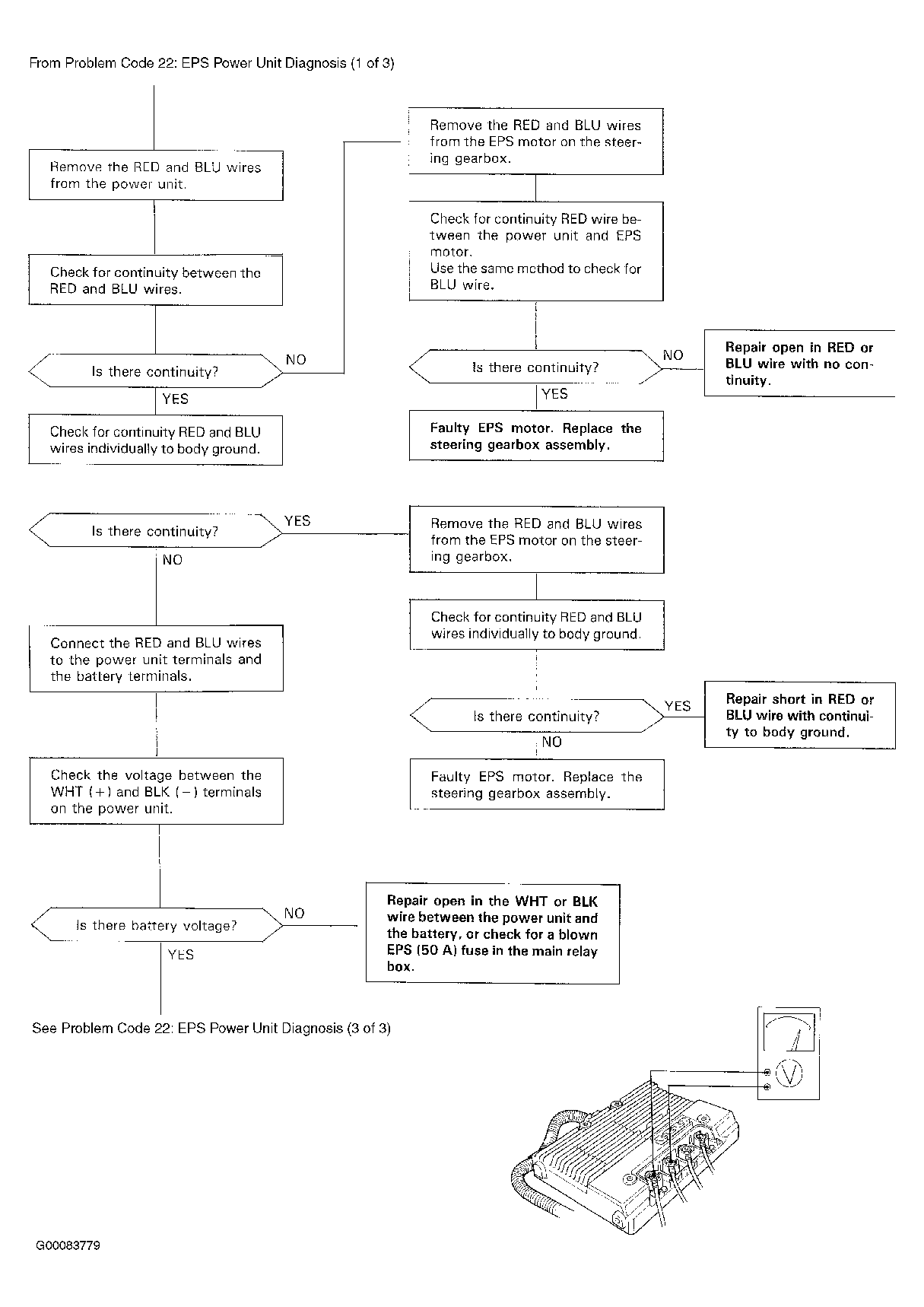

Fig 2: Problem Code 22 (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

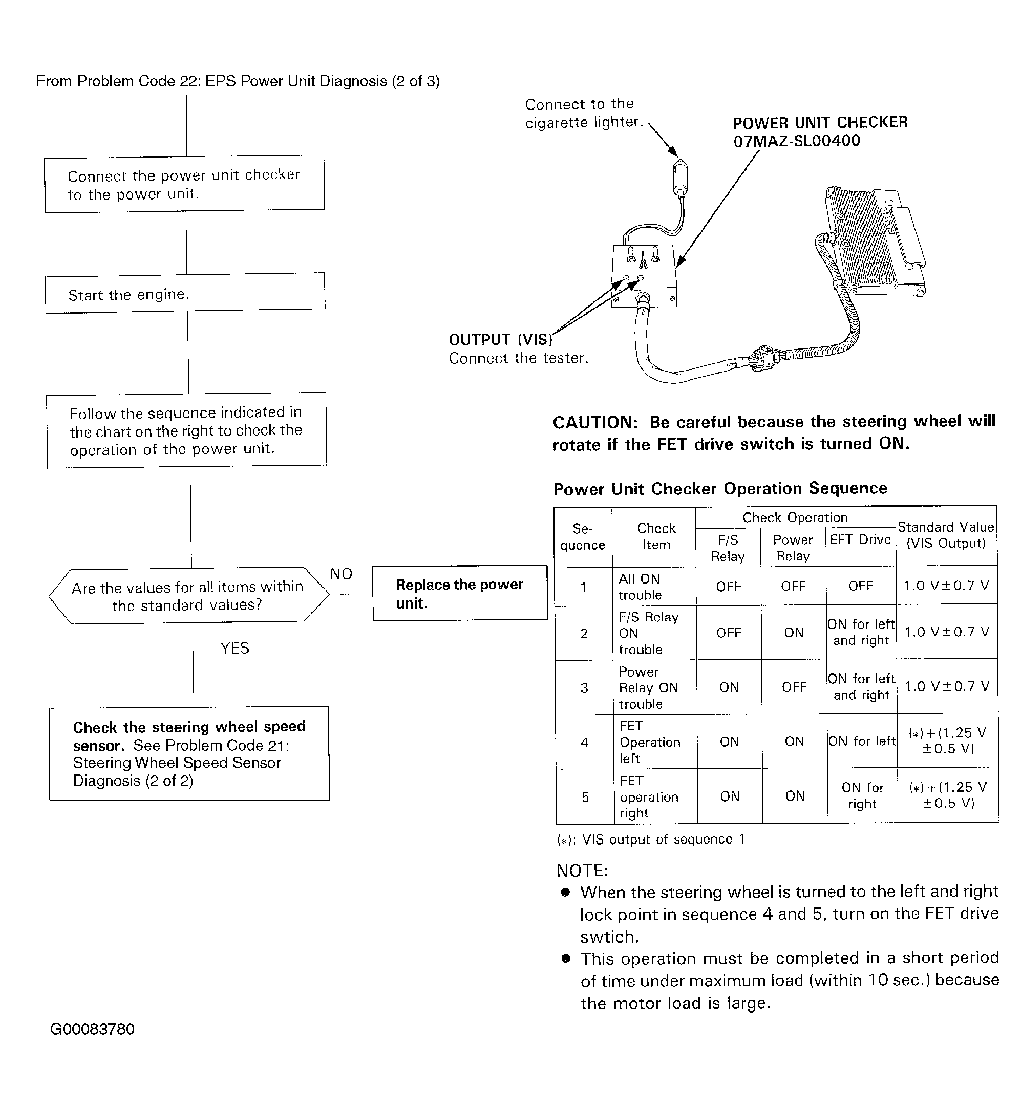

Fig 3: Problem Code 22 (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
