Ignition Timing Adjuster

The Ignition Timing Adjuster has an adjusting screw and allows the electronic ignition advance to be adjusted so it is exactly 15° BTDC at idle. See Fig 1 .

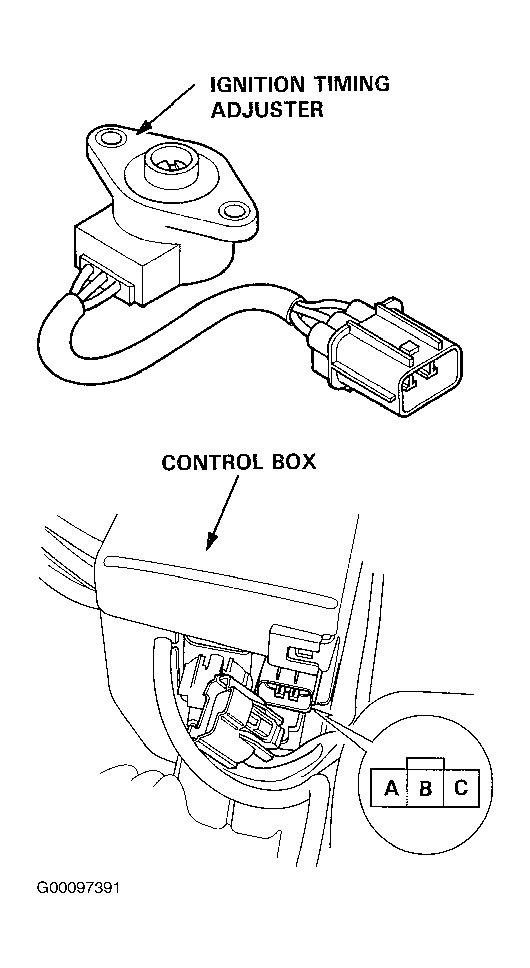

Fig 1: Identifying Ignition Timing Adjuster

Courtesy of AMERICAN HONDA MOTOR CO., INC.
