Air Induction Systems: Notes

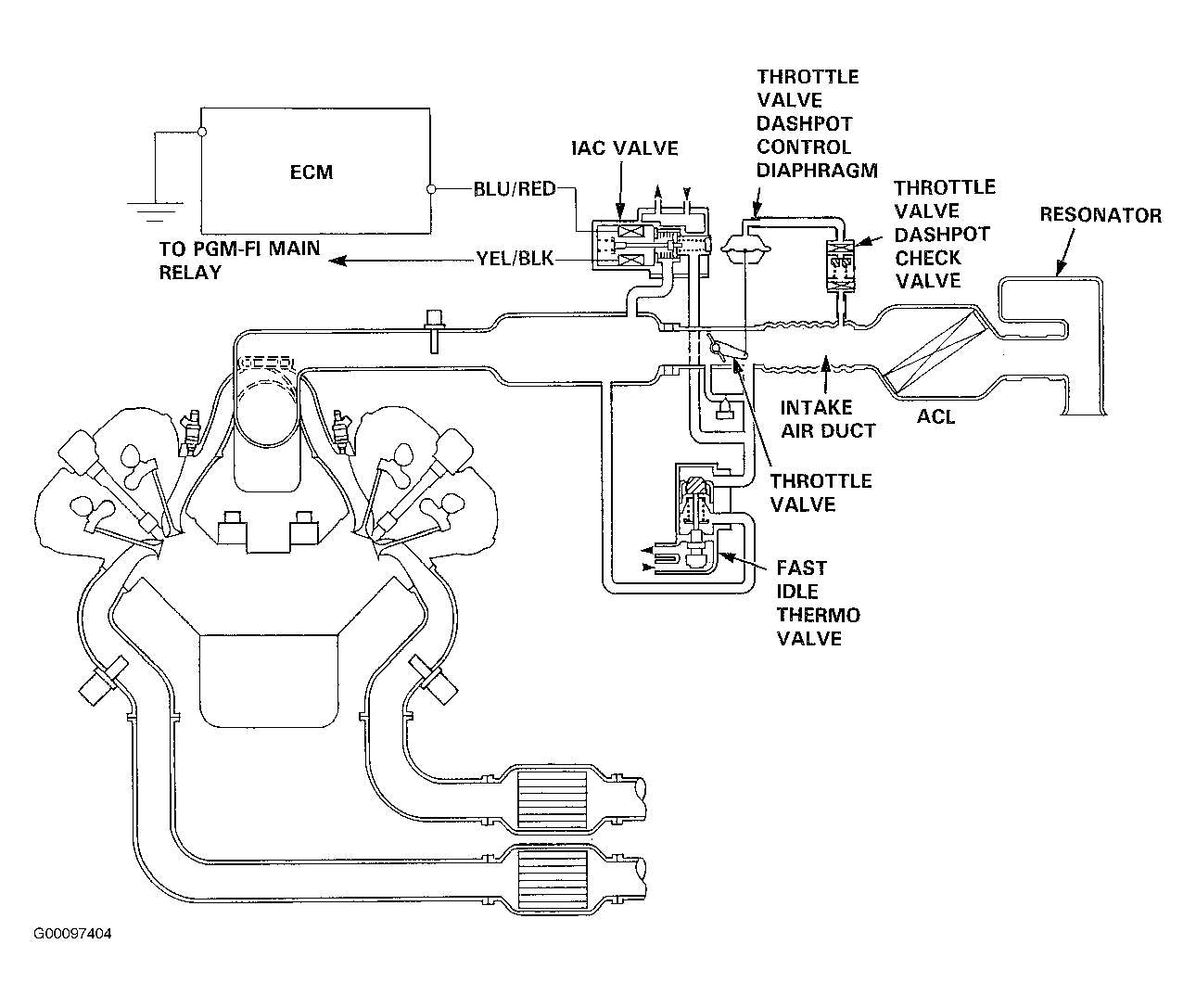

The system supplies air for all engine needs. It consists of the intake air pipe, Air Cleaner (ACL), intake air duct, throttle body, Idle Air Control (IAC) Valve, fast idle thermo valve, dashpot check valve and intake manifold. A resonator in the intake air duct provides additional silencing as air is drawn into the system. See Fig 1 .
