DTC 15: Ignition Output Signal

If the Malfunction Indicator Lamp (MIL) indicates Diagnostic Trouble Code (DTC) 15, a problem may exist in the Ignition Output Signal circuit. See Fig 1 and Fig 2 .

Fig 1: Ignition Output Signal Diagnostic Flowchart (1 Of 2)

Courtesy of AMERICAN MOTORS/RENAULT CORP.

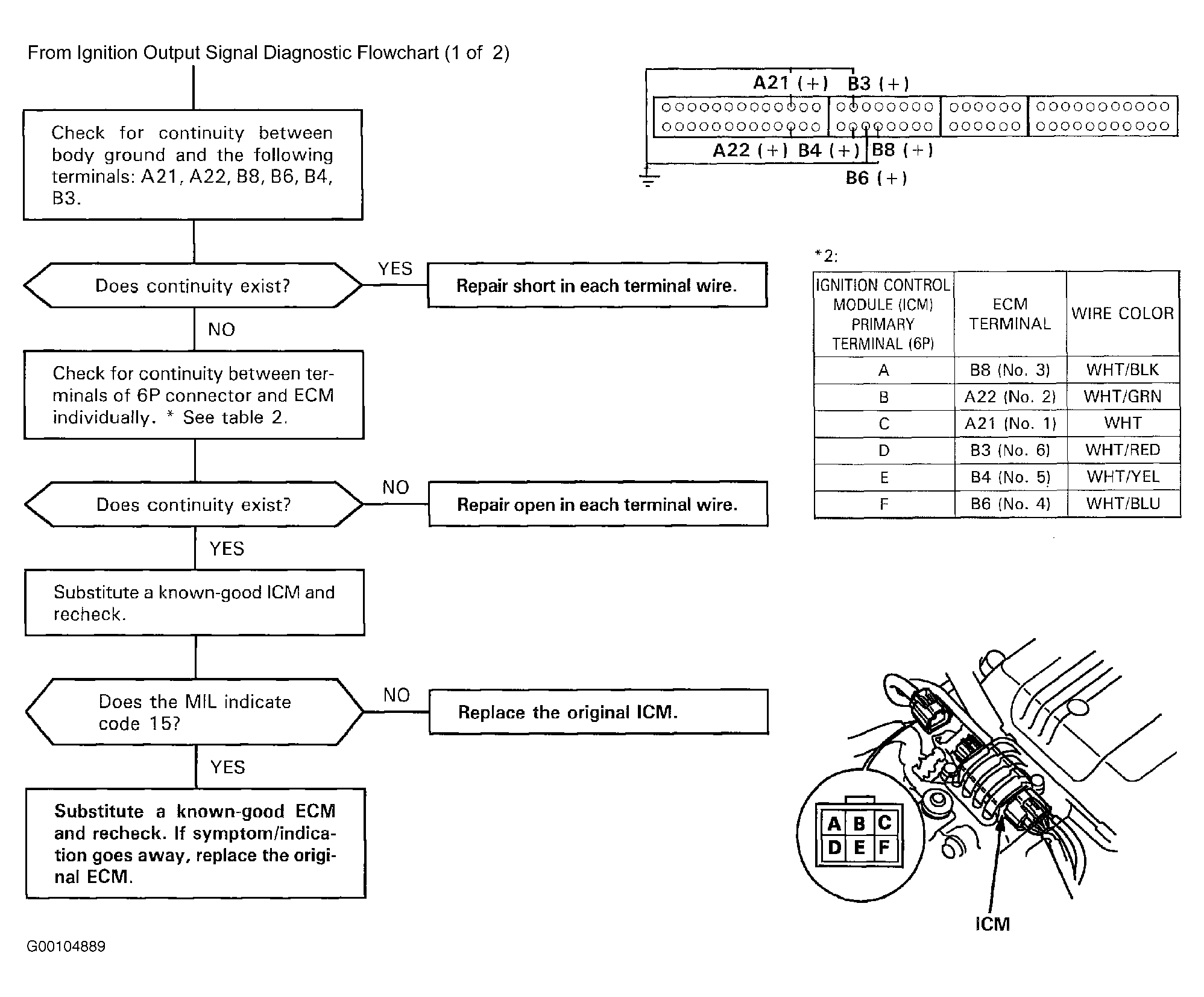

Fig 2: Ignition Output Signal Diagnostic Flowchart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
