Fuel Pressure Regulator: Installation

To install, reverse removal procedure. ALWAYS replace "O" ring. During assembly of fuel pressure regulator, apply clean engine oil to "O" ring.

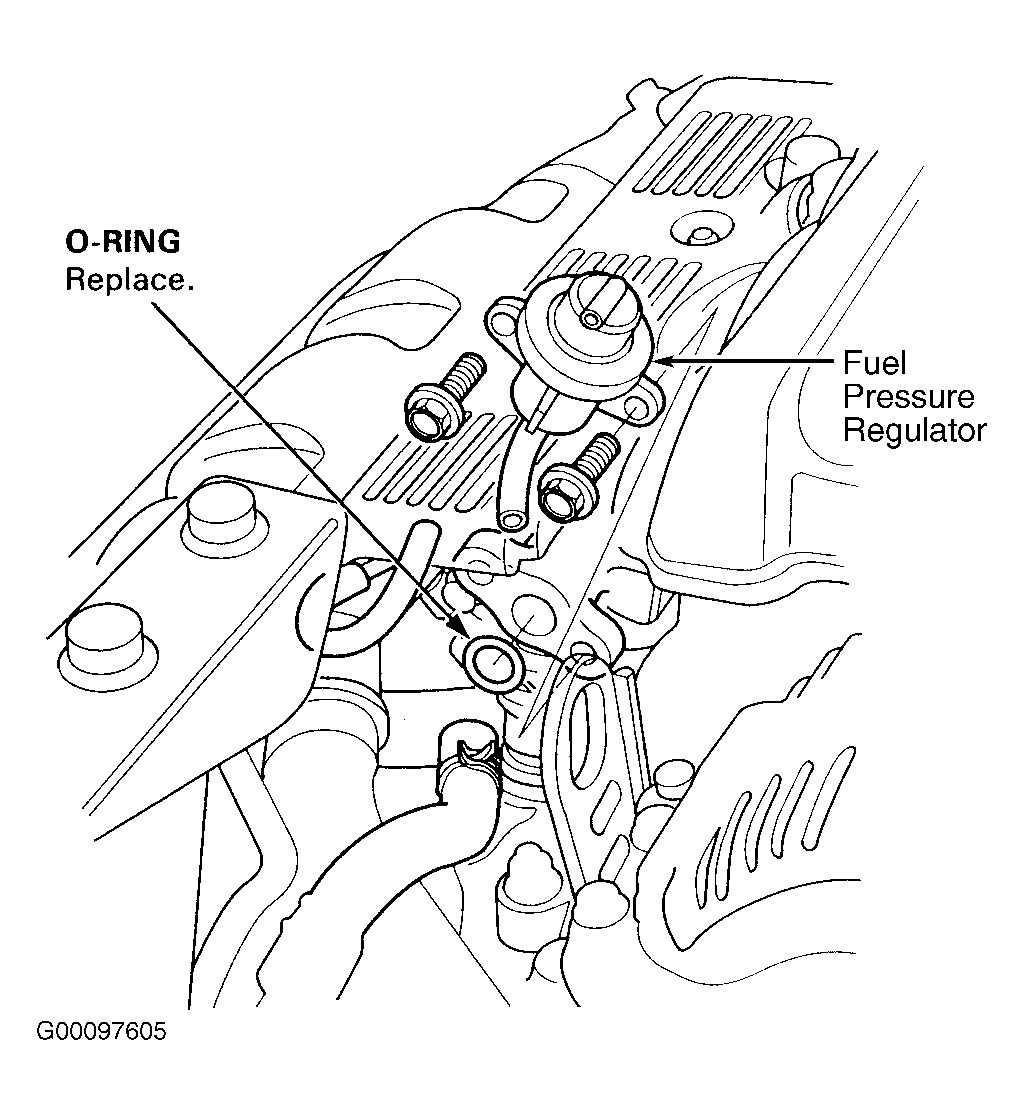

Fig 1: Removing Fuel Pressure Regulator
G00097605Courtesy of AMERICAN HONDA MOTOR CO., INC.
