1994
>>
NSX Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Generators & Regulators
>>
Wiring Diagrams
>>
Charging System
Charging System

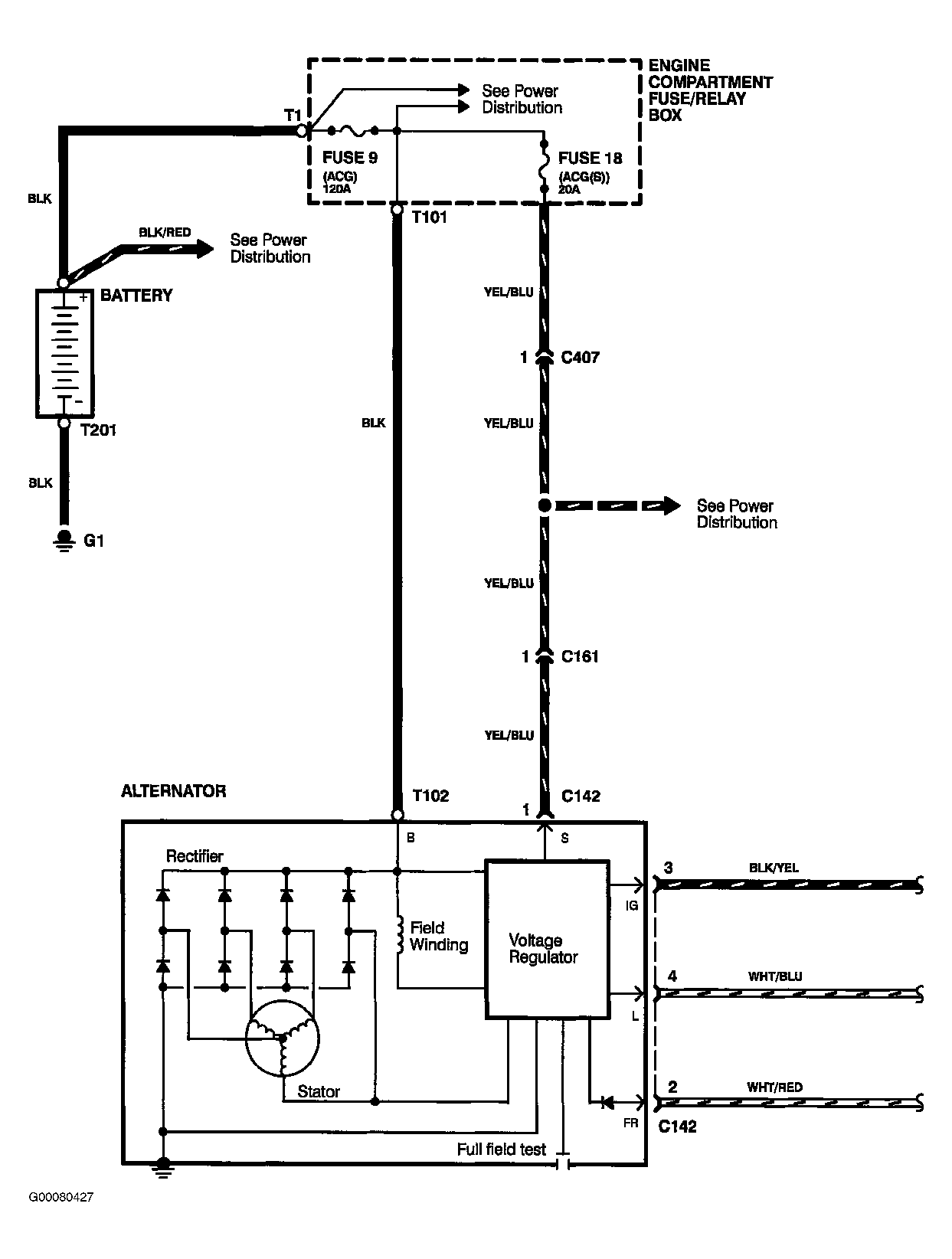

Fig 1: Charging System Wiring Diagram - 1993 (1 Of 2)
Courtesy of AMERICA HONDA MOTOR CO., INC.

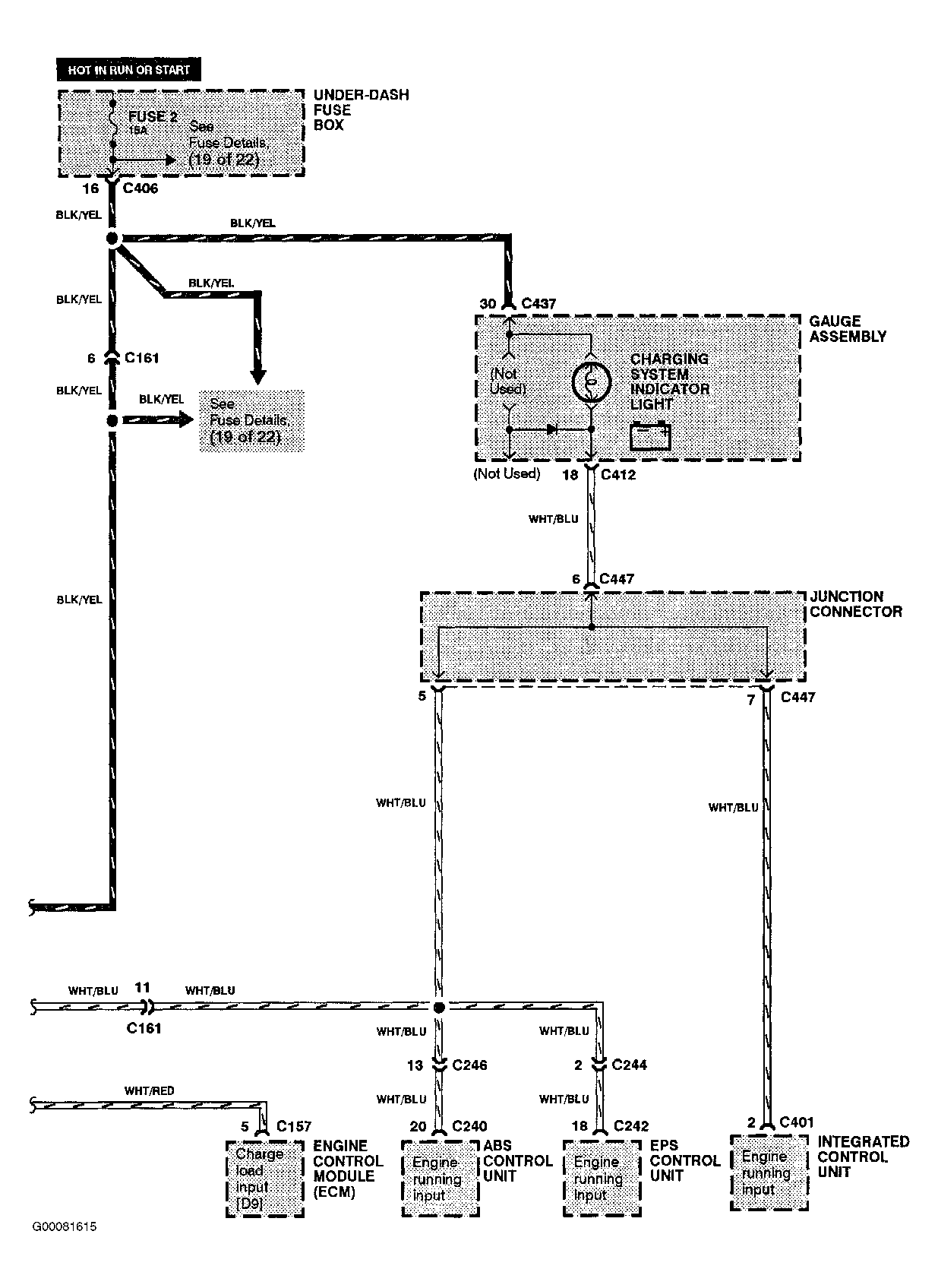

Fig 2: Charging System Wiring Diagram - 1993 (2 Of 2)
Courtesy of AMERICA HONDA MOTOR CO., INC.

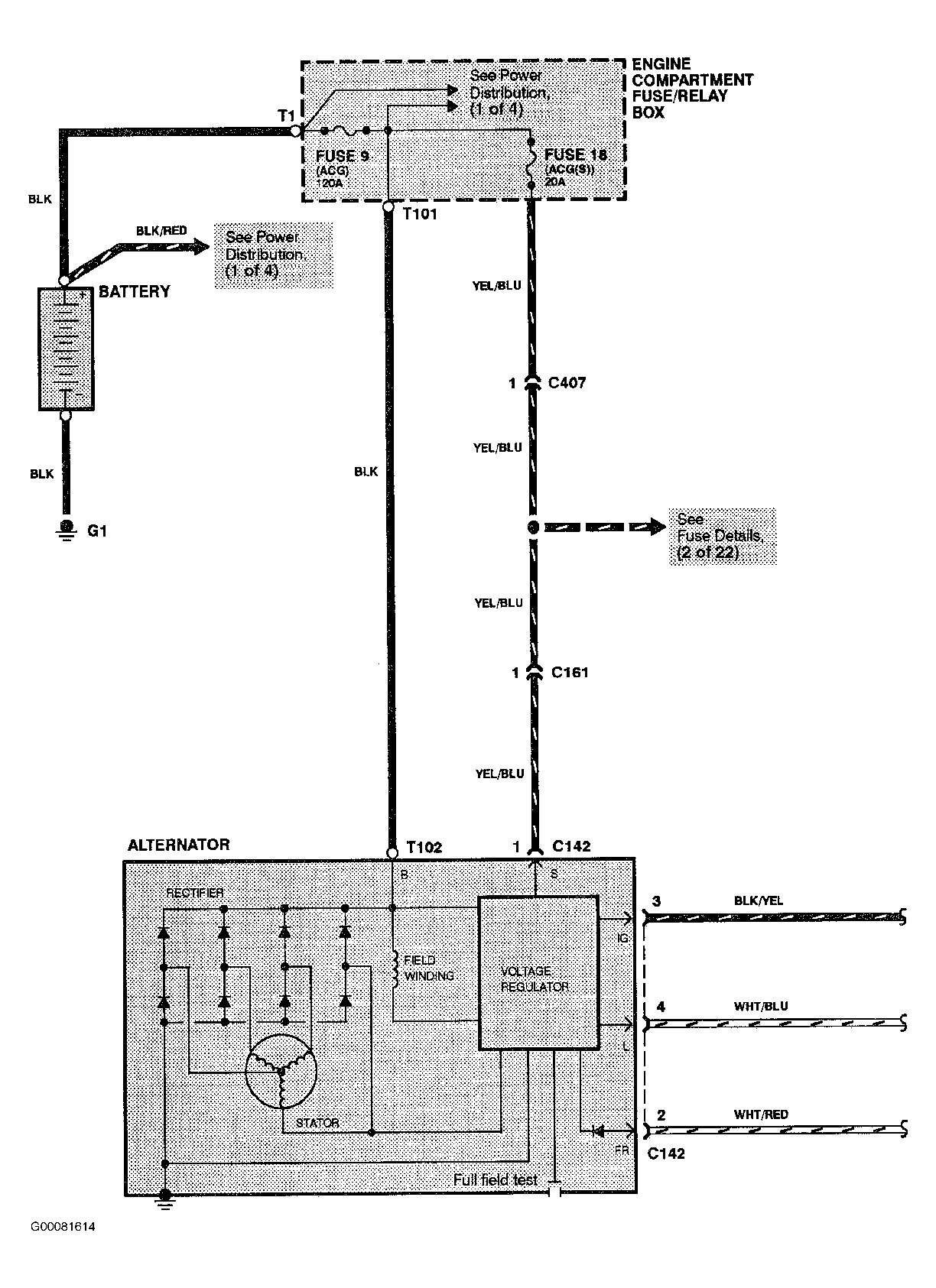

Fig 3: Charging System Wiring Diagram - 1994 (1 Of 2)
Courtesy of AMERICA HONDA MOTOR CO., INC.

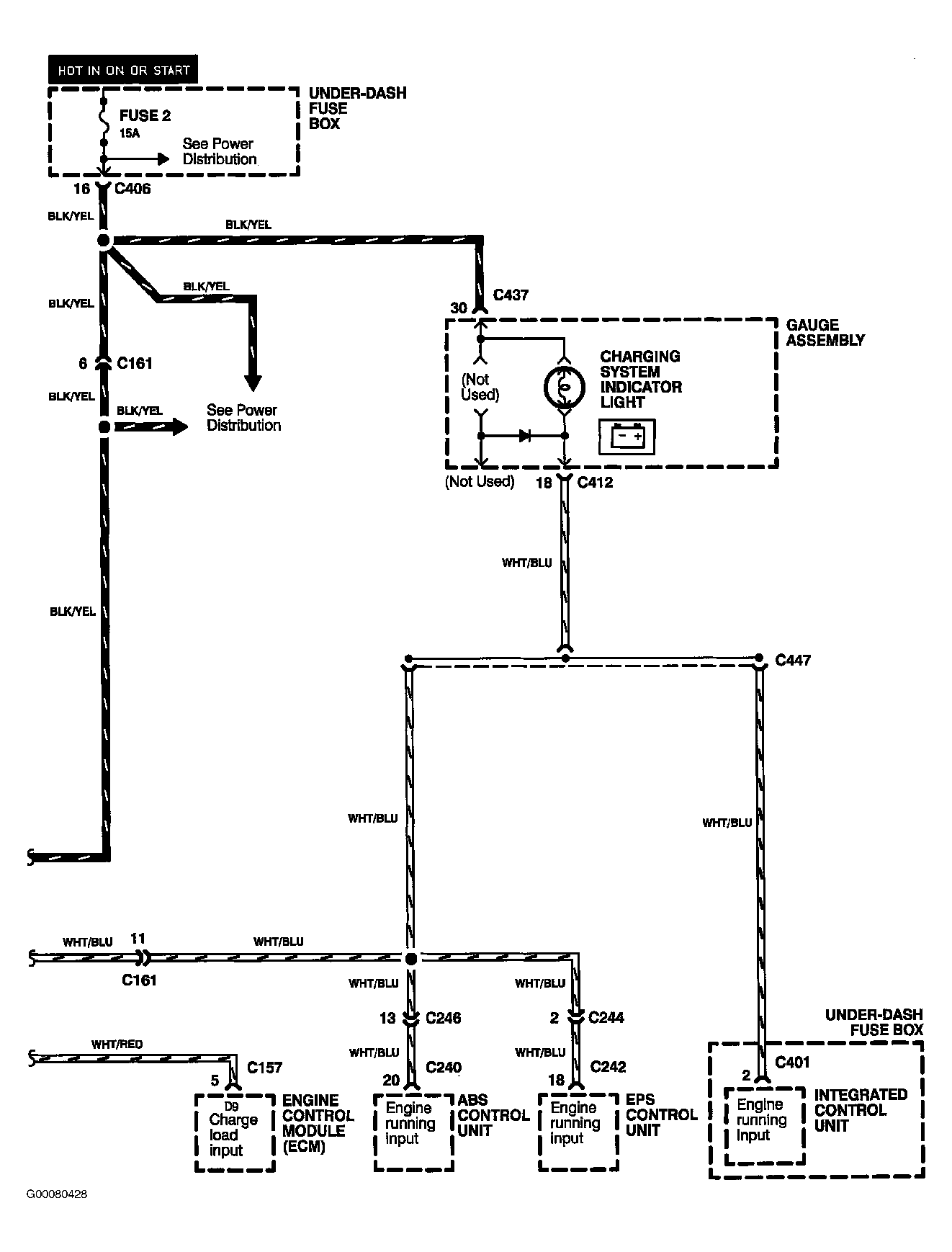

Fig 4: Charging System Wiring Diagram - 1994 (2 Of 2)
Courtesy of AMERICA HONDA MOTOR CO., INC.
