Rotor Slip Ring Test

  1. Check that there is continuity between slip rings.
  2. Check that there is no continuity between rings and rotor or rotor shaft. See Fig 1 .
  3. If rotor fails either continuity check, replace it.

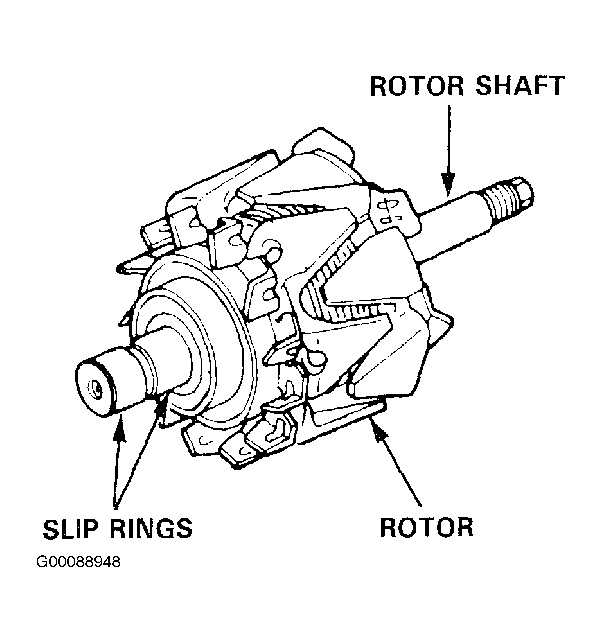

Fig 1: Testing Rotor Slip Ring
G00088948Courtesy of AMERICAN HONDA MOTOR CO., INC.
