DTC 4-9: All Wheel Sensors

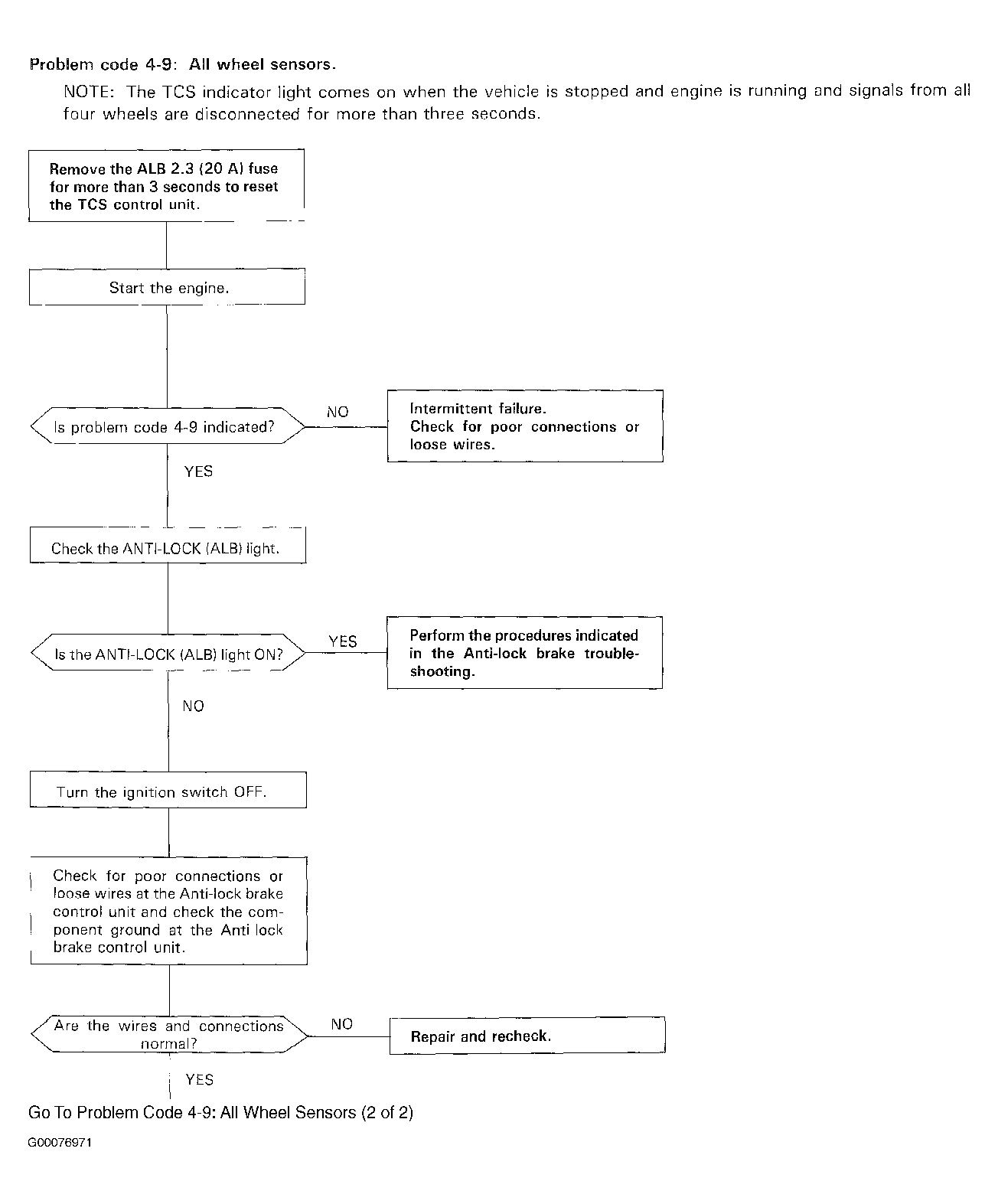

Fig 1: Problem Code 4-9: All Wheel Sensors (1 Of 2)
G00076971Courtesy of AMERICAN HONDA MOTOR CO., INC.

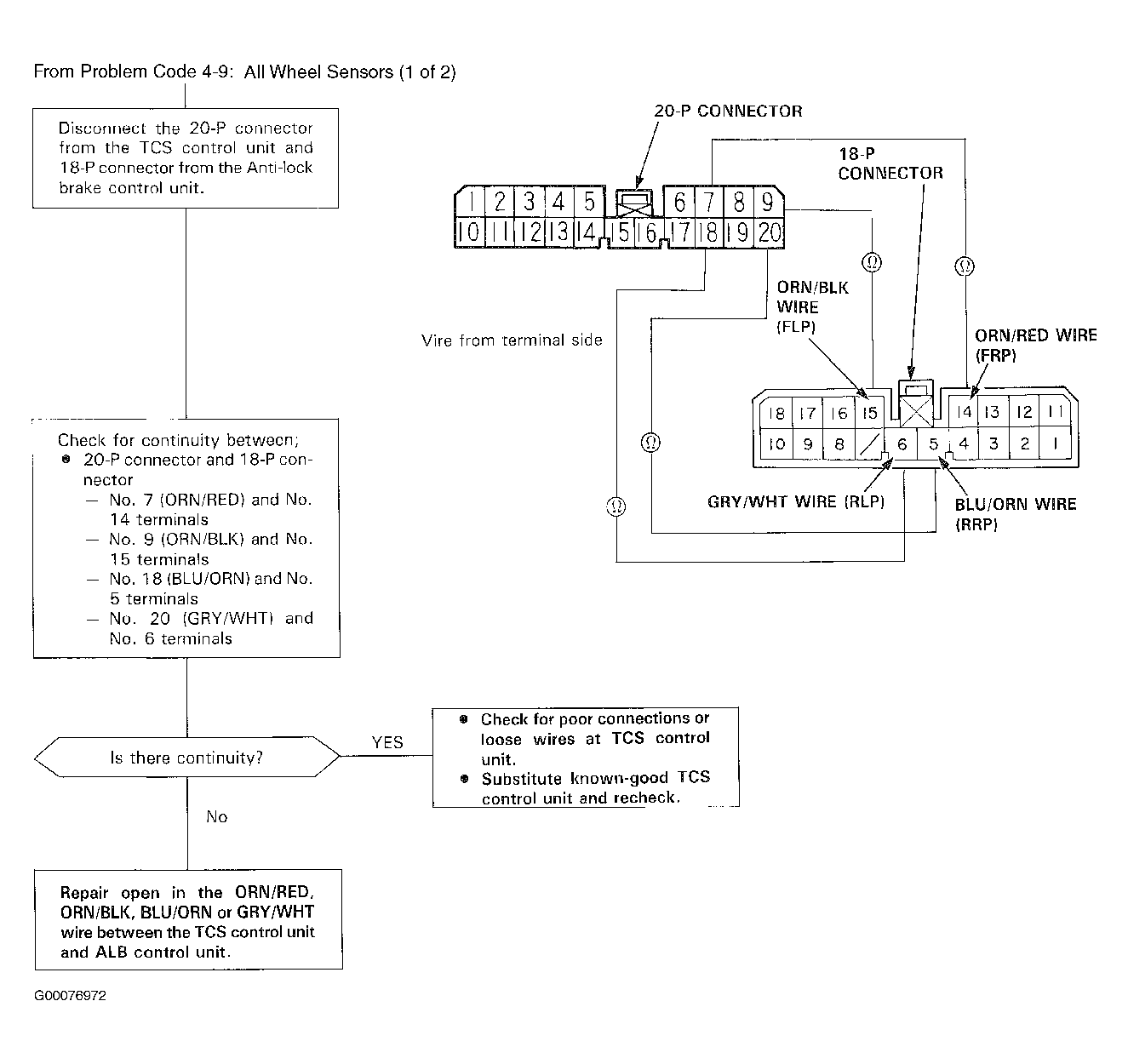

Fig 2: Problem Code 4-9: Al Wheel Sensors (2 Of 2)
G00076972Courtesy of AMERICAN HONDA MOTOR CO., INC.
