NOTE:
Fuses and components may be referred to differently between 1991-96 models. See appropriate SYSTEM WIRING DIAGRAMS article for specific components and related systems.

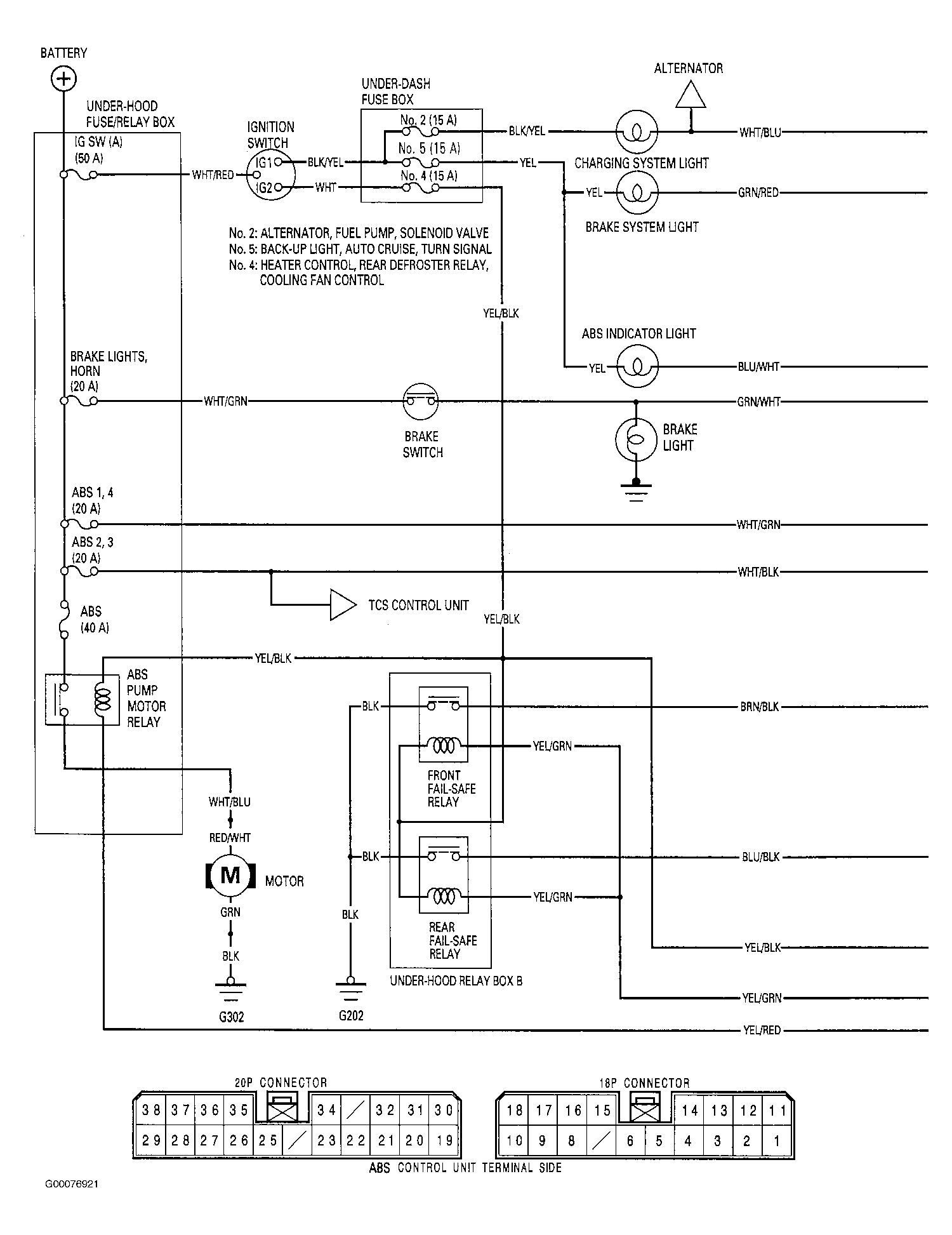

Fig 1: Anti-Lock Brake System Wiring Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

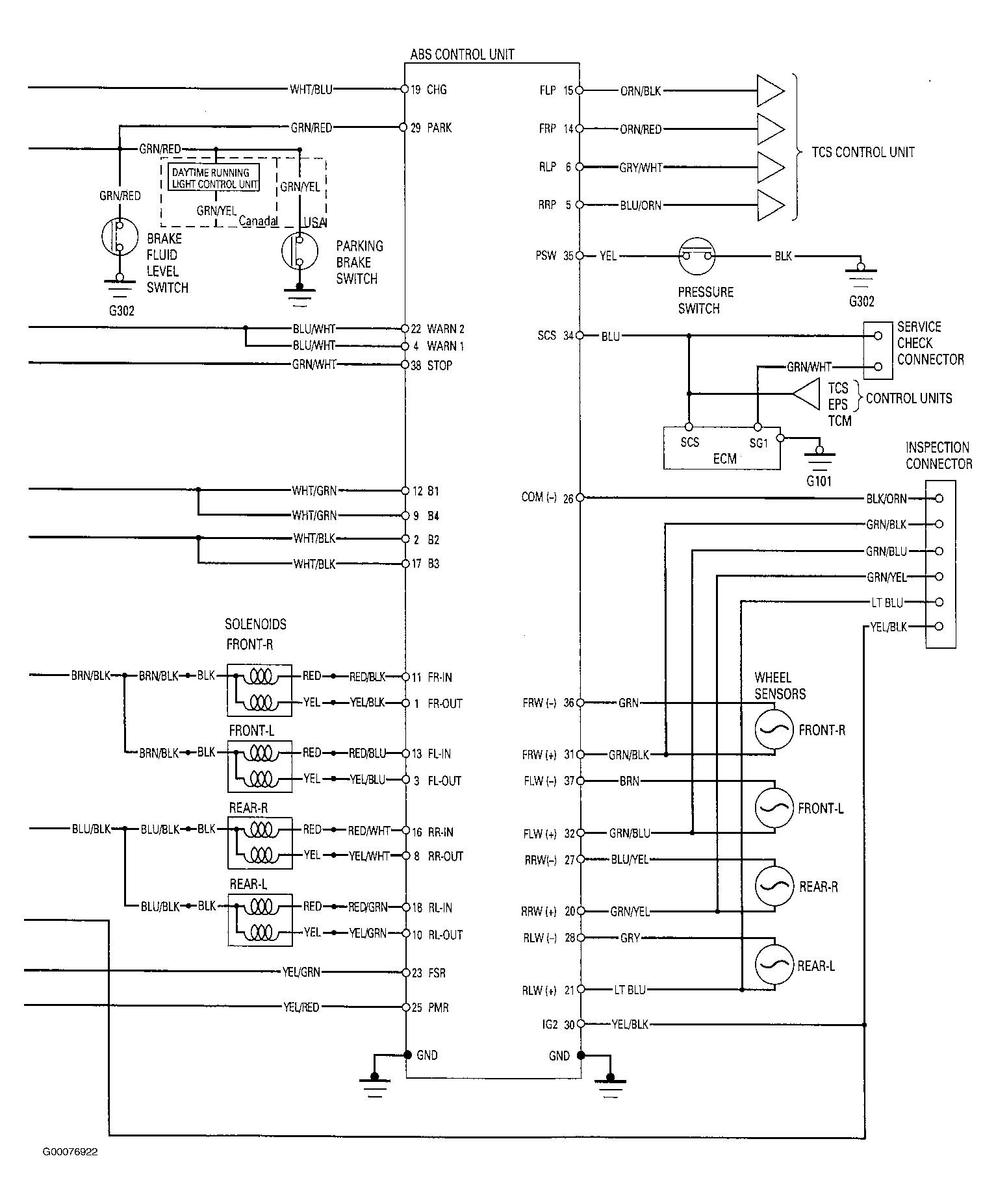

Fig 2: Anti-Lock Brake System Wiring Diagram (2 Of 2)
