Power Windows: Wiring Diagram

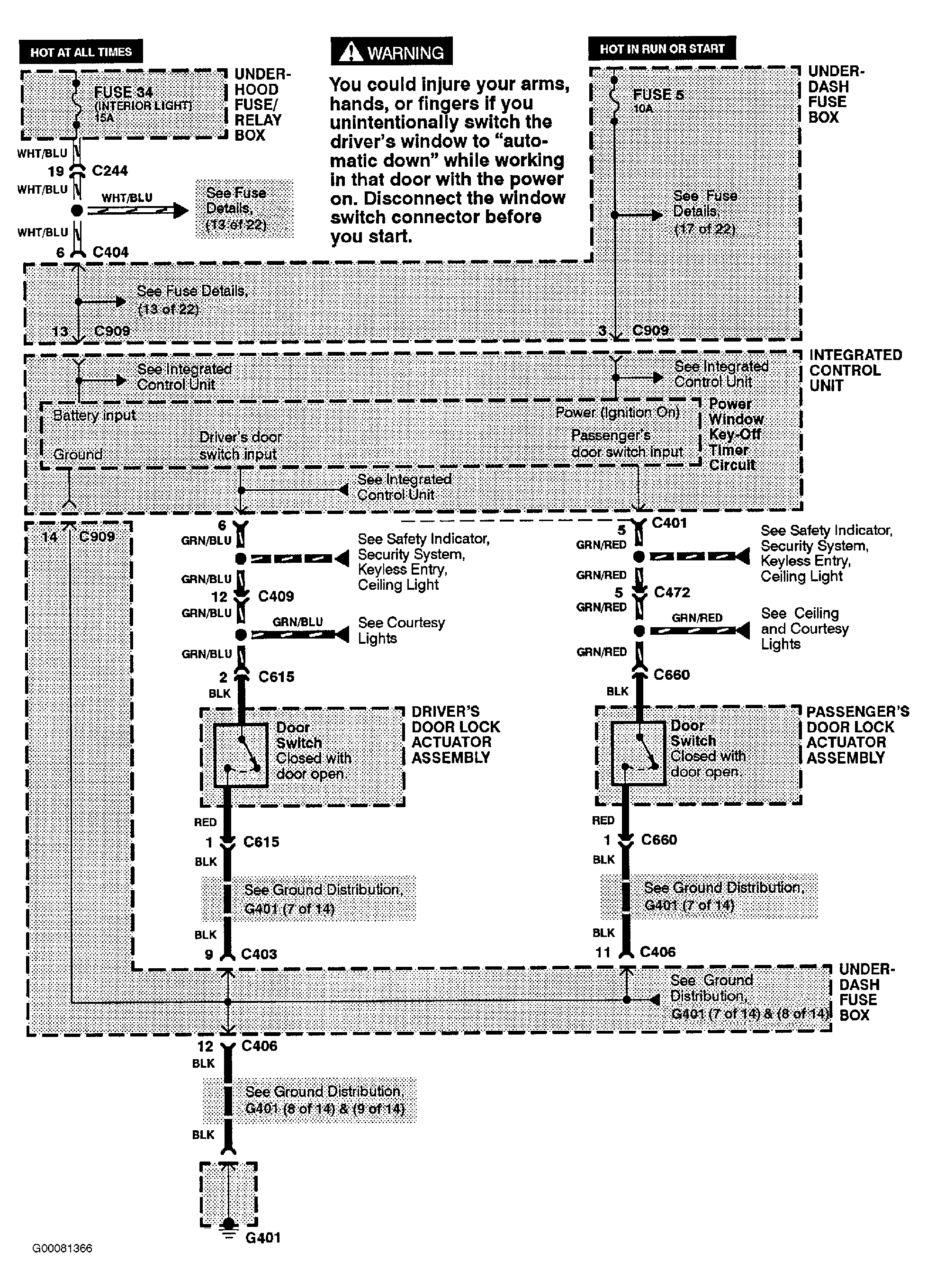

Fig 1: Power Windows Wiring Diagram (1993 - 1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

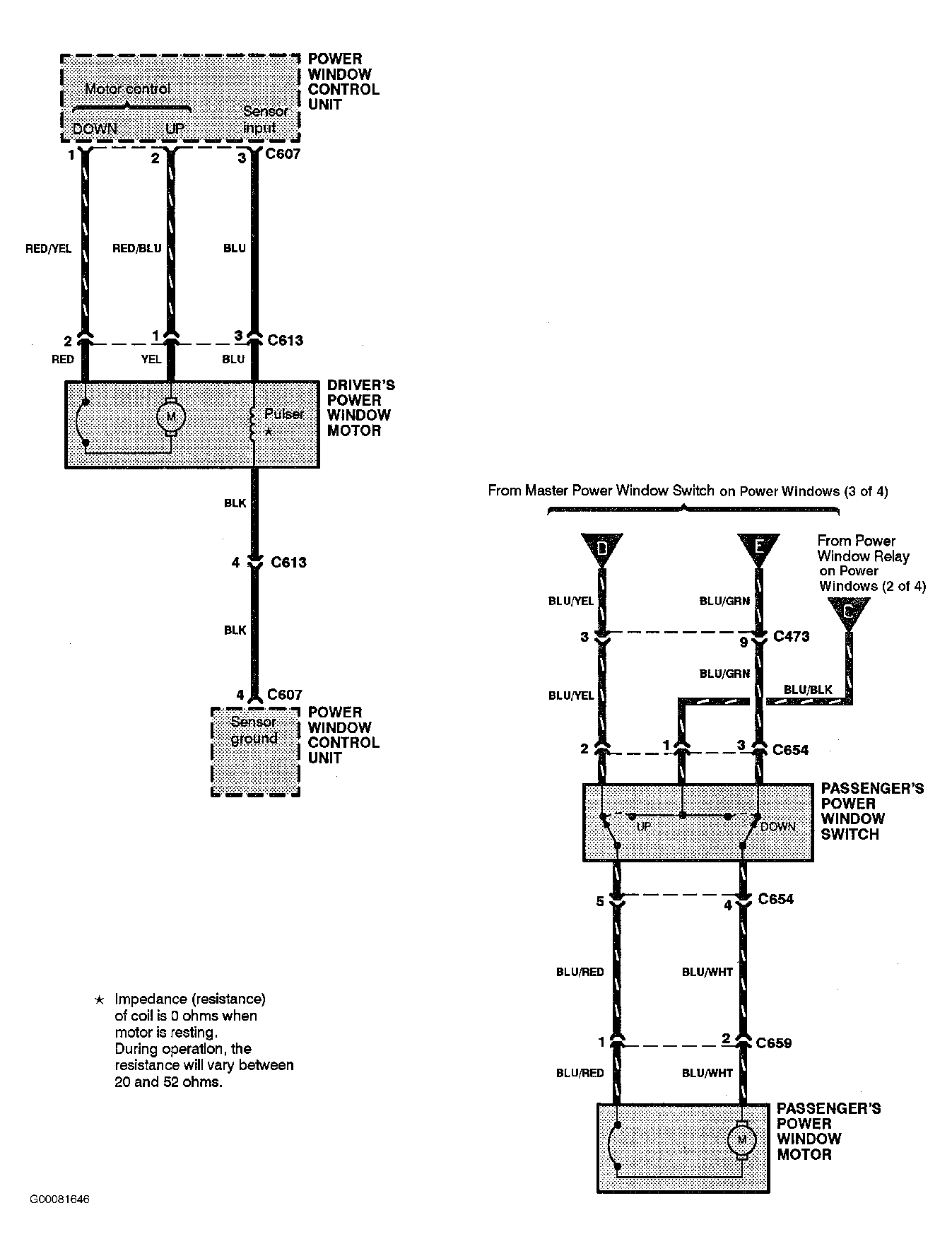

Fig 2: Power Windows Wiring Diagram (1993 - 2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

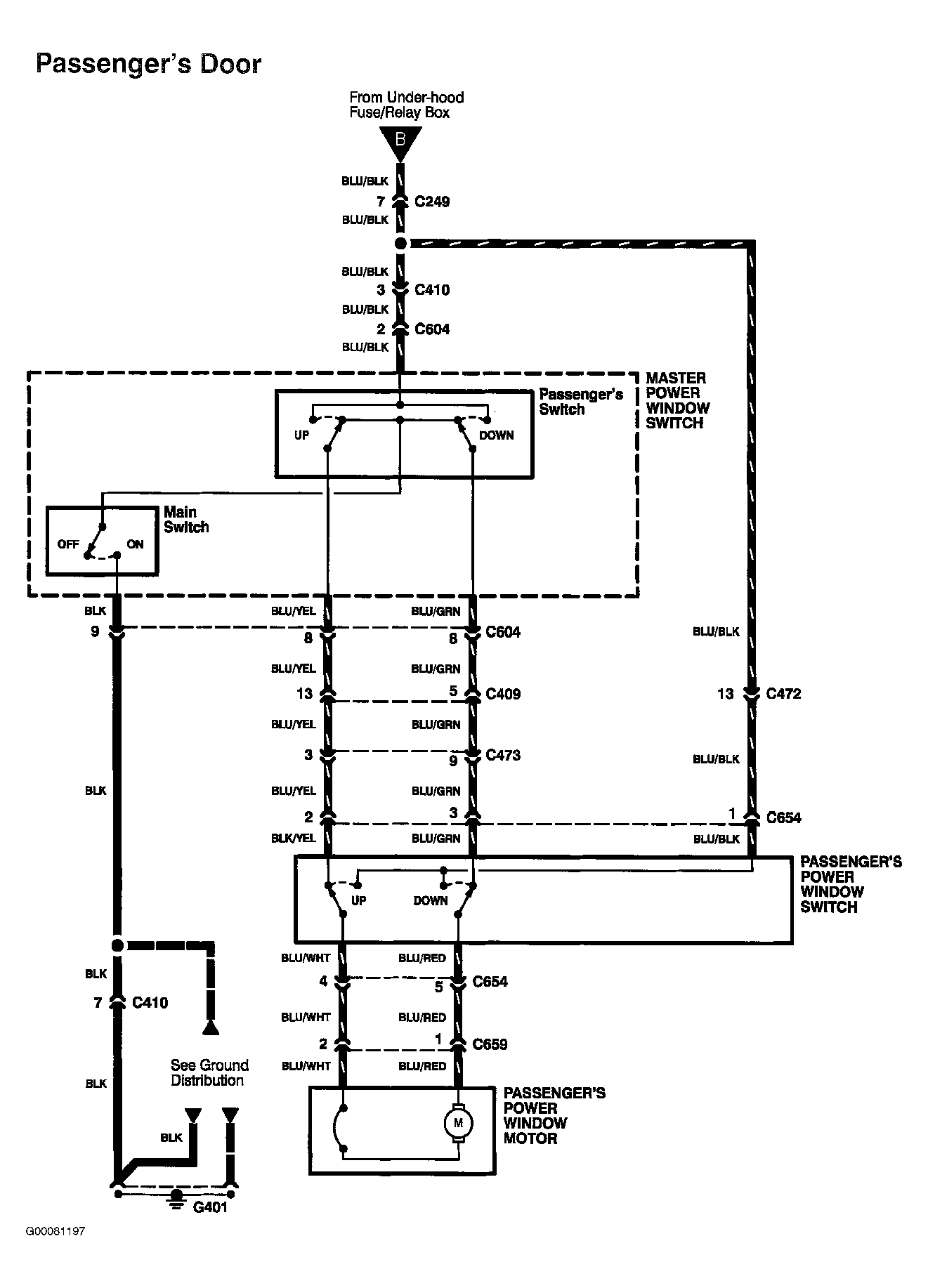

Fig 3: Power Windows Wiring Diagram (1993 - 3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

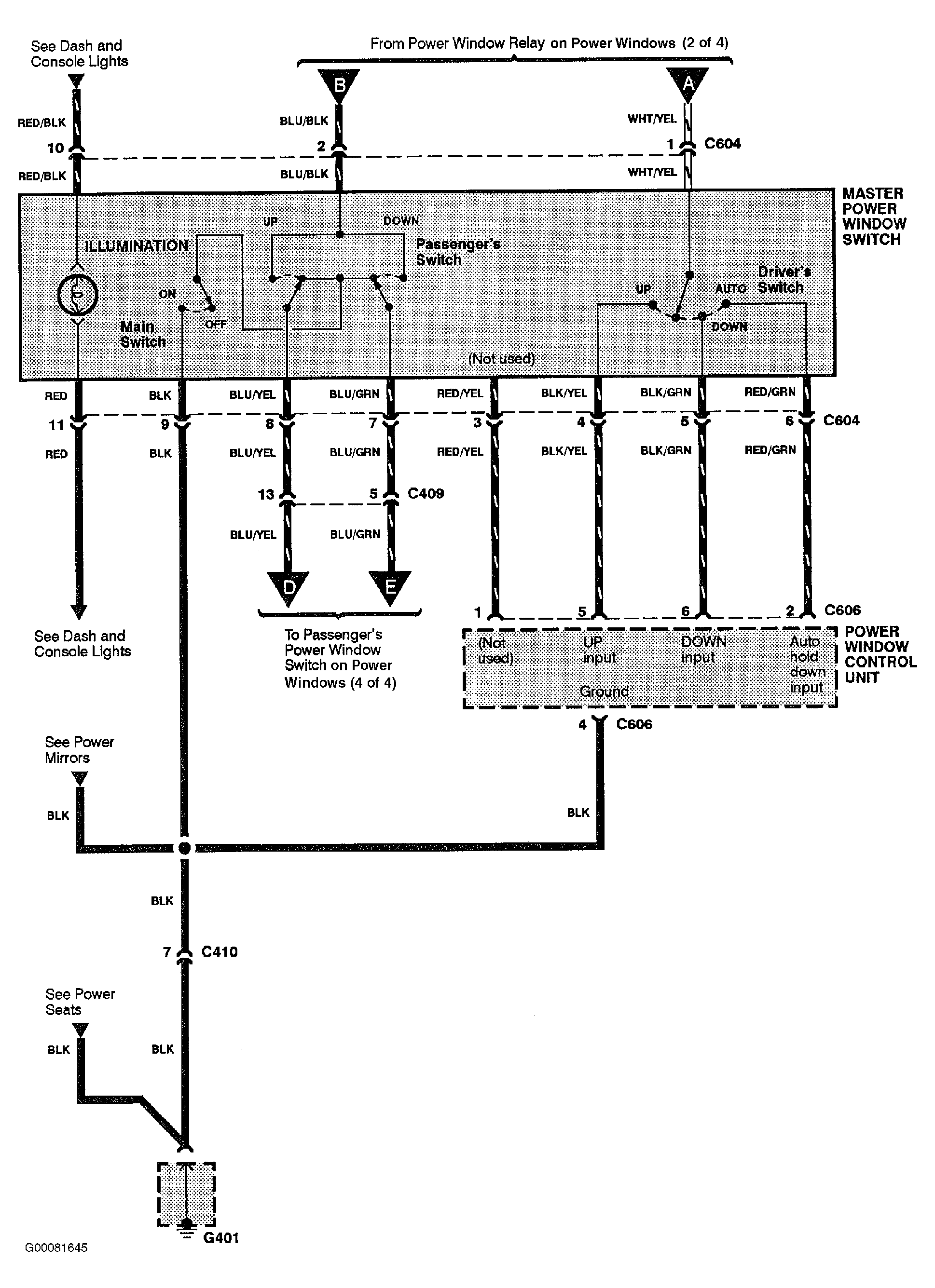

Fig 4: Power Windows Wiring Diagram (1993 - 4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

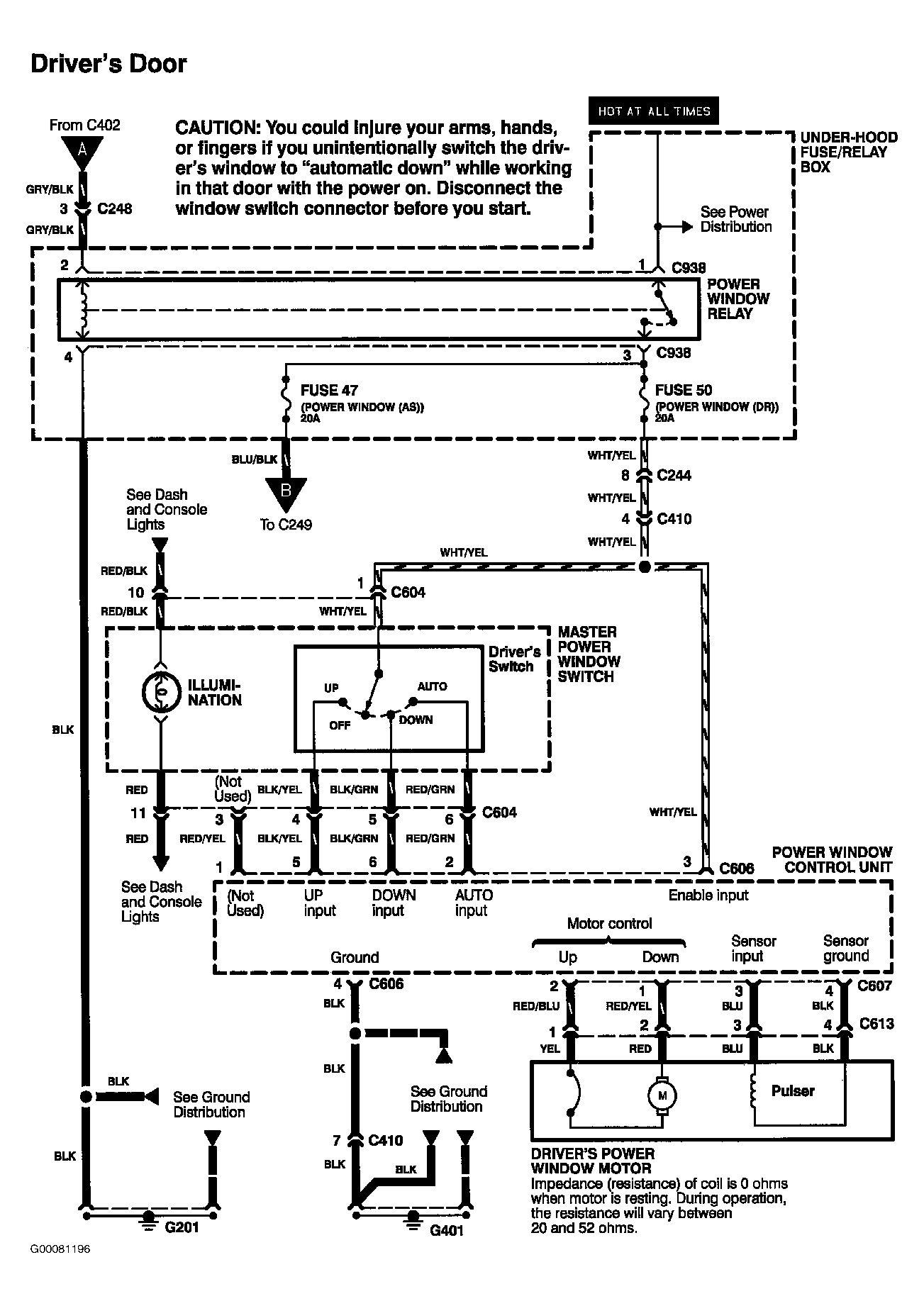

Fig 5: Power Windows Wiring Diagram (1994 - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

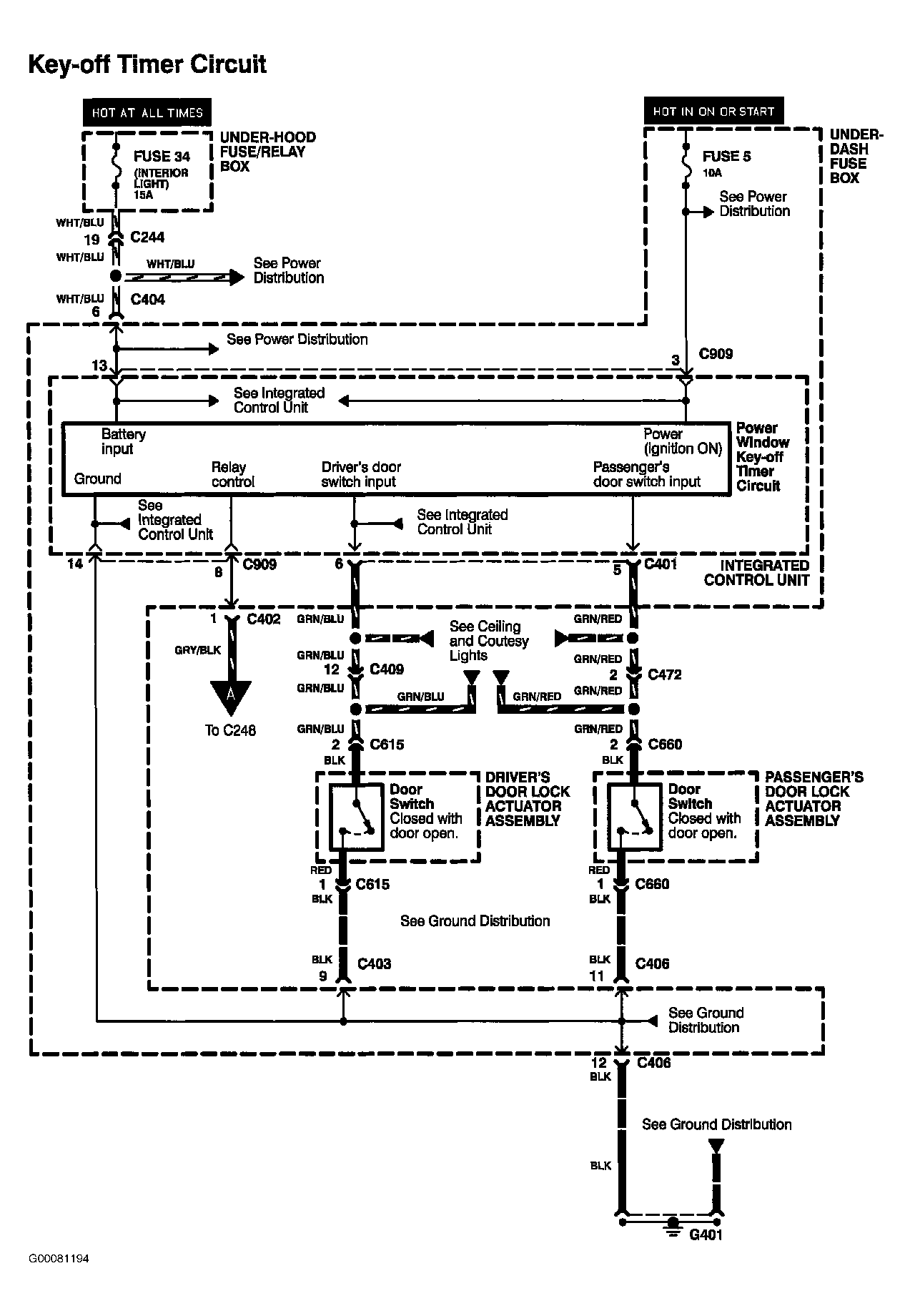

Fig 6: Power Windows Wiring Diagram (1994 - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

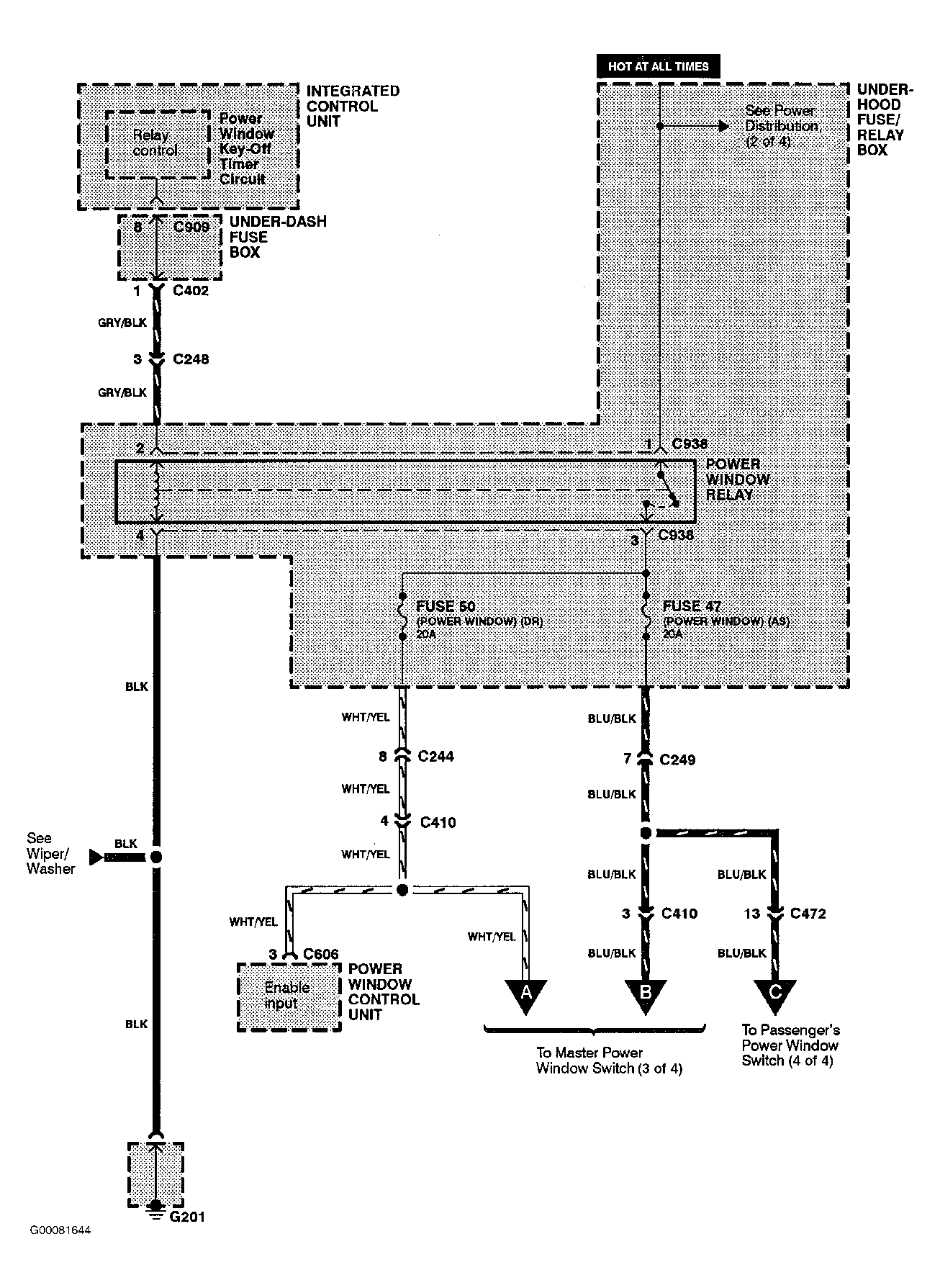

Fig 7: Power Windows Wiring Diagram (1994 - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
