Fail-Safe Relay

Check for continuity between terminals "A" and "B". See Fig 1 . There should be no continuity. Connect a 12-volt battery across terminals "C" and "D". There should now be continuity between terminals "A" and "B".

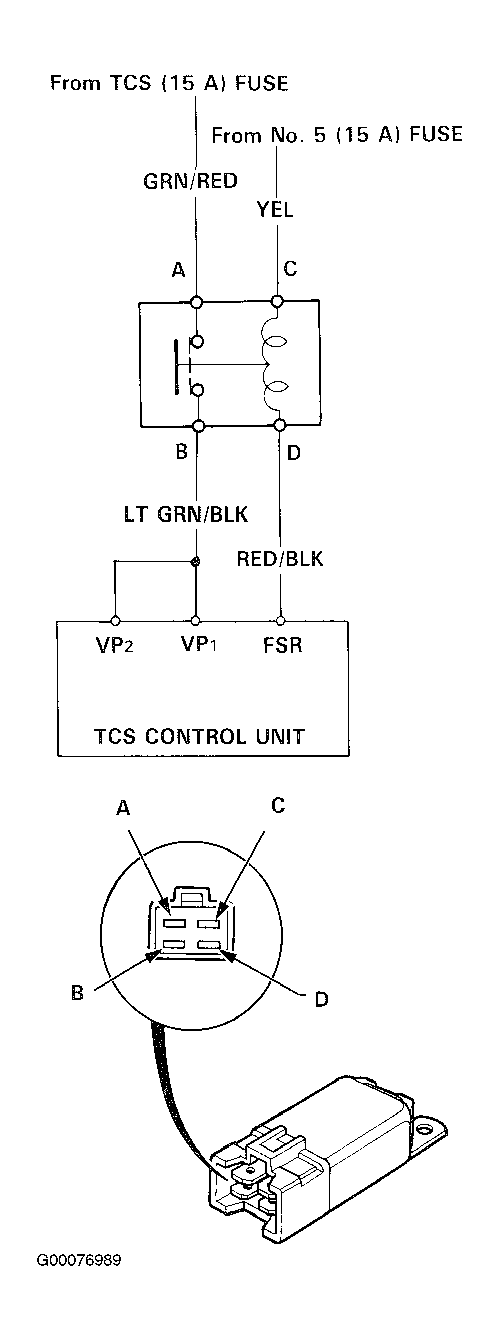

Fig 1: Identifying Fail-Safe Relay Circuits & Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
