Home
>>
Acura
>>
1994
>>
Legend GS, Standard
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Memory Systems
>>
Flow Charts
>>
Flow Chart No. 26
Flow Chart No. 26

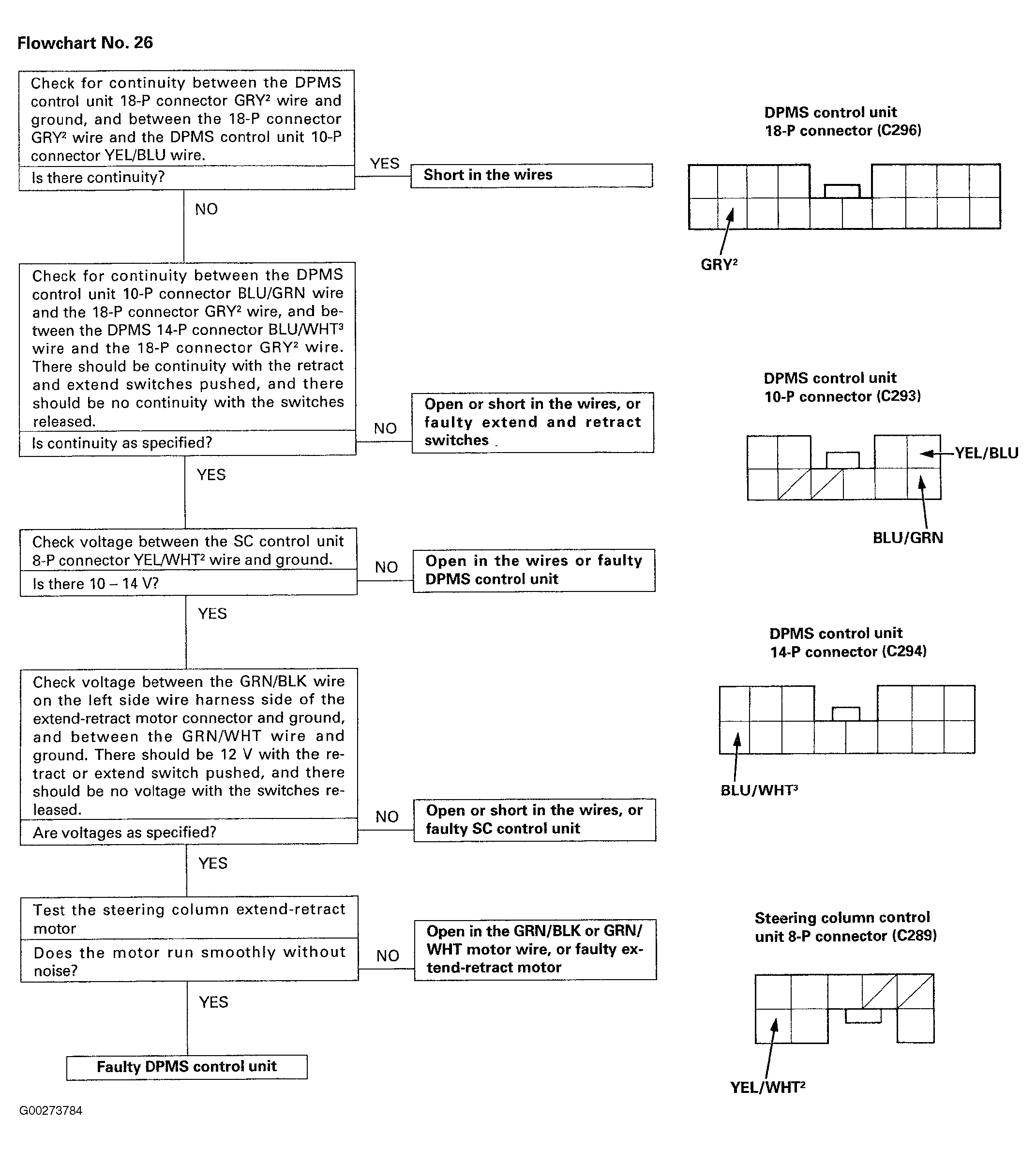

Fig 1: Flow Chart No. 26
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
