TCS Function Test

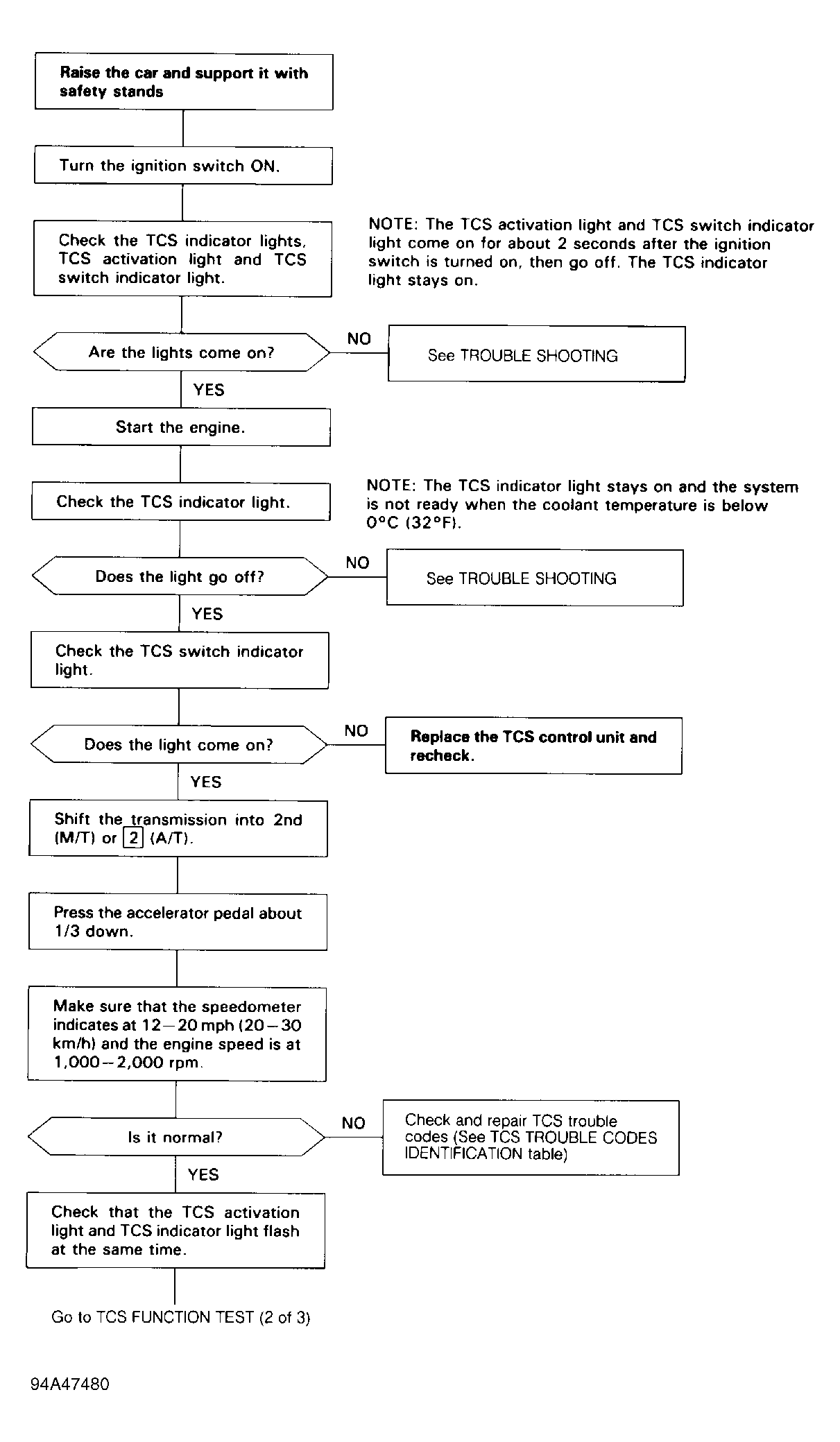

Fig 1: TCS Function Test (1 Of 3)
G94A47480Courtesy of AMERICAN HONDA MOTOR CO., INC.

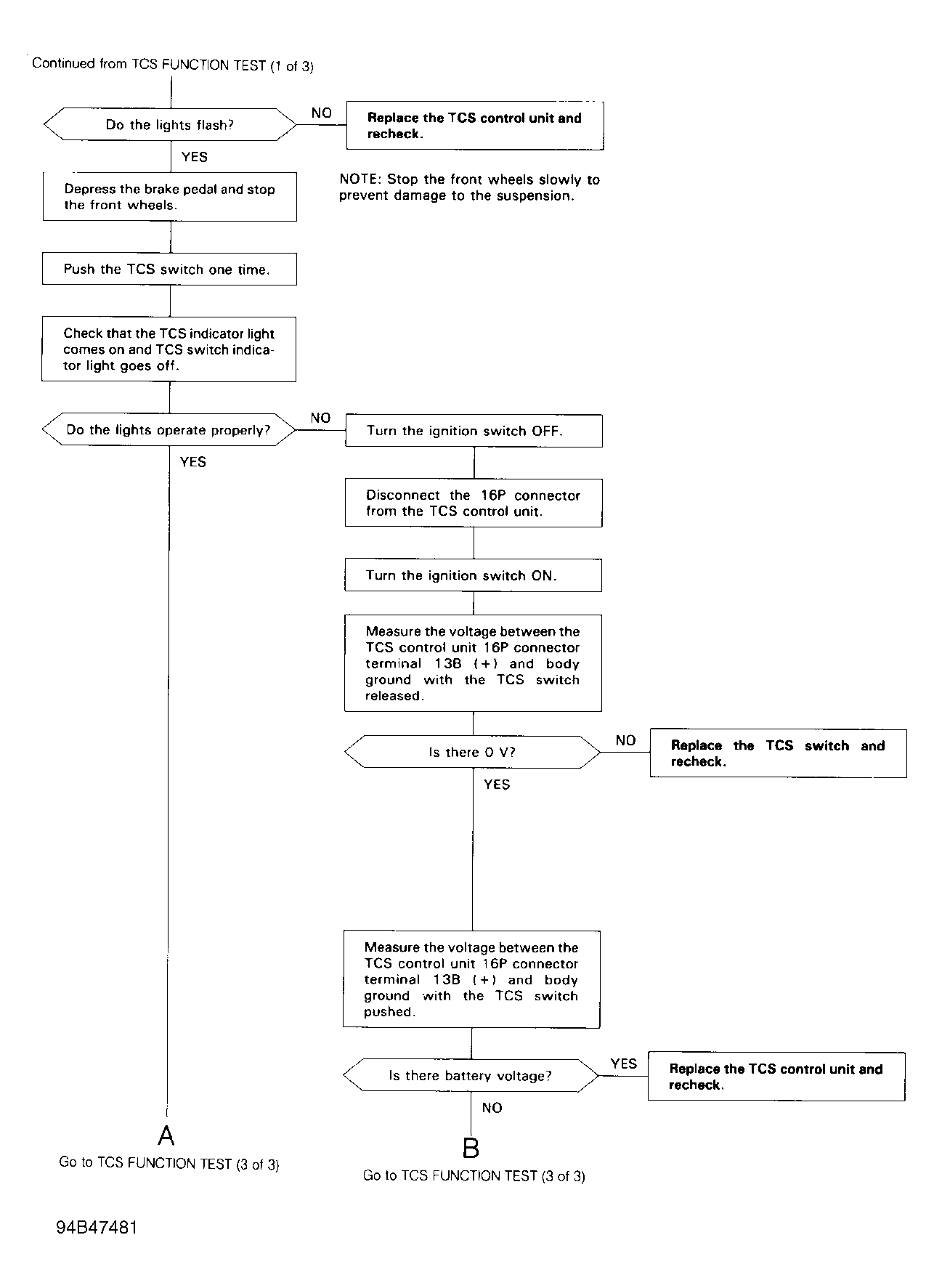

Fig 2: TCS Function Test (2 Of 3)
G94B47481Courtesy of AMERICAN HONDA MOTOR CO., INC.

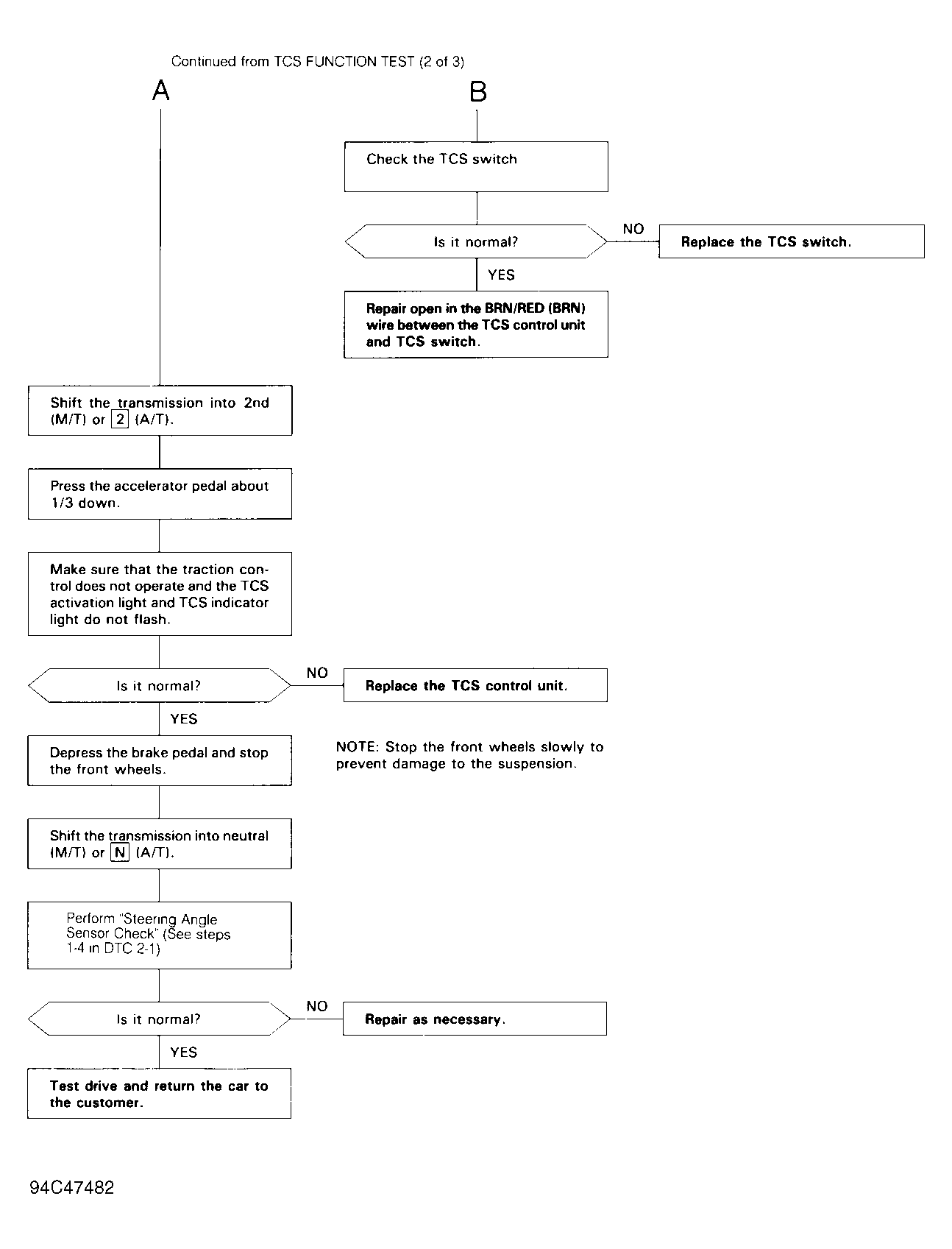

Fig 3: TCS Function Test (3 Of 3)
G94C47482Courtesy of AMERICAN HONDA MOTOR CO., INC.
