All Systems

See Figure and Figure for connector terminal identification. For input test, see Fig 1 .

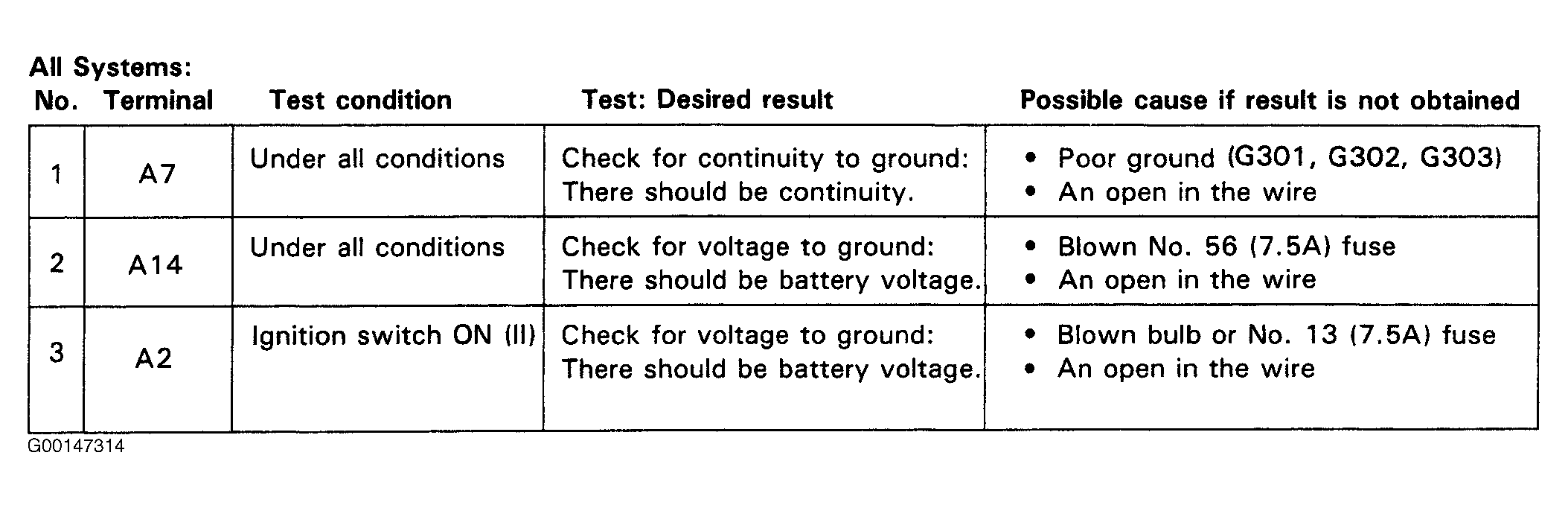

Fig 1: All Systems Input Test

G00147314

Courtesy of AMERICAN HONDA MOTOR CO., INC.
